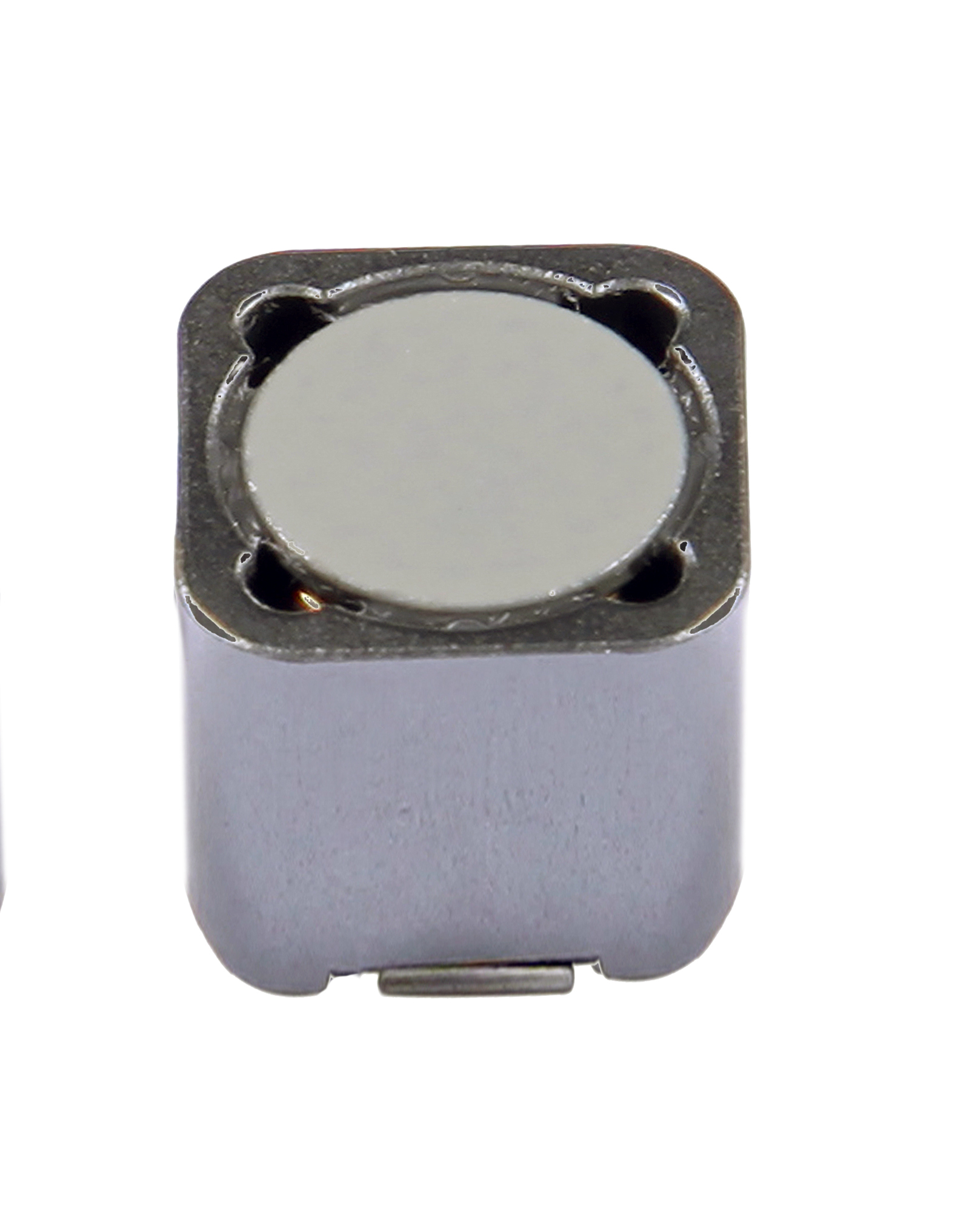

Coupled Inductors
Image |
Type |
Dimensions |
Inductance |
DCR |
Isat |
Irms2 |
Specification |
L*W*H(mm) |
(uH) |
(mOHM) |
(A) |
(A) |
|
SC01-1206 |
12.2x12.2x6.0 |
4.7~1000 |
36~3060 |
10.3~0.69 |
4.47~0.49 |
|
SC01-1208 |
12.2x12.2x7.8 |
4.7~1000 |
38~2830 |
14.9~1.1 |
4.47~0.52 |
SC01-1514 |
15.5x15.5x14.2 |
2.5~1000 |
12~1250 |
30.5~1.63 |
7.8~0.77 |
