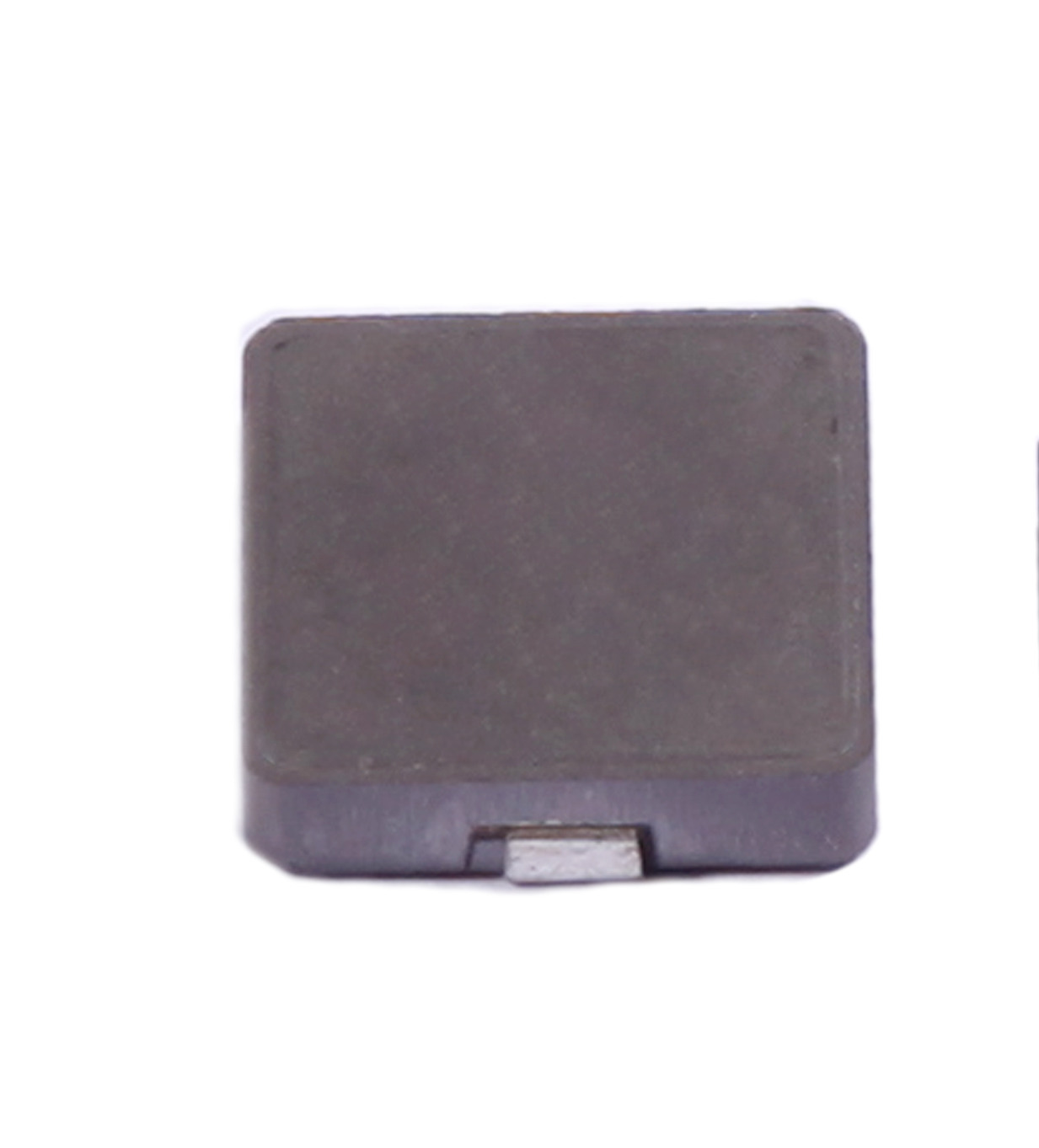

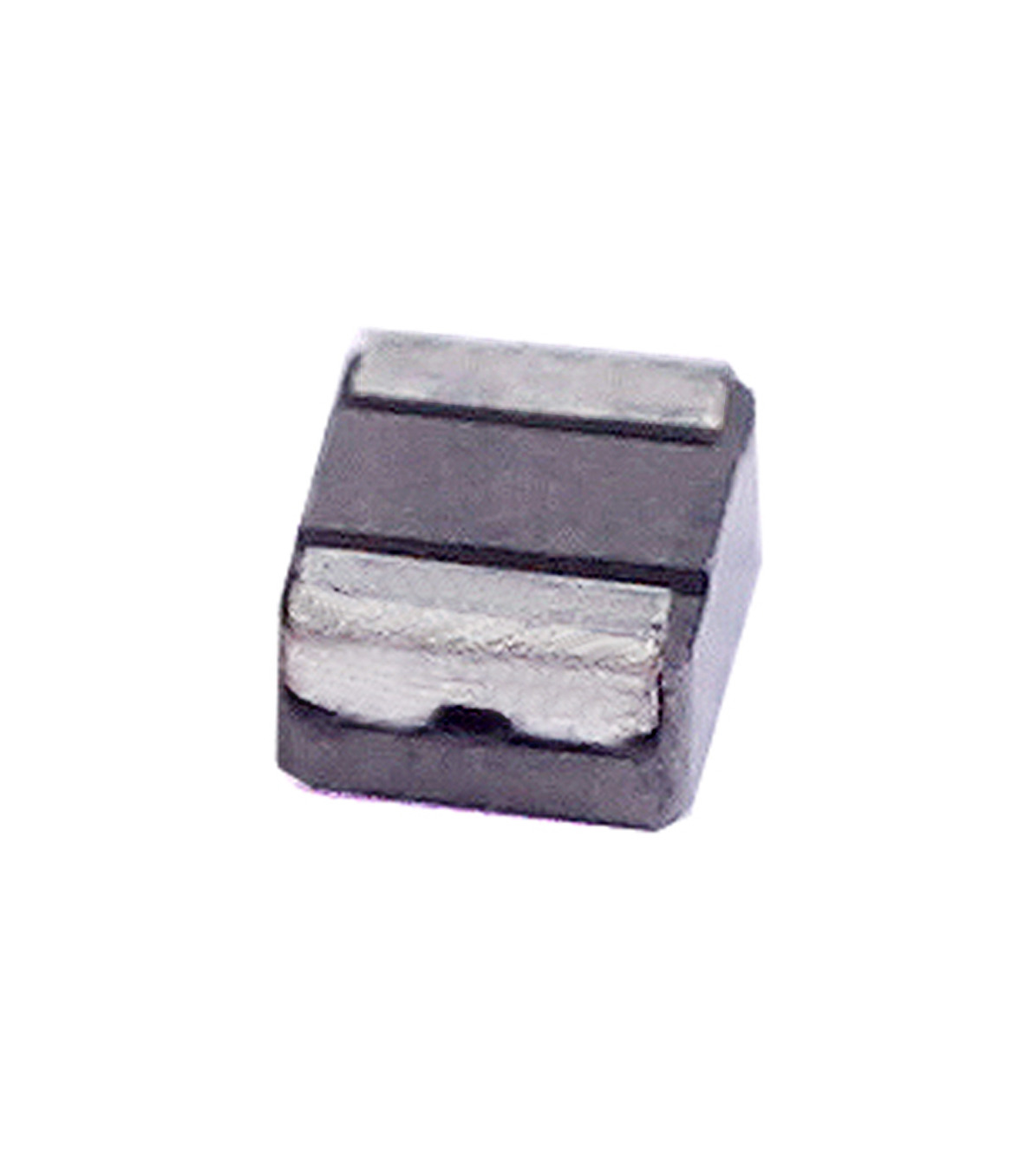

Molded Power Inductor
Type
Dimensions
Inductance
DCR
Isat
Irms
Specification
L*W*H(mm)
(uH)
(mOHM)
(A)
(A)
SP14-057018
5.4x5.2x1.8
0.47~10
9.0~155
15.5~3.0
10.5~2.5
SP14-057030
5.4x5.2x3.0
0.10~10
3.0~125
33.0~3.5
25.0~3.2
SP14-070024
7.0x6.6x2.4
0.22~22
3.0~240
34.0~2.5
21.0~2.0
SP14-070030
7.0x6.6x3.0
0.22~33
3.0~310
34.0~2.5
24.0~2.0
SP14-070040
7.0x6.6x4.0
0.22~22
1.8~125
35.0~4.0
33.0~3.5
SP14-138040
13.3x12.6x4.0
0.68~4.7
3.5~14.5
47.0~18.0
28.0~13.0
SP14-138050
13.3x12.6x5.0
0.68~47
1.55~130
46.5~5.0
33.0~3.0
SP14-138060
13.3x12.6x6.0
4.7~150
9.0~350
24.0~2.7
20.0~2.0
SP15-037012
3.4x3.0x1.2
0.12~10
5.5~360
14.0~1.2
8.0~0.8
SP15-037020
3.4x3.0x2.0
0.22~4.7
10.0~158
13.0~2.8
8.0~2.0
SP15-047012
4.4x4.0x1.2
0.33~3.3
14.5~111
12.0~3.9
8.0~2.4
SP15-047020
4.4x4.0x2.0
0.22~22
8.0~460
17.0~1.5
12.0~1.0
SP16-2010A
2.0x1.6x1.0
0.24~2.2
24.0~197
4.3~1.6
3.5~1.4
SP16-2010B
2.0x1.6x1.0
0.24~2.2
20.5~163
5.4~1.6
4.2~1.6
SP16-2012A
2.0x1.6x1.2
0.24~2.2
21.0~186
4.8~1.65
4.0~1.35
SP16-2012B
2.0x1.6x1.2
0.24~2.2
19.0~144
5.6~1.65
4.4~1.6
SP16-2510A
2.5x2.0x1.0
0.22~2.2
18.0~121
6.0~2.1
5.22~1.62
SP16-2510B
2.5x2.0x1.0
0.22~2.2
17.0~105
7.0~2.2
5.5~1.8
SP16-2512A
2.5x2.0x1.2
0.22~2.2
15.0~105
7.0~2.2
6.2~2.0
SP16-2512B
2.5x2.0x1.2
0.22~2.2
13.0~90
7.0~2.3
8.0~2.0
