CHIKARA
>
Product Centre
>
SMD Power Inductor
SMD Power Inductor
Type
Dimensions
Inductance
DCR
Isat
Irms
Specification
L*W*H(mm)
(uH)
(mOHM)
(A)
(A)

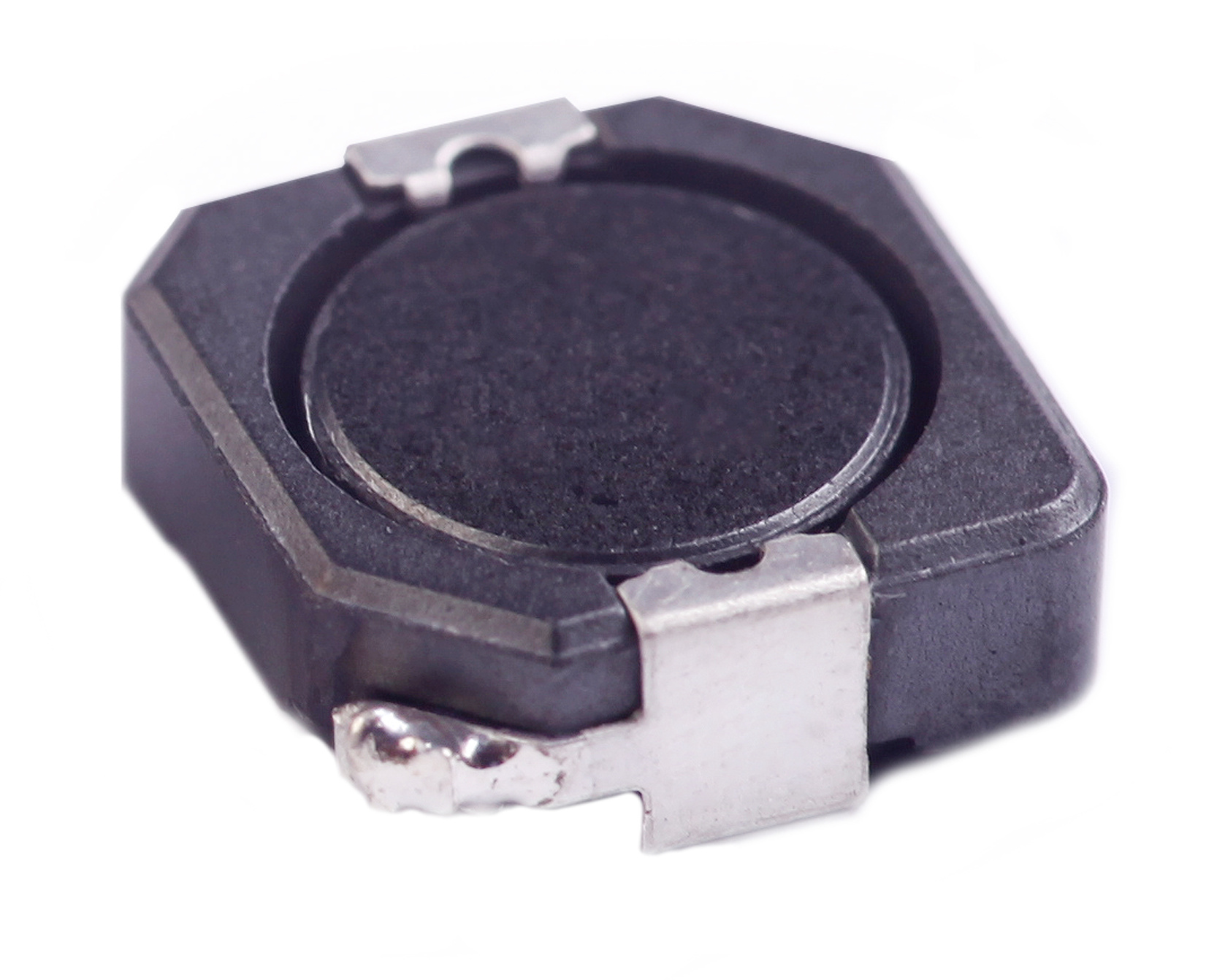

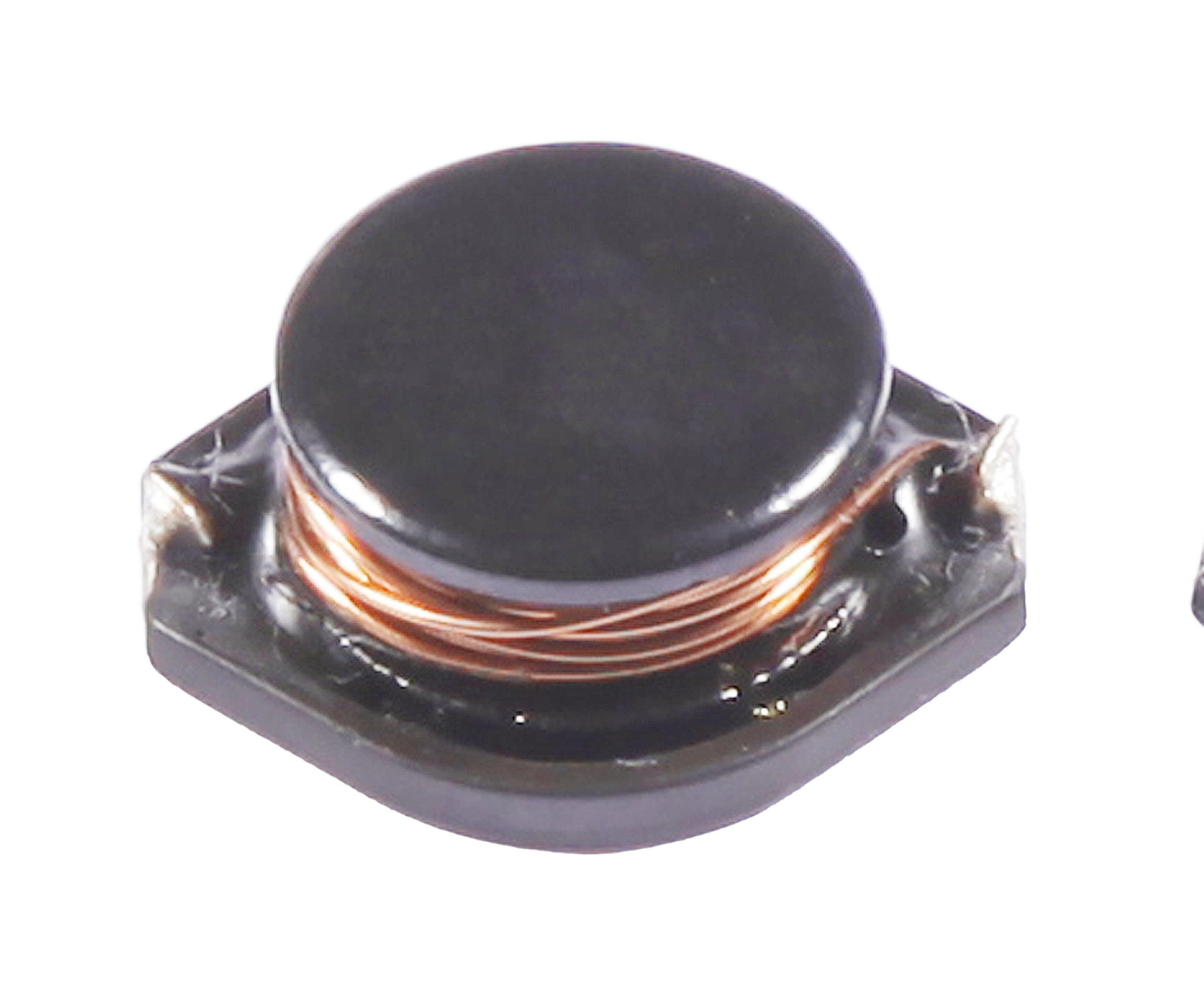

SP01-0603
6.2x6.3x3.0
2.5~100
17.6~520
2.6~0.4
2.6~0.4
SP01-1003
10.3x10.5x3.0
0.8~150
5.7~871
9.0~0.7
6.5~0.51
SP01-1004
10.3x10.5x4.0
1.0~1000
6.0~2853
12.1~0.46
10~0.45
SP01-1005
10.3x10.5x5.0
0.68~330
5.5~815
13.5~0.75
9.5~0.73

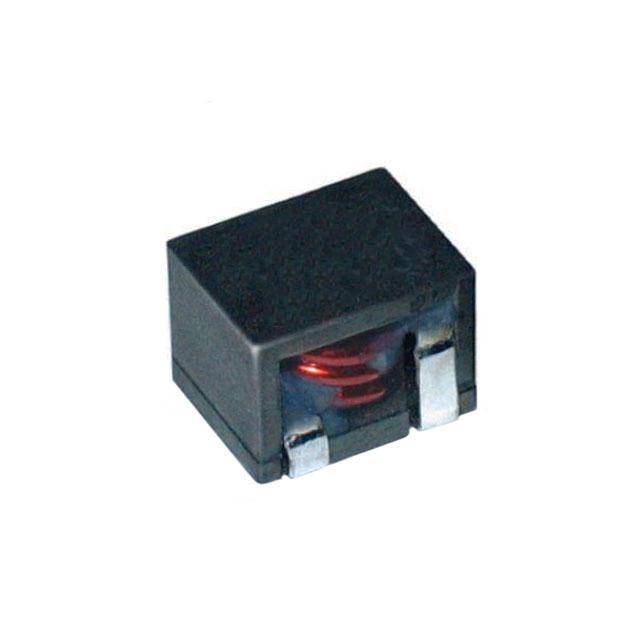

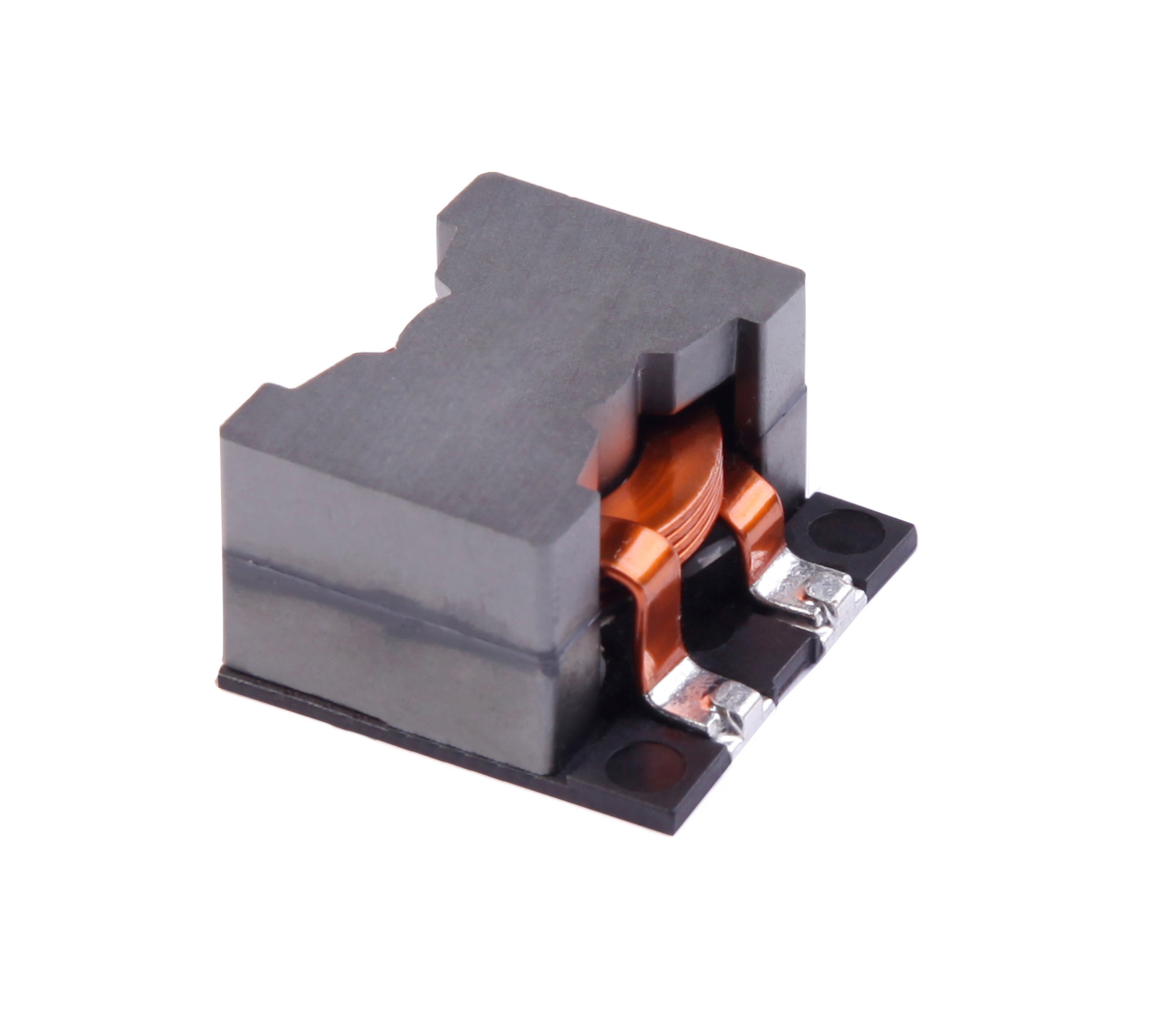

SP02-1108
9.2x10.8x8.0
0.30~6.8
0.68~7.7
42.5~8.5
47~9.6

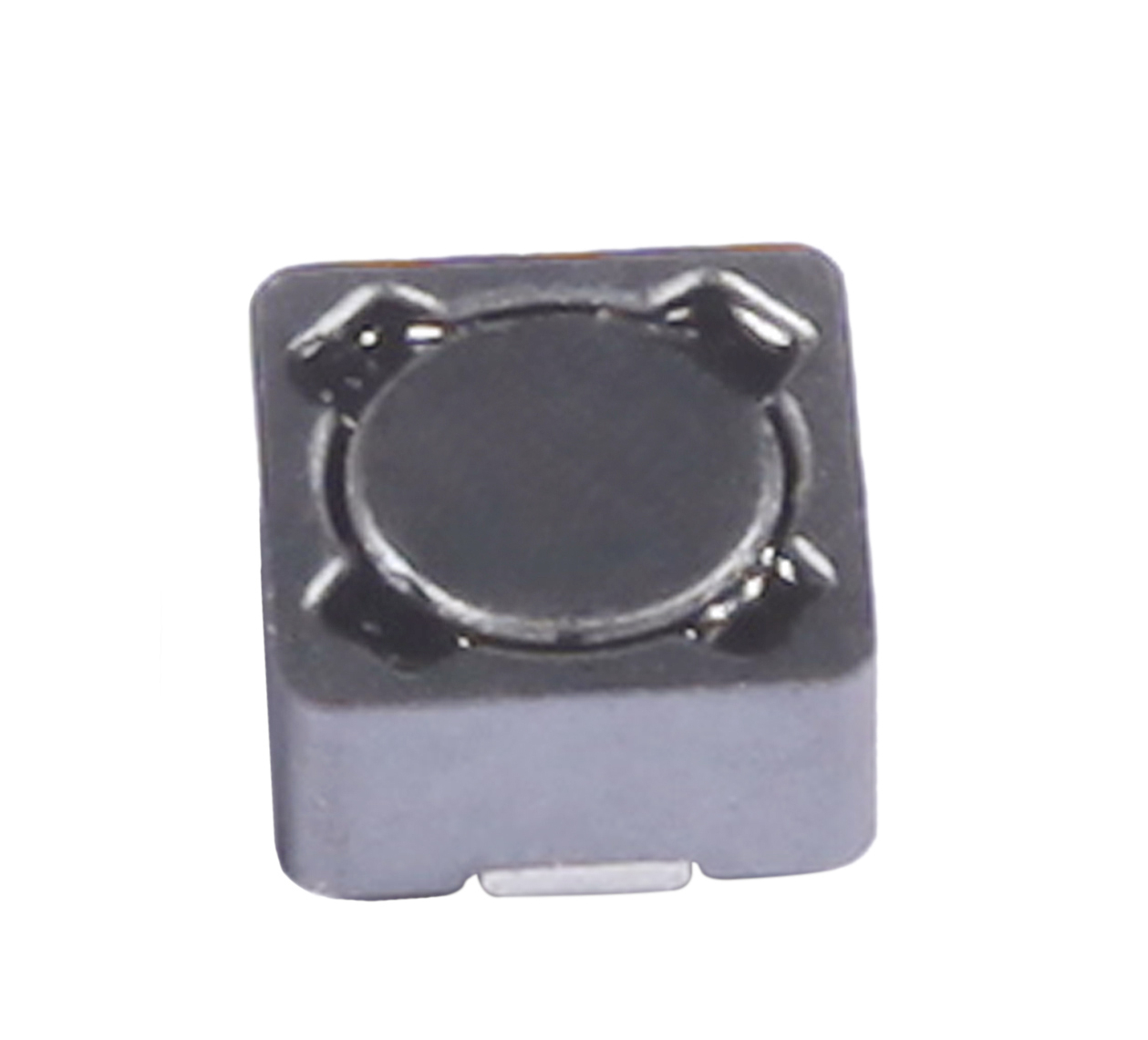

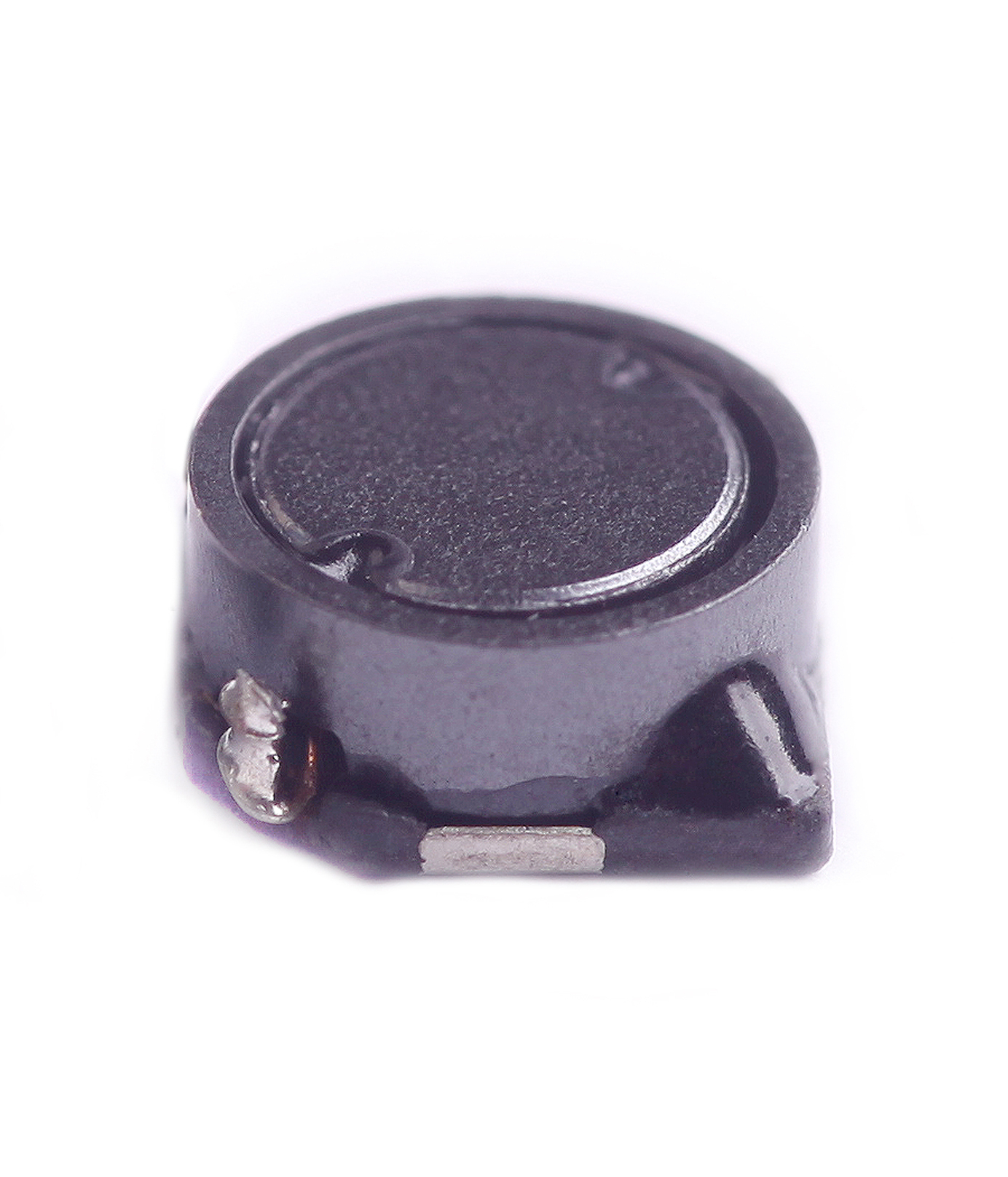

SP03-1006
9.8x9.8x5.8
1.5~2200
18~7600
10~0.36
6.4~0.16
SP03-1307
13.5x13.5x7.3
1.5~1000
5.0~1600
20~1.0
9.5~0.65
SP04-0703
7.3x7.3x3.55
1.0~1000
13.2~5642
7.97~0.25
5.28~0.26
SP04-0704
7.3x7.3x4.35
1.0~1000
12.9~5057
10.2~0.31
5.39~0.27
SP05-1206
12.3x12.3x6.0
1.0~120000
3.1~195000
23.6~0.069
15~0.06
SP05-1208
12.3x12.3x8.0
1.0~1000
4.07~2158
40~1.14
15.5~0.61

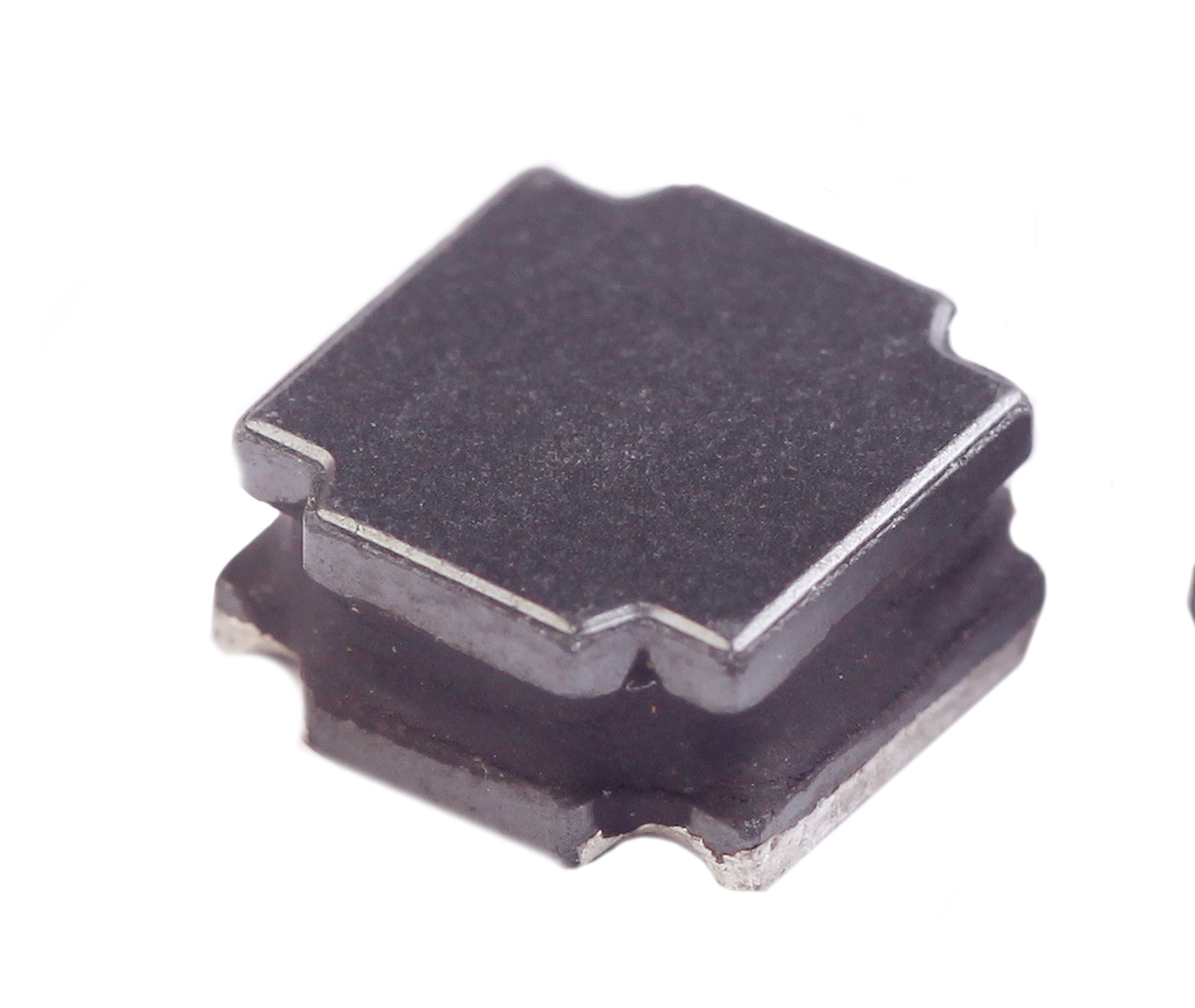

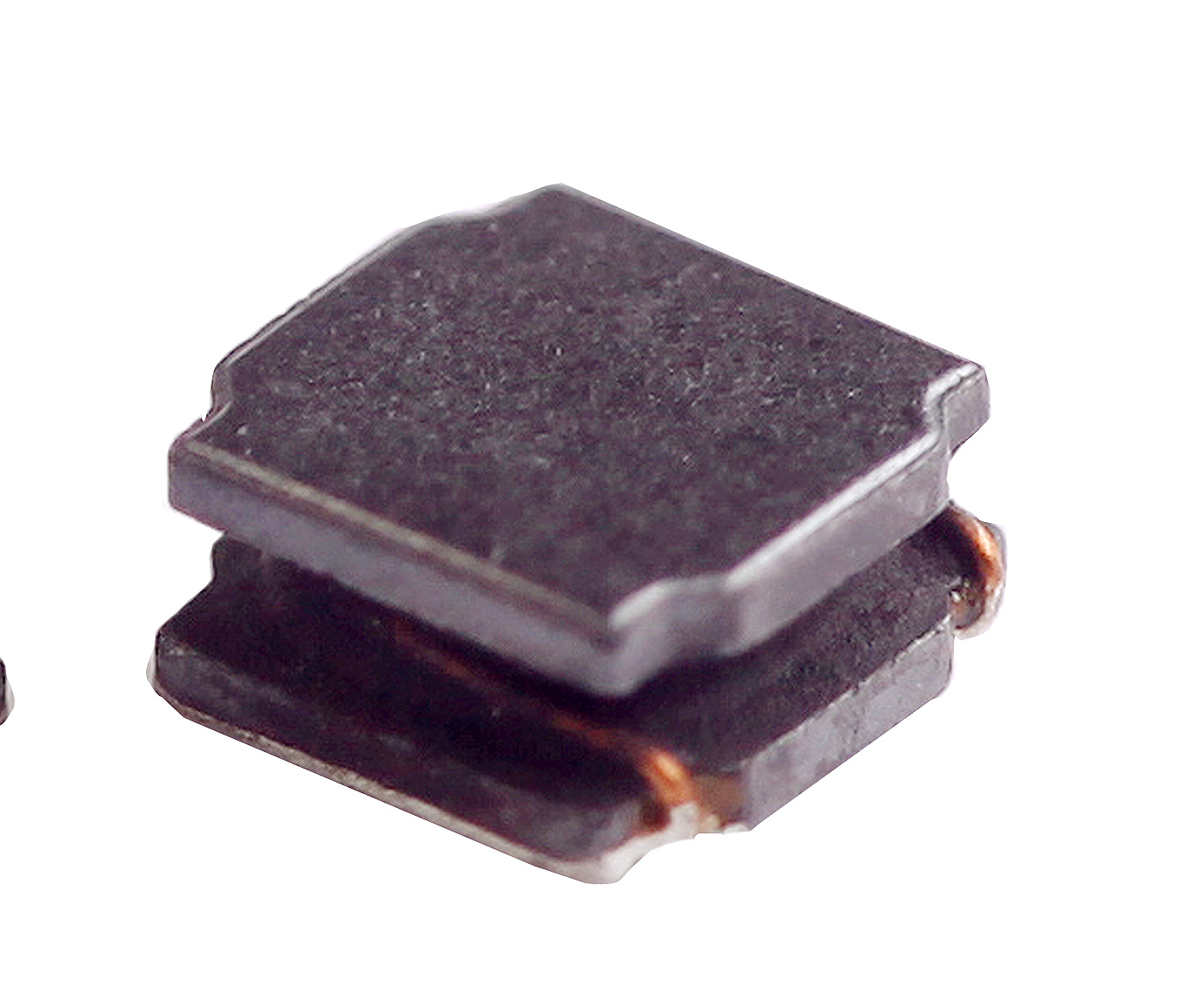

SP06-030012
3.0x3.0x1.2
0.22~100
17~2860
6.0~0.23
3.3~0.29
SP06-030015
3.0x3.0x1.5
0.50~150
30~3800
4.2~0.22
2.8~0.23
SP06-040018
4.0x4.0x1.8
0.47~220
14~4000
5.2~0.30
4.5~0.27
SP06-040020
4.0x4.0x2.0
0.24~100
11~1550
12.5~0.53
5.2~0.43
SP06-040026
4.0x4.0x2.6
1.0~47
24~300
3.8~0.55
3.3~0.90
SP06-040030
4.0x4.0x3.0
0.68~680
10~7580
8.0~0.23
5.1~0.19
SP06-050020
5.0x5.0x2.0
0.47~200
13~2000
6.7~0.33
5.0~0.45
SP06-050040
5.0x5.0x4.0
1.0~1000
12~6000
8.0~0.25
5.0~0.23
SP06-060020
6.0x6.0x2.0
0.68~47
17~430
7.8~0.90
4.8~0.90
SP06-060028
6.0x6.0x2.8
0.82~1000
12~5800
9.0~0.22
6.0~0.26
SP06-060045
6.0x6.0x4.5
0.47~1500
6~6500
16.5~0.27
6.6~0.24
SP06-080040
8.0x8.0x4.0
0.82~1000
8~2800
16.0~0.50
6.9~0.40
SP07-030012
3.0x3.0x1.2
1.5~10
64~395
4.1~1.45
2.9~1.15
SP07-040020
4.0x4.0x2.0
0.22~10
11~180
22~3.50
9.5~2.35

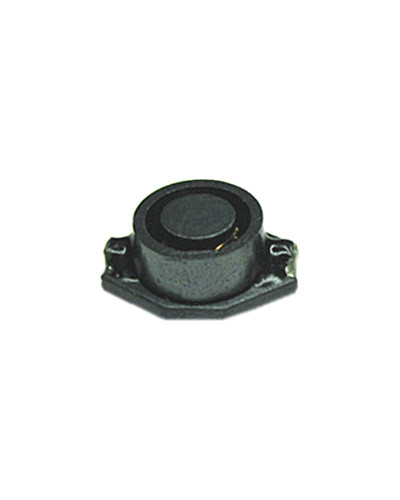

SP08-1304
12.95x9.4x3.5
10~1000
110~8400
2.4~0.1
2.0~0.05
SP08-1305
12.95x9.4x5.21
1.0~1000
9.0~3000
9.0~0.3
6.8~0.3
SP08-1311
12.95x9.4x11.43
10~1000
40~2000
8.0~0.8
3.5~0.10
SP08-1907
18.54x15.24x7.11
1.0~1000
9.0~1800
20~1.0
8.6~0.56

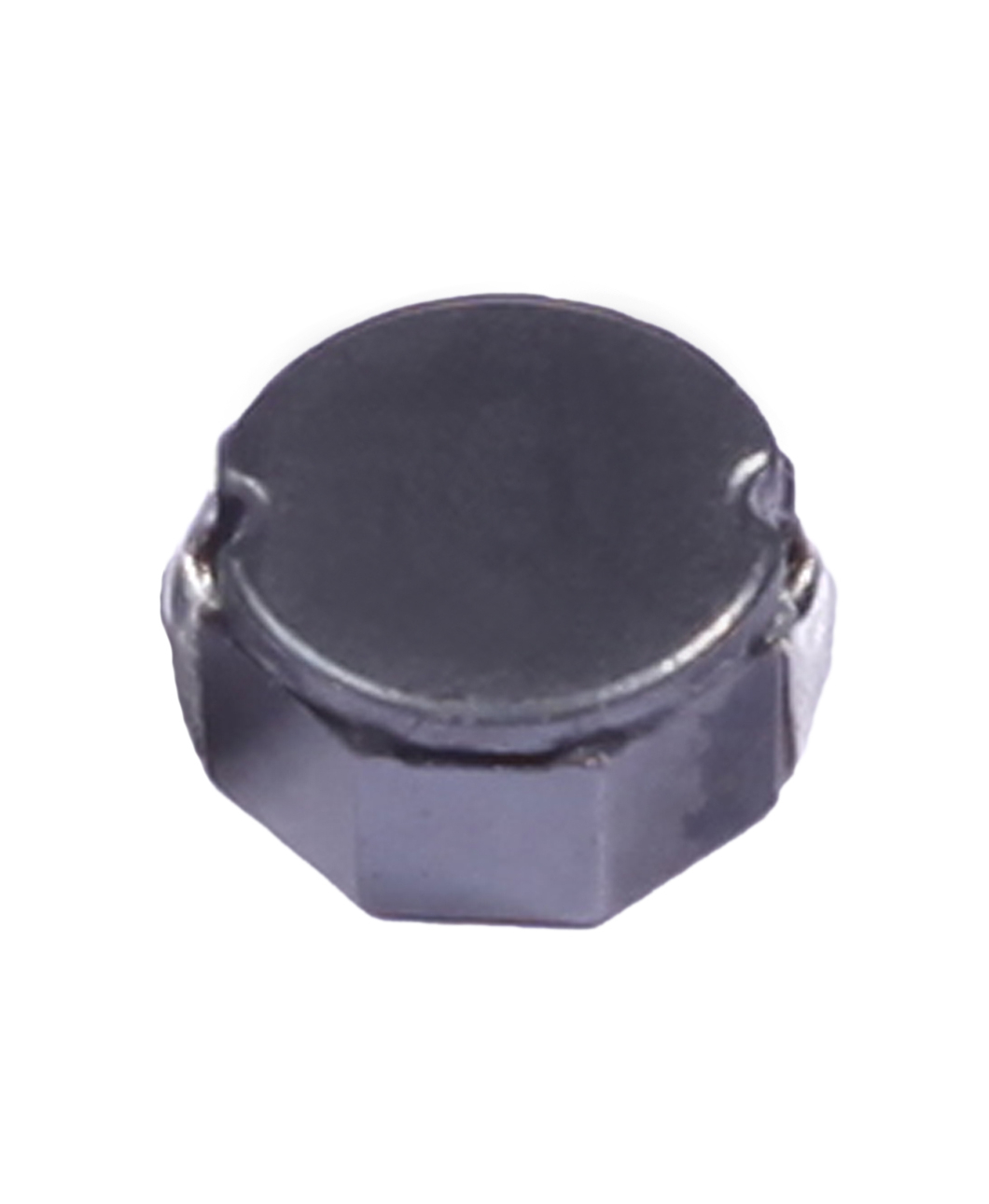

SP09-8028
8.0x8.0x3.1
2.5~220
22~1120
5.0~0.55
4.8~0.50
SP09-8038
8.0x8.0x4.0
1.8~100
15.6~410
7.0~1.05
6.8~0.88
SP09-8043
8.0x8.0x4.5
1.2~100
12.2~360
8.0~1.3
6.2~0.8
SP09-8058
8.0x8.0x6.0
2.8~100
15~175
4.7~0.8
6.9~1.4

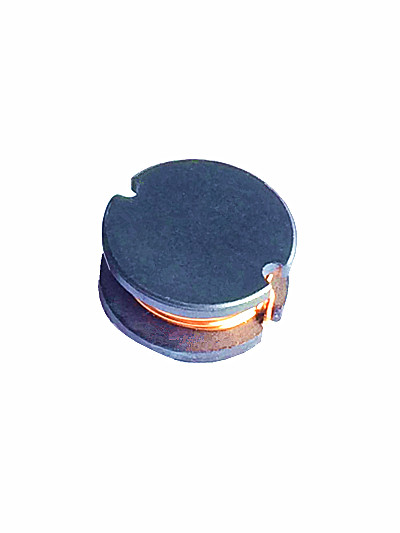

SP10-060028
6.2x6.2x3.0
4.7~100
36~620
1.6~0.42
2.5~0.64
SP10-060045
6.2x6.2x4.8
1.5~22
16~82
4.0~1.1
4.1~1.8
SP10-070032
7.2x7.2x3.4
3.3~1000
23~4780
1.9~0.13
1.9~0.13
SP10-070045
7.2x7.2x4.8
3.3~1000
20~2280
2.5~0.14
2.3~0.25
SP10-101045
10.4x10.4x4.8
3.3~1500
16~3400
4.9~0.22
3.7~0.26
SP10-101065
10.4x10.4x6.8
1.5~22
7~45
10.7~2.7
6.8~2.4
SP10-125065
12.8x12.8x6.85
2.0~150
11.7~273
10~1.0
6.2~1.2
SP11-130051
9.4x12.95x5.08
1.0~47
21~472
5.6~1.0
5.0~0.8
SP11-185076
15.24x18.54x7.62
10~1000
40~2010
8.0~0.8
3.9~0.53

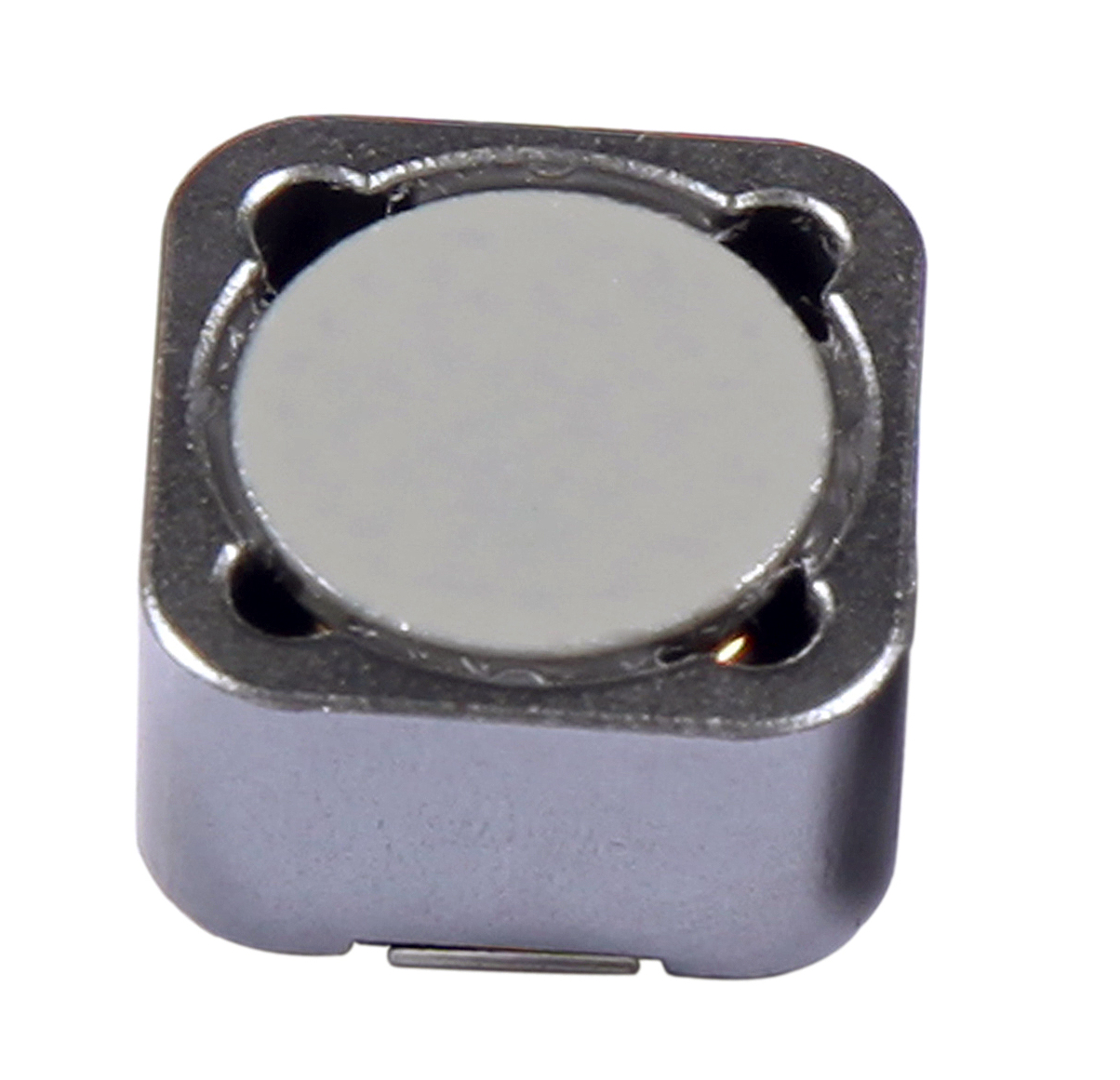

SP12-1508
15x15x8.6
10~1000
14~990
14.7~1.4
7.4~0.86
SP12-1514
15x15x14.5
2.5~1000
7.0~625
30.5~1.63
7.8~0.77
SP13-2816A
27.9x27.9x15.9
1.5~33
1.65
100~2.0
30
SP13-2816B
27.9x27.9x15.9
2.2~33
2.05
100~4.0
30
SP13-2820A
27.9x27.9x20
3.3~470
2.75~88
87~4.3
31~4.5
