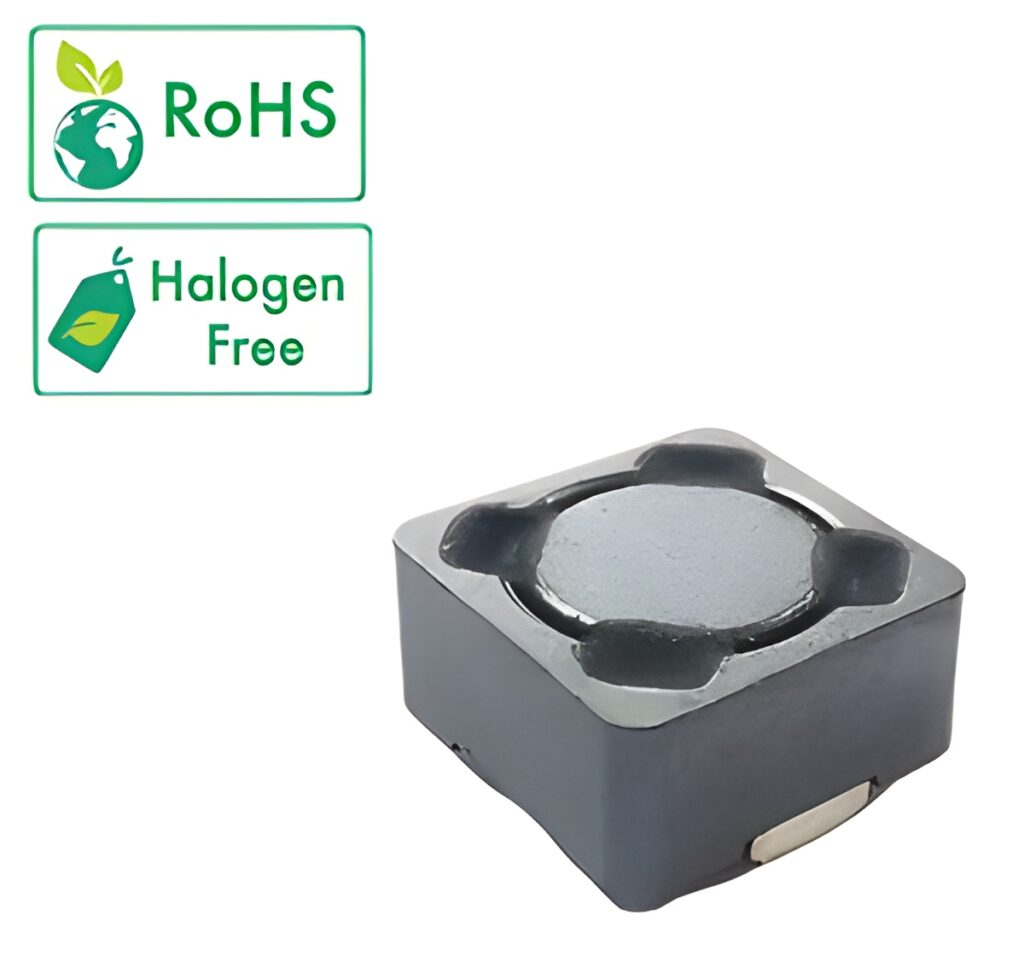

Russian SP15-175070 Type
产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-1750701R0M | 1.0±20% | 1.60 | 2.00 | 70.0 | 52.0 | 37 |  |
| SP15-1750701R5M | 1.5±20% | 2.00 | 2.50 | 65.0 | 47.0 | 30 | |
| SP15-1750702R2M | 2.2±20% | 2.40 | 2.90 | 62.0 | 43.5 | 23 | |
| SP15-1750703R3M | 3.3±20% | 3.50 | 4.00 | 54.0 | 28.0 | 18 | |
| SP15-1750704R7M | 4.7±20% | 4.80 | 5.50 | 50.0 | 25.0 | 16 | |
| SP15-1750705R6M | 5.6±20% | 5.80 | 7.05 | 45.0 | 21.0 | 12 | |
| SP15-1750706R8M | 6.8±20% | 8.40 | 9.20 | 39.0 | 19.0 | 11 | |
| SP15-1750708R2M | 8.2±20% | 9.60 | 10.8 | 31.0 | 18.0 | 10 | |
| SP15-175070100M | 10±20% | 11.8 | 13.0 | 29.0 | 16.5 | 9 | |
| SP15-175070150M | 15±20% | 17.8 | 20.5 | 27.0 | 12.5 | 7 | |
| SP15-175070220M | 22±20% | 25.1 | 26.5 | 23.0 | 12.0 | 6 | |
| SP15-175070330M | 33±20% | 38.0 | 44.0 | 20.0 | 10.7 | 5 | |
| SP15-175070470M | 47±20% | 48.0 | 55.0 | 16.0 | 8.7 | 4 | |
| SP15-175070560M | 56±20% | 54.0 | 62.0 | 15.0 | 7.8 | 3 | |
| SP15-175070680M | 68±20% | 68.0 | 80.0 | 13.0 | 7.0 | 2 | |
| SP15-175070820M | 82±20% | 87.0 | 100 | 12.5 | 5.7 | 2 | |
| SP15-175070101M | 100±20% | 102 | 118 | 12.0 | 5.3 | 2 | |
