Russian DCM01-1921Type

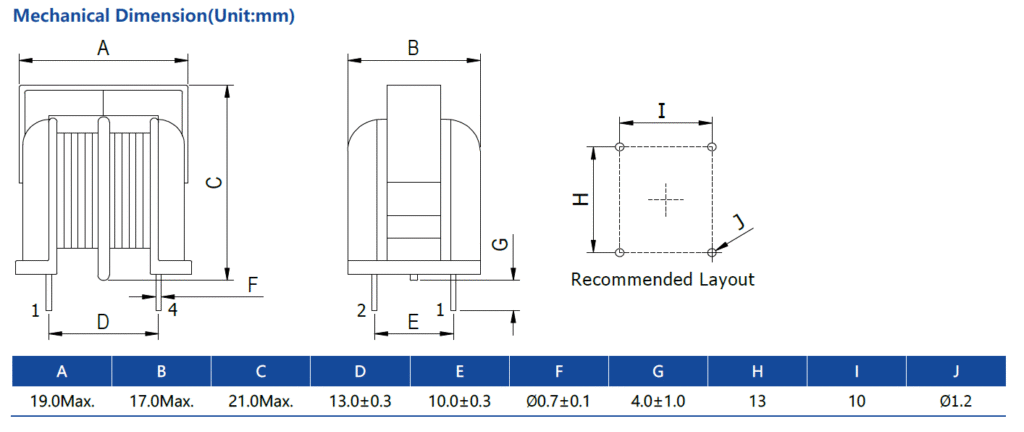

产品尺寸
产品参数
| Part Number | Inductance L0(uH)Min. | DCR | Rated Current | Rated Voltage | Hi-Pot (Coil - Coil) | |
|---|---|---|---|---|---|---|
| (Ω)Max. | (A)Max. | (V/ac)Max. | ||||
| DCM01-19210136Y | 13.6 | 1.46 | 0.5 | 300 | 2.5KV AC/2mA/3S |  |
| DCM01-19210072Y | 7.2 | 0.728 | 0.7 | 300 | 2.5KV AC/2mA/3S | |
| DCM01-19210043Y | 4.3 | 0.414 | 1.1 | 300 | 2.5KV AC/2mA/3S | |
| DCM01-19210028Y | 2.8 | 0.277 | 1.3 | 300 | 2.5KV AC/2mA/3S | |
| DCM01-19210016Y | 1.6 | 0.166 | 1.7 | 300 | 2.5KV AC/2mA/3S | |
| DCM01-19210010Y | 1 | 0.11 | 2 | 300 | 2.5KV AC/2mA/3S | |
| DCM01-19210007Y | 0.7 | 0.076 | 2.3 | 300 | 2.5KV AC/2mA/3S | |
