DCM03-2417 Type

首页 » 共模电感 » DCM03-2417 Type

DCM03-2417 Type

特点
■ 低成本和高可靠性
■ 储存温度范围:-55℃ to + 125℃
■ 工作温度范围:-55℃ to + 125℃
（含线圈自身温度上升）
■ 湿度敏感等级: 1
■ 符合RoHs和无卤素标准

产品目录

相关新闻

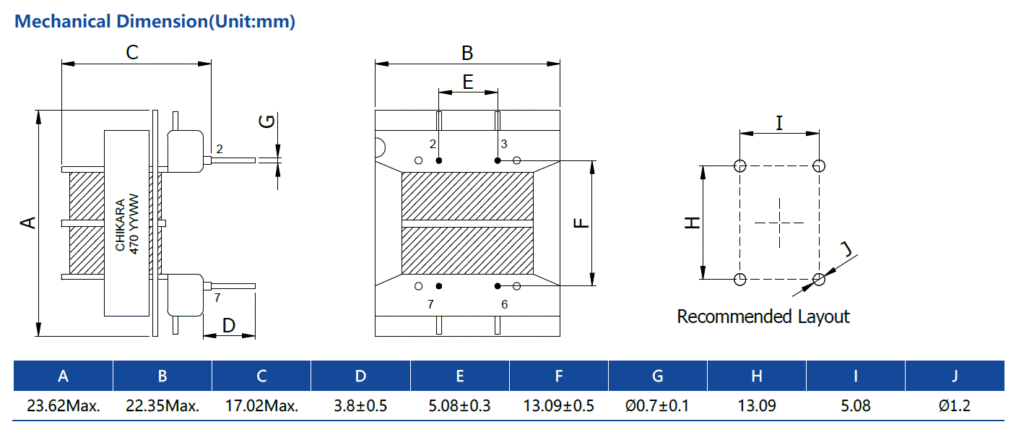

产品尺寸

产品参数


Part Number	Inductance L0(uH)±30%	DCR	Leakage Inductance	Rated Current	Rated Voltage	Hi-Pot (Coil - Coil)	PDF
Part Number	Inductance L0(uH)±30%	(Ω)Max.	(uH)Max.	(A)Max.	(V/ac)Max.	Hi-Pot (Coil - Coil)	PDF
DCM03-2417470N	47	0.016	4.0	3.5	300	2.5KV AC/2mA/3S
DCM03-2417560N	56	0.018	4.0	3.5	300	2.5KV AC/2mA/3S
DCM03-2417680N	68	0.019	5.0	3.5	300	2.5KV AC/2mA/3S
DCM03-2417820N	82	0.023	5.5	2.8	300	2.5KV AC/2mA/3S
DCM03-2417101N	100	0.025	6.0	2.8	300	2.5KV AC/2mA/3S
DCM03-2417121N	120	0.028	6.5	2.8	300	2.5KV AC/2mA/3S
DCM03-2417151N	150	0.03	7.5	2.8	300	2.5KV AC/2mA/3S
DCM03-2417181N	180	0.038	8.0	2.2	300	2.5KV AC/2mA/3S
DCM03-2417221N	220	0.044	9.0	2.2	300	2.5KV AC/2mA/3S
DCM03-2417271N	270	0.051	10	2.2	300	2.5KV AC/2mA/3S
DCM03-2417331N	330	0.058	11	1.7	300	2.5KV AC/2mA/3S
DCM03-2417471N	470	0.078	16	1.4	300	2.5KV AC/2mA/3S
DCM03-2417561N	560	0.091	18	1.4	300	2.5KV AC/2mA/3S
DCM03-2417681N	680	0.115	20	1.1	300	2.5KV AC/2mA/3S
DCM03-2417821N	820	0.131	25	1.1	300	2.5KV AC/2mA/3S
DCM03-2417102N	1000	0.194	35	0.88	300	2.5KV AC/2mA/3S
DCM03-2417122N	1200	0.219	47	0.88	300	2.5KV AC/2mA/3S
DCM03-2417152N	1500	0.278	49	0.7	300	2.5KV AC/2mA/3S
DCM03-2417182N	1800	0.306	59	0.7	300	2.5KV AC/2mA/3S
DCM03-2417222N	2200	0.431	76	0.55	300	2.5KV AC/2mA/3S
DCM03-2417272N	2700	0.469	91	0.55	300	2.5KV AC/2mA/3S
DCM03-2417332N	3300	0.531	101	0.55	300	2.5KV AC/2mA/3S
DCM03-2417392N	3900	0.669	135	0.44	300	2.5KV AC/2mA/3S
DCM03-2417472N	4700	0.76	158	0.44	300	2.5KV AC/2mA/3S
DCM03-2417562N	5600	0.853	196	0.44	300	2.5KV AC/2mA/3S
DCM03-2417682N	6800	1.24	257	0.35	300	2.5KV AC/2mA/3S
DCM03-2417822N	8200	1.4	296	0.35	300	2.5KV AC/2mA/3S
DCM03-2417103N	10000	1.61	362	0.35	300	2.5KV AC/2mA/3S
DCM03-2417123N	12000	1.98	410	0.27	300	2.5KV AC/2mA/3S
DCM03-2417153N	15000	2.24	503	0.27	300	2.5KV AC/2mA/3S
DCM03-2417183N	18000	2.45	602	0.27	300	2.5KV AC/2mA/3S
DCM03-2417223N	22000	2.49	730	0.22	300	2.5KV AC/2mA/3S
DCM03-2417273N	27000	4.6	870	0.17	300	2.5KV AC/2mA/3S
DCM03-2417333N	33000	5.21	1150	0.17	300	2.5KV AC/2mA/3S
DCM03-2417393N	39000	7.19	1300	0.13	300	2.5KV AC/2mA/3S
DCM03-2417473N	47000	7.8	1541	0.13	300	2.5KV AC/2mA/3S
DCM03-2417563N	56000	8.69	1875	0.13	300	2.5KV AC/2mA/3S
DCM03-2417683N	68000	9.69	2254	0.13	300	2.5KV AC/2mA/3S
DCM03-2417823N	82000	13.1	2702	0.1	300	2.5KV AC/2mA/3S
DCM03-2417104N	100000	14.6	3289	0.1	300	2.5KV AC/2mA/3S
DCM03-2417124N	120000	16	3456	0.1	300	2.5KV AC/2mA/3S
