Vietnamese DP01-2627 Type

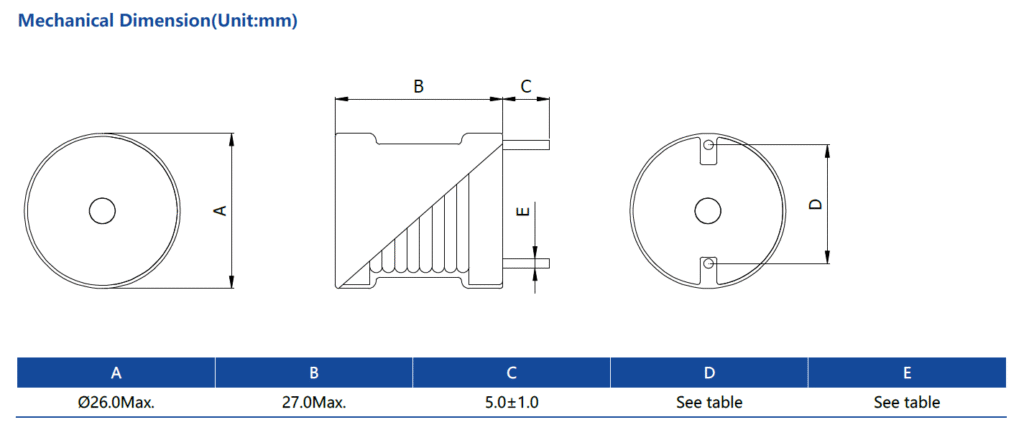

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | D | E | ||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | (mm)Nom. | (mm)Nom. | |||
| DP01-2627470M | 47±20% | 15.2 | 18 | 25 | 9 | 19 | 1.4 |  |
| DP01-2627680M | 68±20% | 22.08 | 26 | 21 | 9 | 19 | 1.3 | |
| DP01-2627101K | 100±10% | 28.38 | 33 | 17 | 9 | 19.8 | 1.3 | |
| DP01-2627151K | 150±10% | 45.16 | 52 | 13.5 | 5.5 | 19.8 | 1.1 | |
| DP01-2627221K | 220±10% | 66.85 | 77 | 12 | 5.5 | 19.8 | 1 | |
| DP01-2627331K | 330±10% | 95.8 | 110.5 | 9.5 | 4.5 | 20.6 | 0.9 | |
| DP01-2627471K | 470±10% | 134.5 | 155 | 8 | 4 | 19 | 0.85 | |
| DP01-2627681K | 680±10% | 182.8 | 210.5 | 6.5 | 2.8 | 18.2 | 0.8 | |
| DP01-2627102K | 1000±10% | 295.5 | 340 | 5.6 | 2 | 19 | 0.7 | |
| DP01-2627152K | 1500±10% | 402.6 | 463 | 4.5 | 2 | 19 | 0.65 | |
| DP01-2627222K | 2200±10% | 658.3 | 757 | 3.6 | 1.3 | 19.5 | 0.55 | |
| DP01-2627332K | 3300±10% | 853.8 | 982 | 3.1 | 1.3 | 19 | 0.55 | |
| DP01-2627472K | 4700±10% | 1242.5 | 1429 | 2.5 | 1 | 19 | 0.5 | |
