Russian DP02-1014 Type

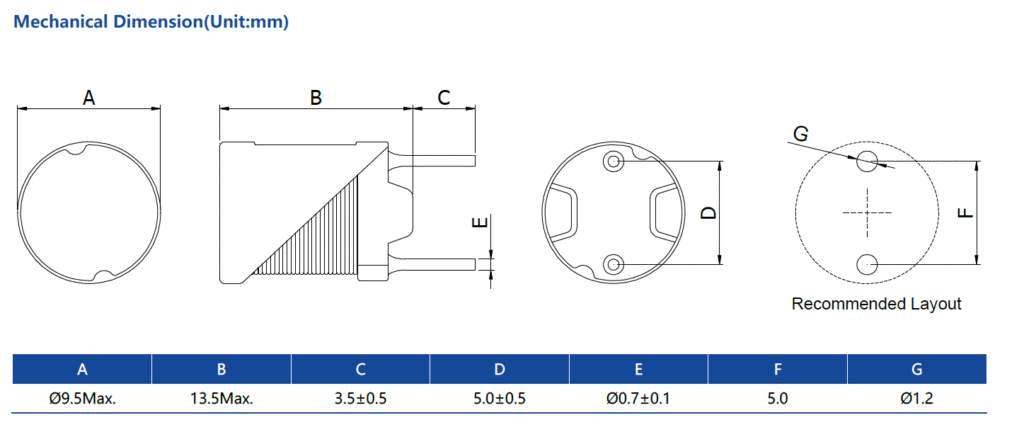

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat1 | Isat2 | Isat3 | Irms | ||
|---|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Typ. | (A)Typ. | (A)Typ. | |||
| DP02-10143R3M | 3.3±20% | 0.007 | 0.009 | 8 | 10.8 | 11.7 | 8.8 |  |
| DP02-10144R7M | 4.7±20% | 0.008 | 0.01 | 7.5 | 9.4 | 10.8 | 8.2 | |
| DP02-10145R6M | 5.6±20% | 0.01 | 0.012 | 7 | 8.6 | 9.7 | 7.3 | |
| DP02-10146R8M | 6.8±20% | 0.012 | 0.015 | 6.4 | 7.9 | 8.8 | 7 | |
| DP02-10148R2M | 8.2±20% | 0.015 | 0.018 | 6 | 7.2 | 7.9 | 6.5 | |
| DP02-1014100M | 10±20% | 0.017 | 0.02 | 5.4 | 6.4 | 7 | 6 | |
| DP02-1014120M | 12±20% | 0.02 | 0.024 | 5 | 5.7 | 6.3 | 5.5 | |
| DP02-1014150M | 15±20% | 0.024 | 0.029 | 4.7 | 5.3 | 5.8 | 5.2 | |
| DP02-1014180M | 18±20% | 0.025 | 0.03 | 4.4 | 4.9 | 5.3 | 5 | |
| DP02-1014220M | 22±20% | 0.031 | 0.037 | 4 | 4.5 | 4.9 | 4.6 | |
| DP02-1014270M | 27±20% | 0.036 | 0.043 | 3.5 | 4 | 4.5 | 4.2 | |
| DP02-1014330M | 33±20% | 0.045 | 0.054 | 3 | 3.6 | 4 | 3.7 | |
| DP02-1014390M | 39±20% | 0.056 | 0.067 | 2.8 | 3.4 | 3.7 | 3.4 | |
| DP02-1014470M | 47±20% | 0.064 | 0.077 | 2.6 | 3 | 3.3 | 3 | |
| DP02-1014560M | 56±20% | 0.071 | 0.085 | 2.4 | 2.8 | 3 | 2.8 | |
| DP02-1014680M | 68±20% | 0.092 | 0.11 | 2.2 | 2.6 | 2.8 | 2.6 | |
| DP02-1014820M | 82±20% | 0.106 | 0.127 | 2 | 2.3 | 2.6 | 2.4 | |
| DP02-1014101K | 100±10% | 0.141 | 0.169 | 1.9 | 2.1 | 2.4 | 2.2 | |
| DP02-1014121K | 120±10% | 0.157 | 0.188 | 1.6 | 1.9 | 2.1 | 2 | |
| DP02-1014151K | 150±10% | 0.193 | 0.23 | 1.4 | 1.7 | 1.9 | 1.8 | |
| DP02-1014181K | 180±10% | 0.242 | 0.29 | 1.3 | 1.5 | 1.7 | 1.6 | |
| DP02-1014221K | 220±10% | 0.278 | 0.334 | 1.1 | 1.4 | 1.5 | 1.4 | |
| DP02-1014331K | 330±10% | 0.403 | 0.484 | 0.95 | 1.13 | 1.25 | 1.22 | |
| DP02-1014471K | 470±10% | 0.562 | 0.674 | 0.82 | 0.98 | 1.1 | 1.05 | |
| DP02-1014561K | 560±10% | 0.698 | 0.838 | 0.75 | 0.92 | 0.98 | 0.96 | |
| DP02-1014681K | 680±10% | 0.867 | 1 | 0.68 | 0.82 | 0.9 | 0.86 | |
| DP02-1014821K | 820±10% | 0.992 | 1.2 | 0.63 | 0.75 | 0.83 | 0.82 | |
| DP02-1014102K | 1000±10% | 1.224 | 1.469 | 0.56 | 0.66 | 0.7 | 0.74 | |
