Russian DP03 Series

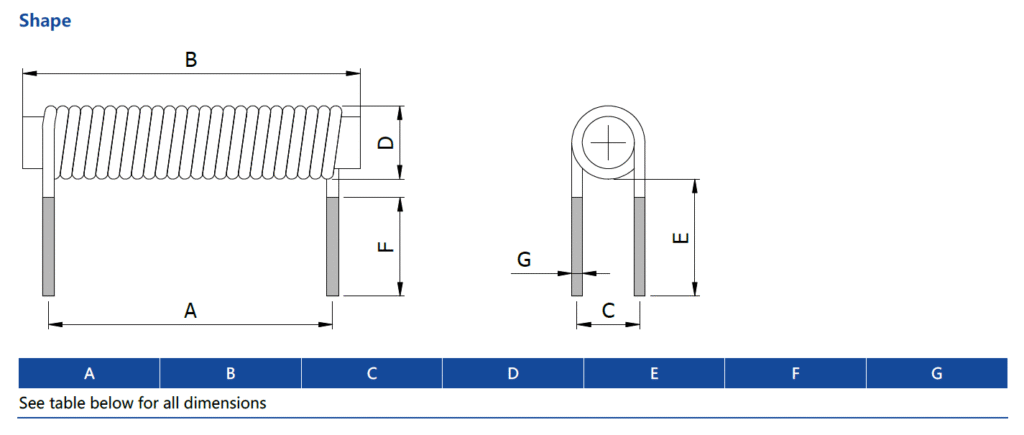

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Rated Current | Weight | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|
| (mΩ)Max. | (A)Typ. | (G)Typ | ||||
| DP03-0251402R2M | 2.2±20% | 10 | 6.5 | 0.9 | 220 |  |
| DP03-0301302R3M | 2.3±20% | 15 | 6.5 | 1 | 200 | |
| DP03-0301604R6M | 4.6±20% | 20 | 6 | 1.4 | 160 | |
| DP03-0401502R9M | 2.9±20% | 12 | 7.5 | 2.3 | 155 | |
| DP03-0401754R4M | 4.4±20% | 14 | 7.2 | 2.7 | 140 | |
| DP03-0402005R9M | 5.9±20% | 16 | 6.8 | 3.2 | 115 | |
| DP03-0502003R7M | 3.7±20% | 7.7 | 12 | 5.4 | 120 | |
| DP03-0602508R0M | 8.0±20% | 13 | 11 | 7.5 | 70 | |
| DP03-0602501R9M | 1.9±20% | 2.4 | 24 | 7.8 | 130 | |
| DP03-0903004R7M | 4.7±20% | 3.5 | 25 | 19.9 | 75 | |
