Russian DP04-1009 Type

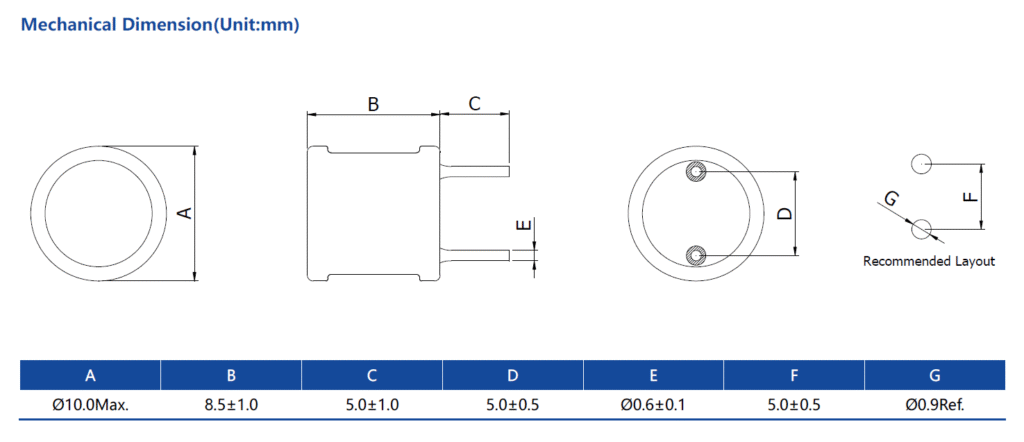

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Rated Current | Q | Q | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|---|
| (Ω)Max. | (A)Max. | Typ. | Freq.(MHz) | ||||
| DP04-10092R2M | 2.2±20% | 0.011 | 4 | 10 | 7.96 | 60 |  |
| DP04-10093R3M | 3.3±20% | 0.013 | 3.4 | 10 | 7.96 | 38 | |
| DP04-10094R7M | 4.7±20% | 0.017 | 3 | 10 | 7.96 | 30 | |
| DP04-10096R8M | 6.8±20% | 0.023 | 2.6 | 10 | 7.96 | 24 | |
| DP04-1009100K | 10±10% | 0.031 | 2.2 | 20 | 2.52 | 19 | |
| DP04-1009150K | 15±10% | 0.042 | 1.9 | 20 | 2.52 | 15 | |
| DP04-1009220K | 22±10% | 0.07 | 1.5 | 20 | 2.52 | 12 | |
| DP04-1009330K | 33±10% | 0.092 | 1.2 | 20 | 2.52 | 10 | |
| DP04-1009470K | 47±10% | 0.13 | 1 | 20 | 2.52 | 8.2 | |
| DP04-1009680K | 68±10% | 0.16 | 0.97 | 20 | 2.52 | 6.6 | |
| DP04-1009101K | 100±10% | 0.23 | 0.81 | 15 | 0.796 | 5.4 | |
| DP04-1009151K | 150±10% | 0.4 | 0.61 | 15 | 0.796 | 4.3 | |
| DP04-1009221K | 220±10% | 0.53 | 0.53 | 15 | 0.796 | 3.5 | |
| DP04-1009331K | 330±10% | 0.78 | 0.44 | 15 | 0.796 | 2.8 | |
| DP04-1009471K | 470±10% | 1 | 0.39 | 10 | 0.796 | 2.3 | |
| DP04-1009681K | 680±10% | 1.5 | 0.32 | 10 | 0.796 | 1.9 | |
| DP04-1009102K | 1000±10% | 2.2 | 0.26 | 20 | 0.252 | 1.5 | |
| DP04-1009152K | 1500±10% | 3.5 | 0.21 | 30 | 0.252 | 1.2 | |
