Russian DP04-1215 Type

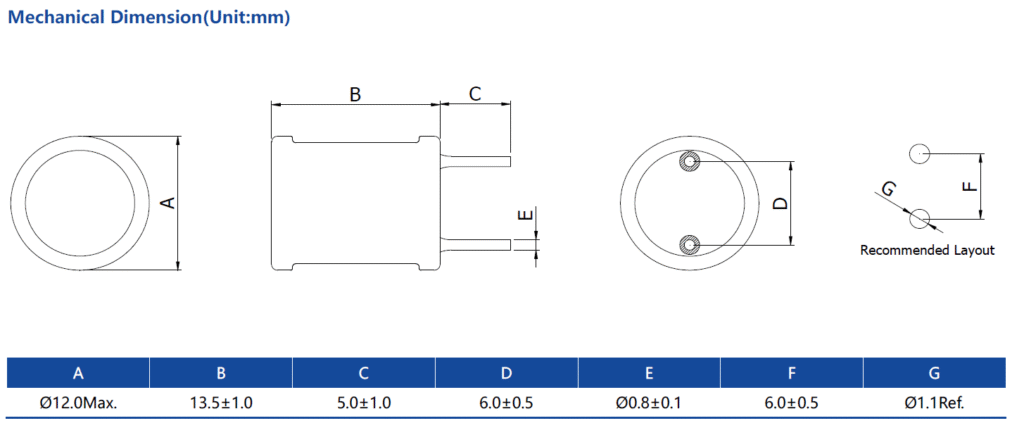

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Rated Current | Q | Q | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|---|
| (Ω)Max. | (A)Max. | Typ. | Freq.(MHz) | ||||
| DP04-1215103K | 10000±10% | 12 | 0.17 | 100 | 0.0796 | 0.35 |  |
| DP04-1215123K | 12000±10% | 13 | 0.16 | 100 | 0.0796 | 0.31 | |
| DP04-1215153K | 15000±10% | 18 | 0.14 | 100 | 0.0796 | 0.28 | |
| DP04-1215183K | 18000±10% | 25 | 0.12 | 80 | 0.0796 | 0.26 | |
| DP04-1215223K | 22000±10% | 30 | 0.11 | 80 | 0.0796 | 0.22 | |
| DP04-1215273K | 27000±10% | 35 | 0.1 | 80 | 0.0796 | 0.2 | |
| DP04-1215333K | 33000±10% | 40 | 0.09 | 60 | 0.0796 | 0.19 | |
| DP04-1215393K | 39000±10% | 50 | 0.08 | 60 | 0.0796 | 0.17 | |
| DP04-1215473K | 47000±10% | 50 | 0.075 | 60 | 0.0796 | 0.15 | |
| DP04-1215563K | 56000±10% | 65 | 0.07 | 40 | 0.0796 | 0.13 | |
| DP04-1215683K | 68000±10% | 70 | 0.065 | 40 | 0.0796 | 0.12 | |
| DP04-1215823K | 82000±10% | 100 | 0.055 | 30 | 0.0796 | 0.1 | |
| DP04-1215104K | 100000±10% | 135 | 0.045 | 30 | 0.0796 | 0.1 | |
