Russian SP03-0302A Type

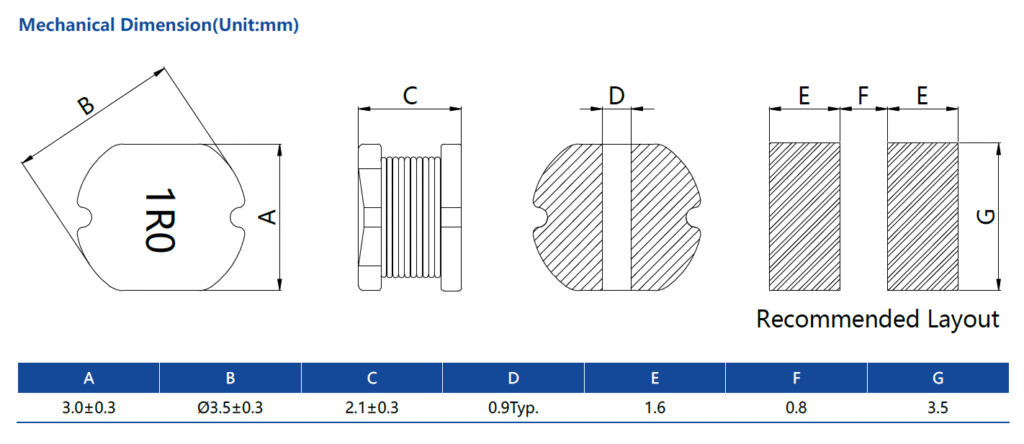

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Max. | ||||
| SP03-0302A1R0M | 1.0±20% | 0.039 | 0.05 | 3.7 | 2.55 | 160 |  |
| SP03-0302A1R5M | 1.5±20% | 0.054 | 0.07 | 3.05 | 2.1 | 130 | |
| SP03-0302A2R2M | 2.2±20% | 0.07 | 0.09 | 2.54 | 1.71 | 100 | |
| SP03-0302A3R3M | 3.3±20% | 0.091 | 0.12 | 2.09 | 1.4 | 80 | |
| SP03-0302A4R7M | 4.7±20% | 0.125 | 0.16 | 1.8 | 1.16 | 70 | |
| SP03-0302A6R8M | 6.8±20% | 0.17 | 0.21 | 1.5 | 0.96 | 55 | |
| SP03-0302A100M | 10±20% | 0.24 | 0.3 | 1.25 | 0.8 | 45 | |
| SP03-0302A150K | 15±10% | 0.35 | 0.43 | 1.05 | 0.65 | 36 | |
| SP03-0302A220K | 22±10% | 0.565 | 0.7 | 0.84 | 0.53 | 28 | |
| SP03-0302A330K | 33±10% | 0.78 | 0.97 | 0.7 | 0.45 | 24 | |
| SP03-0302A470K | 47±10% | 1.11 | 1.33 | 0.6 | 0.36 | 20 | |
| SP03-0302A680K | 68±10% | 1.6 | 1.8 | 0.5 | 0.3 | 16 | |
| SP03-0302A101K | 100±10% | 2.42 | 2.8 | 0.41 | 0.25 | 12 | |
