Russian SP03-0503A Type

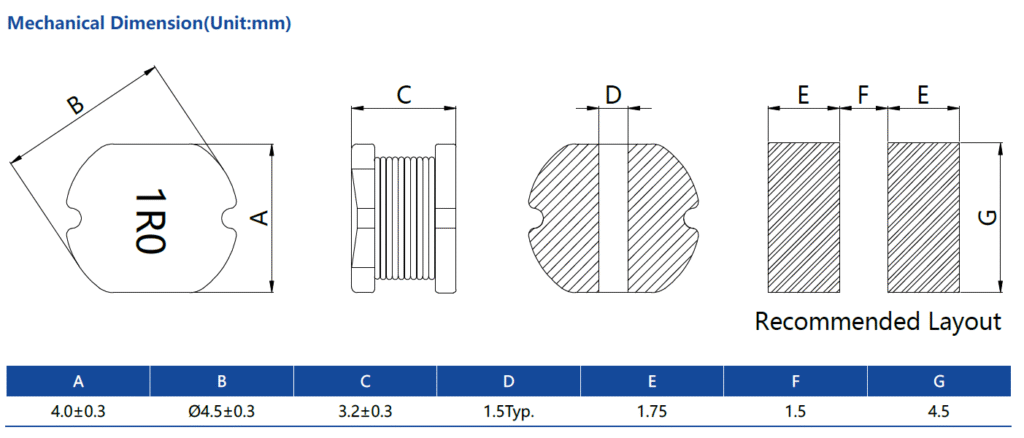

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Max. | ||||
| SP03-0503A1R0M | 1.0±20% | 0.014 | 0.024 | 5.72 | 4 | 110 |  |
| SP03-0503A1R5M | 1.5±20% | 0.022 | 0.032 | 5.04 | 3.4 | 103 | |
| SP03-0503A1R8M | 1.8±20% | 0.028 | 0.039 | 3.6 | 2.7 | 95 | |
| SP03-0503A2R2M | 2.2±20% | 0.034 | 0.047 | 3.38 | 2.5 | 85 | |
| SP03-0503A2R7M | 2.7±20% | 0.039 | 0.065 | 2.97 | 2.25 | 72 | |
| SP03-0503A3R3M | 3.3±20% | 0.041 | 0.074 | 2.88 | 2 | 65 | |
| SP03-0503A3R9M | 3.9±20% | 0.054 | 0.08 | 2.57 | 1.88 | 61 | |
| SP03-0503A4R7M | 4.7±20% | 0.059 | 0.087 | 2.46 | 1.82 | 50 | |
| SP03-0503A5R6M | 5.6±20% | 0.069 | 0.102 | 2.43 | 1.58 | 48 | |
| SP03-0503A6R8M | 6.8±20% | 0.076 | 0.12 | 2.1 | 1.54 | 41 | |
| SP03-0503A8R2M | 8.2±20% | 0.11 | 0.142 | 1.8 | 1.5 | 38 | |
| SP03-0503A100M | 10±20% | 0.118 | 0.172 | 1.74 | 1.45 | 37 | |
| SP03-0503A120M | 12±20% | 0.156 | 0.197 | 1.62 | 1.28 | 32 | |
| SP03-0503A150K | 15±10% | 0.204 | 0.235 | 1.46 | 1.2 | 26 | |
| SP03-0503A180K | 18±10% | 0.225 | 0.309 | 1.29 | 1.1 | 23 | |
| SP03-0503A220K | 22±10% | 0.261 | 0.351 | 1.22 | 1 | 20 | |
| SP03-0503A270K | 27±10% | 0.328 | 0.419 | 1 | 0.94 | 20 | |
| SP03-0503A330K | 33±10% | 0.37 | 0.485 | 0.9 | 0.86 | 20 | |
| SP03-0503A390K | 39±10% | 0.418 | 0.561 | 0.87 | 0.77 | 18 | |
| SP03-0503A470K | 47±10% | 0.523 | 0.631 | 0.77 | 0.68 | 16 | |
| SP03-0503A560K | 56±10% | 0.714 | 0.92 | 0.75 | 0.64 | 15 | |
| SP03-0503A680K | 68±10% | 0.754 | 1.117 | 0.68 | 0.56 | 13 | |
