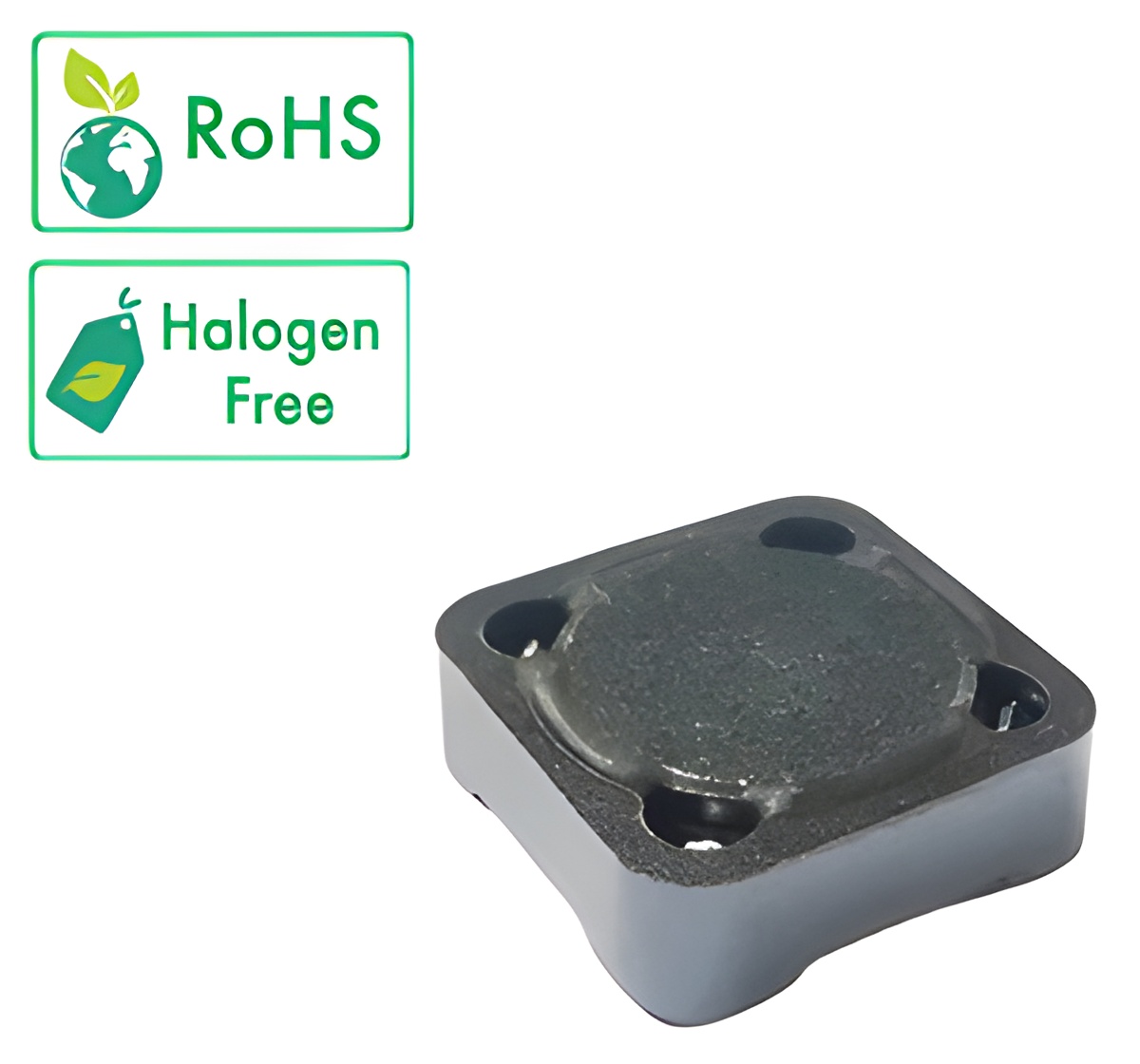

Russian SP05-1204 Type

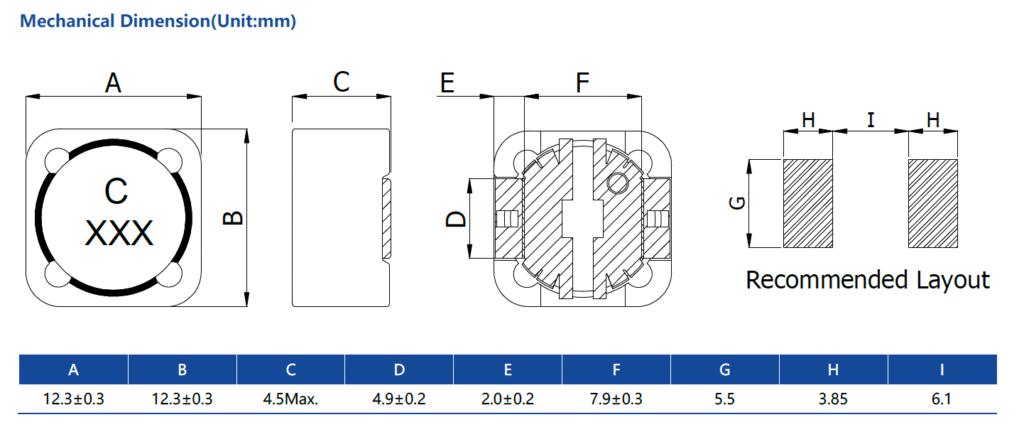

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP05-1204R60N | 0.6±30% | 4.5 | 5.5 | 20.5 | 13.5 | 160 |  |
| SP05-12041R0N | 1.0±30% | 5.5 | 7 | 15.5 | 12 | 98 | |
| SP05-12041R8N | 1.8±30% | 7.5 | 9.5 | 11 | 8.8 | 76 | |
| SP05-12042R5N | 2.5±30% | 8.5 | 11 | 9.5 | 7.6 | 50 | |
| SP05-12043R3M | 3.3±20% | 11.5 | 13 | 8.4 | 7 | 40 | |
| SP05-12044R7M | 4.7±20% | 13.5 | 16 | 7.4 | 6.5 | 38 | |
| SP05-12046R8M | 6.8±20% | 20 | 25 | 5.5 | 5.8 | 27 | |
| SP05-1204100M | 10±20% | 25 | 30 | 5 | 4.9 | 22 | |
| SP05-1204120M | 12±20% | 30 | 38 | 4.25 | 4.5 | 19 | |
| SP05-1204180M | 18±20% | 37 | 51 | 3.8 | 3.7 | 17 | |
| SP05-1204220M | 22±20% | 45 | 65 | 3.65 | 3.4 | 15 | |
| SP05-1204330M | 33±20% | 75 | 85 | 3 | 2.9 | 13 | |
| SP05-1204470M | 47±20% | 105 | 125 | 2.5 | 2.1 | 9.7 | |
| SP05-1204101M | 100±20% | 250 | 270 | 1.65 | 1.4 | 7 | |
| SP05-1204221M | 220±20% | 460 | 480 | 1.18 | 0.95 | 4.8 | |
