Russian SP05-1208 Type

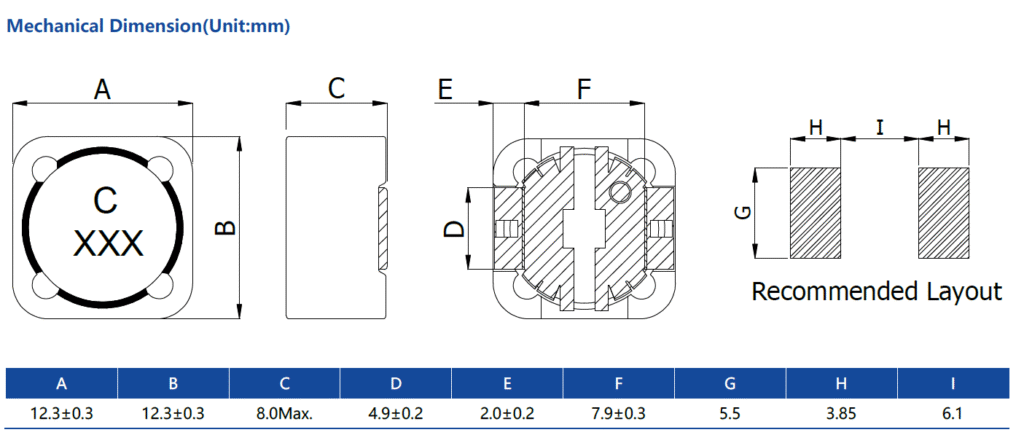

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP05-12081R0N | 1.0±30% | 3.13 | 4.07 | 40 | 15.5 | 110 |  |
| SP05-12081R5N | 1.5±30% | 3.41 | 4.43 | 31.1 | 13.5 | 85 | |
| SP05-12082R2N | 2.2±30% | 4.02 | 5.23 | 25.5 | 12.5 | 58 | |
| SP05-12083R3M | 3.3±20% | 5.67 | 7.37 | 21.5 | 10.5 | 39 | |
| SP05-12084R7M | 4.7±20% | 9.17 | 11.92 | 16.5 | 8.25 | 33 | |
| SP05-12086R8M | 6.8±20% | 11.6 | 15.1 | 13.3 | 7.34 | 22 | |
| SP05-12088R2M | 8.2±20% | 15.7 | 20.4 | 12.2 | 6.32 | 20 | |
| SP05-1208100M | 10±20% | 17.2 | 22.4 | 11.2 | 6.04 | 17 | |
| SP05-1208150M | 15±20% | 24.7 | 32.1 | 9.66 | 5.03 | 13 | |
| SP05-1208220M | 22±20% | 39.1 | 50.8 | 7.57 | 4 | 11 | |
| SP05-1208330M | 33±20% | 60 | 78 | 6.22 | 3.23 | 9.5 | |
| SP05-1208470M | 47±20% | 71.9 | 93.5 | 5.28 | 2.95 | 7.6 | |
| SP05-1208680M | 68±20% | 105 | 137 | 4.44 | 2.44 | 6.5 | |
| SP05-1208820M | 82±20% | 143 | 186 | 4.06 | 2.09 | 5 | |
| SP05-1208101M | 100±20% | 163 | 212 | 3.64 | 1.96 | 4.5 | |
| SP05-1208151M | 150±20% | 247 | 321 | 3.01 | 1.59 | 4 | |
| SP05-1208221M | 220±20% | 376 | 489 | 2.43 | 1.29 | 3.4 | |
| SP05-1208331M | 330±20% | 574 | 746 | 2.01 | 1.04 | 2.9 | |
| SP05-1208471M | 470±20% | 861 | 1119 | 1.68 | 0.85 | 2.2 | |
| SP05-1208681M | 680±20% | 1080 | 1404 | 1.39 | 0.76 | 1.7 | |
| SP05-1208821M | 820±20% | 1470 | 1911 | 1.27 | 0.65 | 1.4 | |
| SP05-1208102K | 1000±10% | 1660 | 2158 | 1.14 | 0.61 | 1.2 | |
