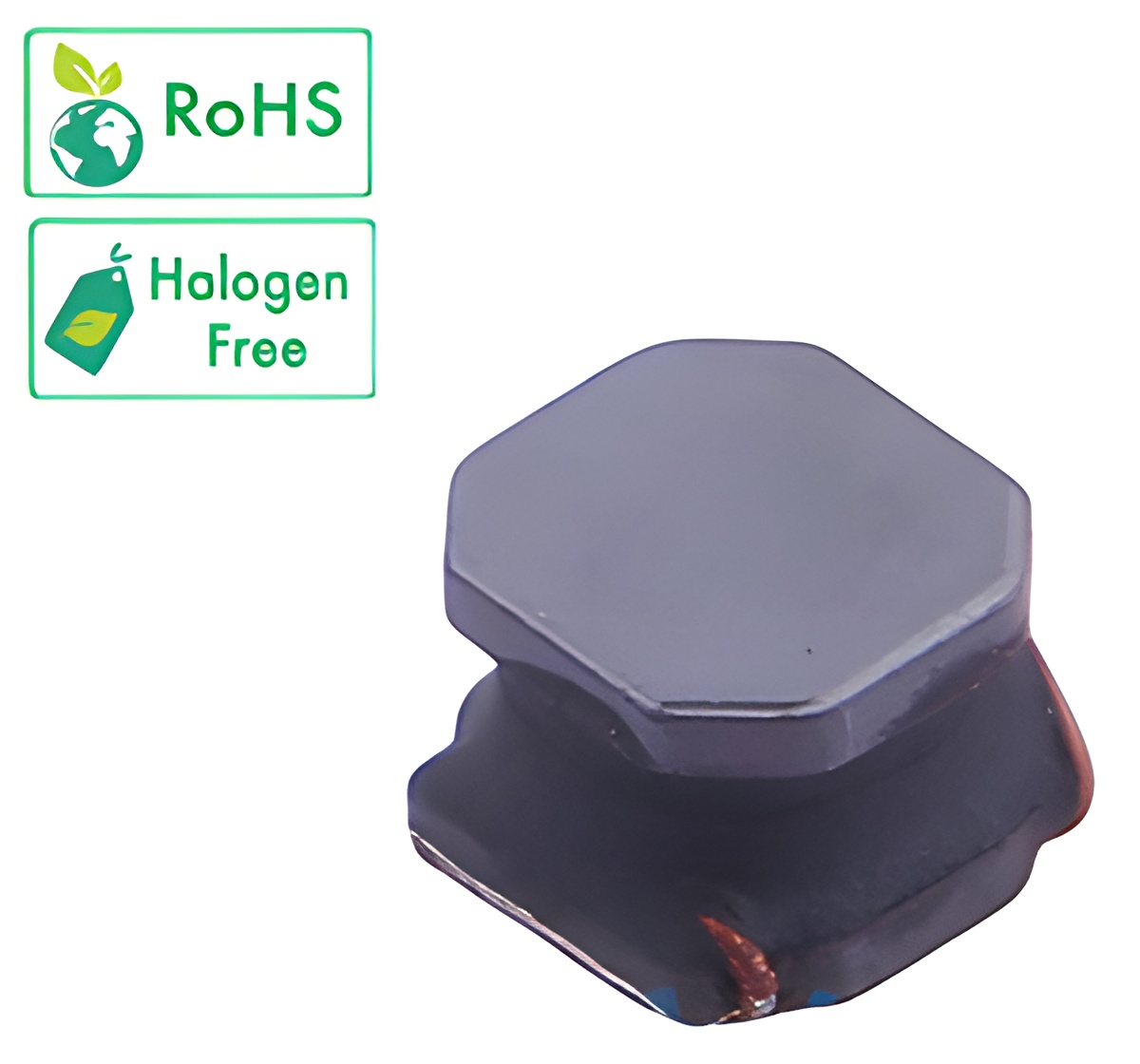

Russian SP06-040026 Type

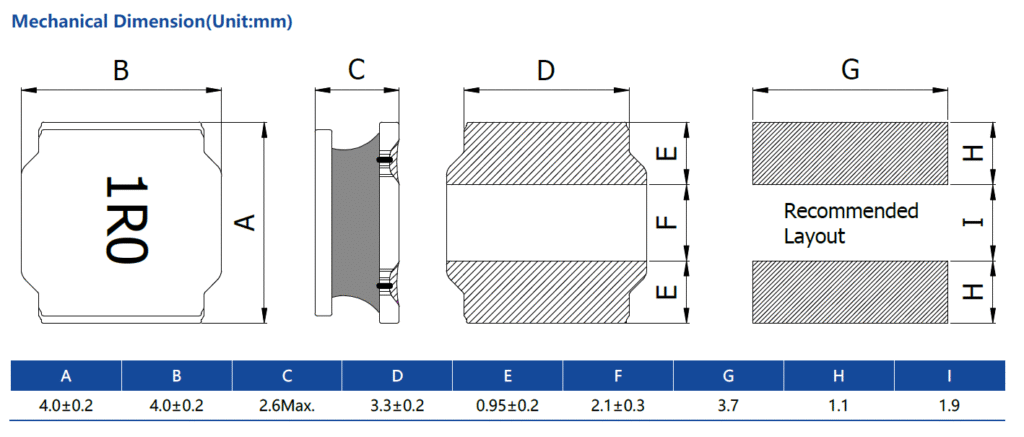

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |||
|---|---|---|---|---|---|---|---|---|
| (Ω)±30% | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | ||||
| SP06-0400261R0N | 1.0±30% | 0.024 | 3.3 | 3.8 | 3 | 3.3 | 151 |  |
| SP06-0400261R2N | 1.2±30% | 0.03 | 3.1 | 3.4 | 2.3 | 3.3 | 120 | |
| SP06-0400261R5N | 1.5±30% | 0.03 | 2.4 | 2.9 | 2.3 | 3.1 | 100 | |
| SP06-0400262R2M | 2.2±20% | 0.04 | 2.1 | 2.4 | 2 | 2.8 | 96 | |
| SP06-0400263R3M | 3.3±20% | 0.05 | 1.8 | 2 | 1.7 | 2.5 | 58 | |
| SP06-0400264R7M | 4.7±20% | 0.055 | 1.45 | 1.7 | 1.6 | 2.3 | 46 | |
| SP06-0400266R8M | 6.8±20% | 0.065 | 1.3 | 1.5 | 1.5 | 2 | 33 | |
| SP06-040026100M | 10±20% | 0.085 | 1 | 1.2 | 1.3 | 1.9 | 26 | |
| SP06-040026150M | 15±20% | 0.11 | 0.9 | 1 | 1.1 | 1.5 | 19 | |
| SP06-040026220M | 22±20% | 0.165 | 0.6 | 0.8 | 0.9 | 1.4 | 13 | |
| SP06-040026330M | 33±20% | 0.27 | 0.55 | 0.65 | 0.7 | 1 | 9 | |
| SP06-040026470M | 47±20% | 0.3 | 0.4 | 0.55 | 0.65 | 0.9 | 6 | |
