Russian SP06-050040 Type

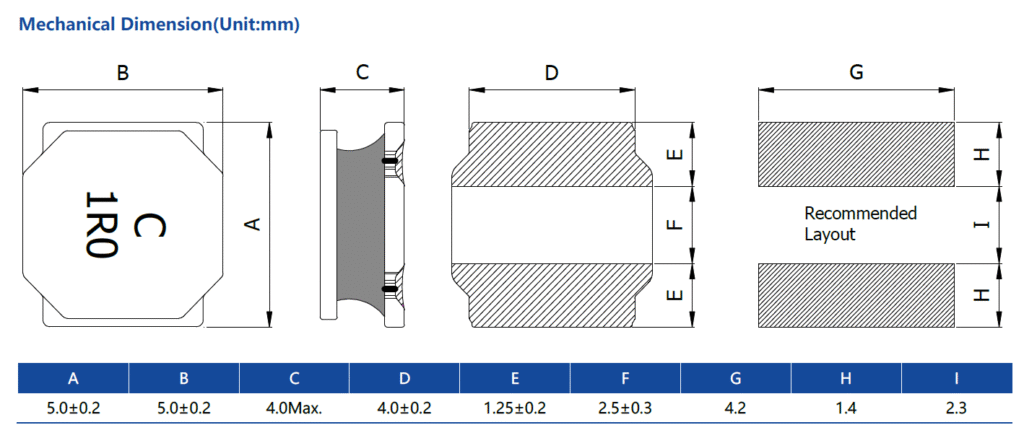

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |||
|---|---|---|---|---|---|---|---|---|
| (Ω)±30% | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | ||||
| SP06-0500401R0N | 1.0±30% | 0.012 | 7.35 | 8 | 4.9 | 5 | 117 |  |
| SP06-0500401R2N | 1.2±30% | 0.016 | 6.5 | 7 | 4.15 | 4.25 | 110 | |
| SP06-0500401R5N | 1.5±30% | 0.015 | 6.3 | 6.8 | 4.3 | 4.85 | 86 | |
| SP06-0500401R8N | 1.8±30% | 0.016 | 5.5 | 6.05 | 4.15 | 4.3 | 55 | |
| SP06-0500402R2N | 2.2±30% | 0.019 | 4.9 | 5.5 | 3.8 | 4.2 | 50 | |
| SP06-0500402R7N | 2.7±30% | 0.022 | 4.3 | 4.8 | 3.6 | 4 | 37 | |
| SP06-0500403R0N | 3.0±30% | 0.022 | 4.15 | 4.6 | 3.6 | 4 | 37 | |
| SP06-0500403R3M | 3.3±20% | 0.024 | 3.95 | 4.45 | 3.4 | 3.9 | 32 | |
| SP06-0500403R6M | 3.6±20% | 0.026 | 3.8 | 4.4 | 3.3 | 3.7 | 30 | |
| SP06-0500403R9M | 3.9±20% | 0.027 | 3.55 | 4 | 3.2 | 3.7 | 29 | |
| SP06-0500404R7M | 4.7±20% | 0.03 | 3.5 | 3.8 | 3 | 3.3 | 28 | |
| SP06-0500405R6M | 5.6±20% | 0.035 | 3 | 3.7 | 2.8 | 3.1 | 27 | |
| SP06-0500406R8M | 6.8±20% | 0.043 | 2.9 | 3.4 | 2.5 | 2.8 | 21 | |
| SP06-0500408R2M | 8.2±20% | 0.048 | 2.7 | 2.9 | 2.3 | 2.6 | 20 | |
| SP06-050040100M | 10±20% | 0.064 | 2.35 | 2.7 | 2.1 | 2.35 | 18 | |
| SP06-050040150M | 15±20% | 0.086 | 2 | 2.2 | 2 | 2.05 | 13 | |
| SP06-050040220M | 22±20% | 0.129 | 1.6 | 1.8 | 1.5 | 1.6 | 11 | |
| SP06-050040330M | 33±20% | 0.188 | 1.3 | 1.45 | 1.2 | 1.35 | 9 | |
| SP06-050040470M | 47±20% | 0.272 | 1.1 | 1.2 | 1 | 1.15 | 7 | |
| SP06-050040680M | 68±20% | 0.4 | 0.9 | 1 | 0.8 | 0.9 | 6 | |
| SP06-050040101M | 100±20% | 0.56 | 0.75 | 0.85 | 0.7 | 0.78 | 5 | |
| SP06-050040151M | 150±20% | 0.75 | 0.65 | 0.67 | 0.6 | 0.7 | 3.7 | |
| SP06-050040221M | 220±20% | 1.4 | 0.48 | 0.55 | 0.4 | 0.5 | 3 | |
| SP06-050040301M | 300±20% | 2 | 0.5 | 0.58 | 0.35 | 0.4 | 2.7 | |
| SP06-050040331M | 330±20% | 2.1 | 0.42 | 0.47 | 0.4 | 0.5 | 2.5 | |
| SP06-050040471M | 470±20% | 3 | 0.37 | 0.43 | 0.35 | 0.4 | 2.2 | |
| SP06-050040561M | 560±20% | 3.78 | 0.31 | 0.36 | 0.31 | 0.35 | 1.6 | |
| SP06-050040681M | 680±20% | 3.9 | 0.3 | 0.35 | 0.25 | 0.3 | 1.5 | |
| SP06-050040102M | 1000±20% | 6 | 0.21 | 0.25 | 0.2 | 0.23 | 1.3 | |
