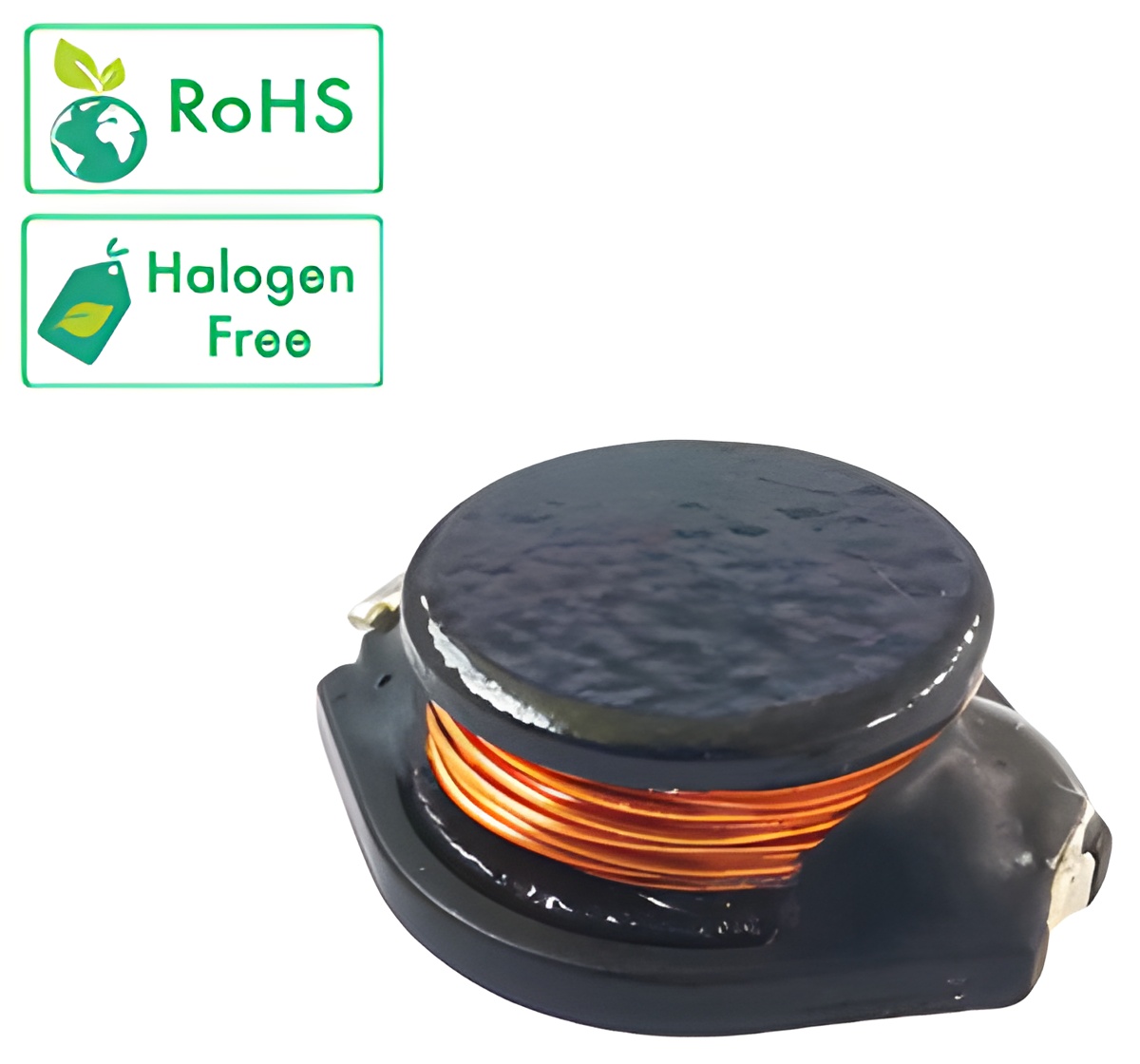

Russian SP08-1907 Type

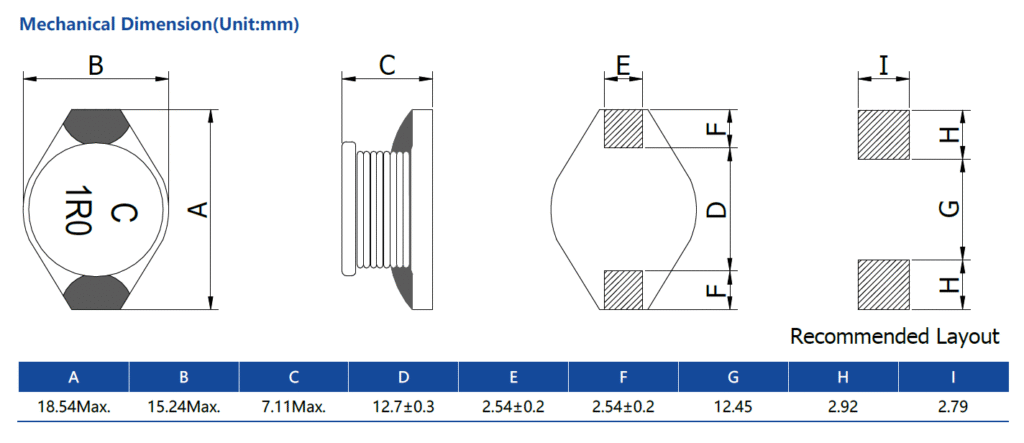

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|
| (Ω)Max. | (A)Max. | (A)Max. | ||||
| SP08-19071R0M | 1.0±20% | 0.009 | 25 | 8.6 | 80 |  |
| SP08-19072R2M | 2.2±20% | 0.014 | 20.3 | 7.1 | 80 | |
| SP08-19073R3M | 3.3±20% | 0.018 | 15.8 | 6.2 | 60 | |
| SP08-19075R6M | 5.6±20% | 0.02 | 13.1 | 5.3 | 40 | |
| SP08-1907100M | 10±20% | 0.031 | 10 | 4.3 | 30 | |
| SP08-1907150M | 15±20% | 0.036 | 8 | 4 | 22 | |
| SP08-1907220M | 22±20% | 0.047 | 7 | 3.5 | 20 | |
| SP08-1907330M | 33±20% | 0.066 | 5.5 | 3 | 15 | |
| SP08-1907470M | 47±20% | 0.086 | 4.5 | 2.6 | 9 | |
| SP08-1907680M | 68±20% | 0.13 | 3.6 | 2.3 | 8 | |
| SP08-1907101K | 100±10% | 0.19 | 3.4 | 1.8 | 7 | |
| SP08-1907151K | 150±10% | 0.25 | 2.7 | 1.5 | 6 | |
| SP08-1907221K | 220±10% | 0.38 | 2.4 | 1.2 | 5 | |
| SP08-1907331K | 330±10% | 0.56 | 1.9 | 1 | 4 | |
| SP08-1907471K | 470±10% | 0.85 | 1.6 | 0.82 | 3 | |
| SP08-1907681K | 680±10% | 1.1 | 1.3 | 0.72 | 2.5 | |
| SP08-1907102K | 1000±10% | 1.8 | 1.1 | 0.56 | 2 | |
