Russian SP10-070032 Type

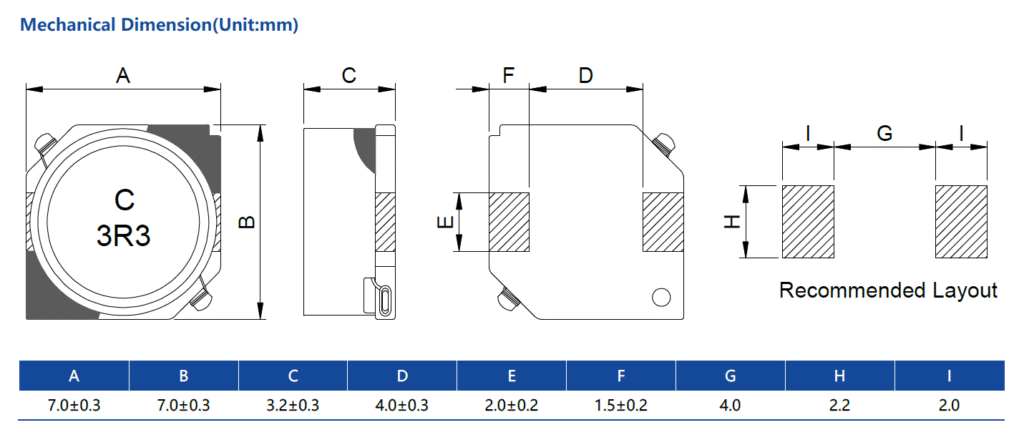

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | |
|---|---|---|---|---|---|
| (Ω) | (A)Max. | (A)Max. | |||
| SP10-0700323R3M | 3.3±20% | 0.023±20% | 1.9 | 1.9 |  |
| SP10-0700324R7M | 4.7±20% | 0.030±20% | 1.7 | 1.7 | |
| SP10-0700326R8M | 6.8±20% | 0.041±20% | 1.6 | 1.6 | |
| SP10-070032100M | 10±20% | 0.053±20% | 1.4 | 1.4 | |
| SP10-070032150M | 15±20% | 0.075±20% | 1.1 | 1.1 | |
| SP10-070032220M | 22±20% | 0.110±20% | 0.96 | 0.96 | |
| SP10-070032330M | 33±20% | 0.160±20% | 0.75 | 0.75 | |
| SP10-070032470M | 47±20% | 0.240±20% | 0.67 | 0.67 | |
| SP10-070032680M | 68±20% | 0.310±20% | 0.59 | 0.59 | |
| SP10-070032101M | 100±20% | 0.450±20% | 0.45 | 0.45 | |
| SP10-070032151M | 150±20% | 0.650±20% | 0.37 | 0.37 | |
| SP10-070032221M | 220±20% | 1.050±20% | 0.29 | 0.29 | |
| SP10-070032331M | 330±20% | 1.670±20% | 0.22 | 0.22 | |
| SP10-070032471M | 470±20% | 2.050±20% | 0.2 | 0.2 | |
| SP10-070032681M | 680±20% | 3.150±20% | 0.16 | 0.16 | |
| SP10-070032102M | 1000±20% | 4.780±20% | 0.13 | 0.13 | |
