Russian SP10-070045 Type

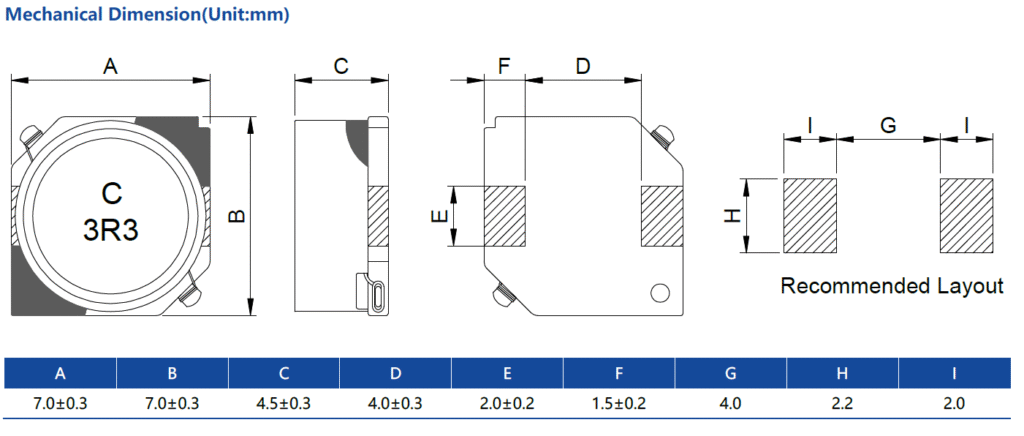

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | |
|---|---|---|---|---|---|
| (Ω) | (A)Max. | (A)Max. | |||
| SP10-0700453R3M | 3.3±20% | 0.020±20% | 2.5 | 2.3 |  |
| SP10-0700454R7M | 4.7±20% | 0.030±20% | 2 | 2.1 | |
| SP10-0700456R8M | 6.8±20% | 0.039±20% | 1.7 | 1.74 | |
| SP10-070045100M | 10±20% | 0.036±20% | 1.3 | 1.68 | |
| SP10-070045150M | 15±20% | 0.052±20% | 1.1 | 1.53 | |
| SP10-070045220M | 22±20% | 0.061±20% | 0.9 | 1.34 | |
| SP10-070045330M | 33±20% | 0.096±20% | 0.82 | 1.09 | |
| SP10-070045470M | 47±20% | 0.125±20% | 0.75 | 0.92 | |
| SP10-070045680M | 68±20% | 0.175±20% | 0.6 | 0.77 | |
| SP10-070045101M | 100±20% | 0.250±20% | 0.5 | 0.65 | |
| SP10-070045151M | 150±20% | 0.340±20% | 0.4 | 0.55 | |
| SP10-070045221M | 220±20% | 0.520±20% | 0.33 | 0.45 | |
| SP10-070045331M | 330±20% | 0.740±20% | 0.25 | 0.37 | |
| SP10-070045471M | 470±20% | 1.050±20% | 0.22 | 0.31 | |
| SP10-070045681M | 680±20% | 1.480±20% | 0.2 | 0.27 | |
| SP10-070045102M | 1000±20% | 2.280±20% | 0.14 | 0.25 | |
