Russian SP10-101065 Type

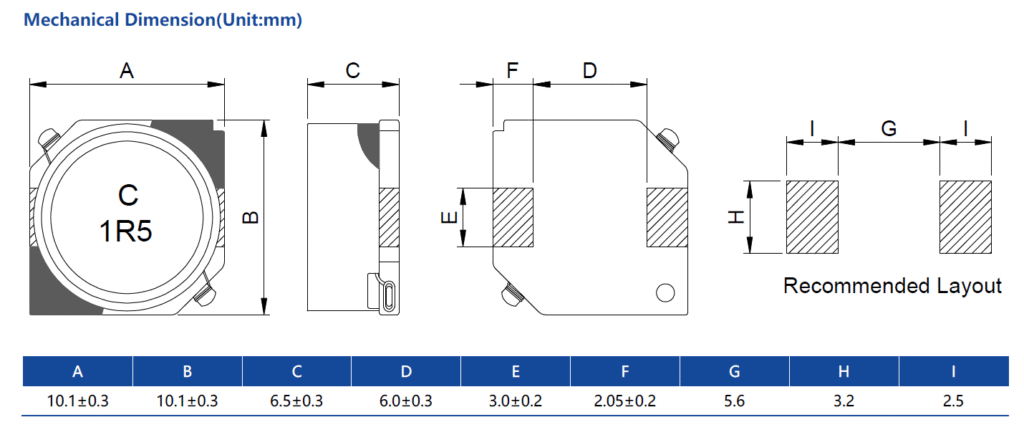

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | |
|---|---|---|---|---|---|
| (Ω) | (A)Max. | (A)Max. | |||
| SP10-1010651R5M | 1.5±20% | 0.007±30% | 10.7 | 6.8 |  |
| SP10-1010652R2M | 2.2±20% | 0.009±30% | 8.9 | 6.3 | |
| SP10-1010653R3M | 3.3±20% | 0.010±30% | 7.8 | 5.8 | |
| SP10-1010654R7M | 4.7±20% | 0.012±30% | 6.1 | 4.7 | |
| SP10-1010656R8M | 6.8±20% | 0.014±30% | 4.6 | 4.3 | |
| SP10-101065100M | 10±20% | 0.019±30% | 4.1 | 3.8 | |
| SP10-101065150M | 15±20% | 0.027±30% | 3.1 | 3.1 | |
| SP10-101065220M | 22±20% | 0.045±30% | 2.7 | 2.4 | |
