Russian SP13-2816B Type

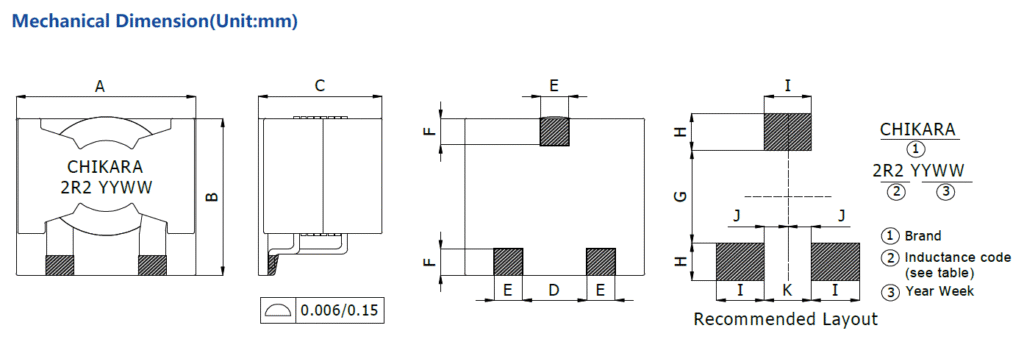

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP13-2816B2R2M | 2.2±20% | 1.86 | 2.05 | 100 | 30 | 40 |  |
| SP13-2816B3R3M | 3.3±20% | 1.86 | 2.05 | 68.4 | 30 | 30 | |
| SP13-2816B4R7M | 4.7±20% | 1.86 | 2.05 | 50.1 | 30 | 25 | |
| SP13-2816B6R8M | 6.8±20% | 1.86 | 2.05 | 36.2 | 30 | 20 | |
| SP13-2816B100K | 10±10% | 1.86 | 2.05 | 23.4 | 30 | 15 | |
| SP13-2816B150K | 15±10% | 1.86 | 2.05 | 15.2 | 30 | 12 | |
| SP13-2816B220K | 22±10% | 1.86 | 2.05 | 9.6 | 30 | 10 | |
| SP13-2816B330K | 33±10% | 1.86 | 2.05 | 5.9 | 30 | 8 | |
