SP14-070040 Type
特点
■ 高储能，超低电阻
■ 储存温度范围:-55℃ to + 125℃
■ 工作温度范围:-55℃ to + 125℃
（含线圈自身温度上升）
■ 湿度敏感等级: 1
■ 符合RoHs和无卤素标准
Facebook
LinkedIn
相关文章
产品目录
搜索更多>>

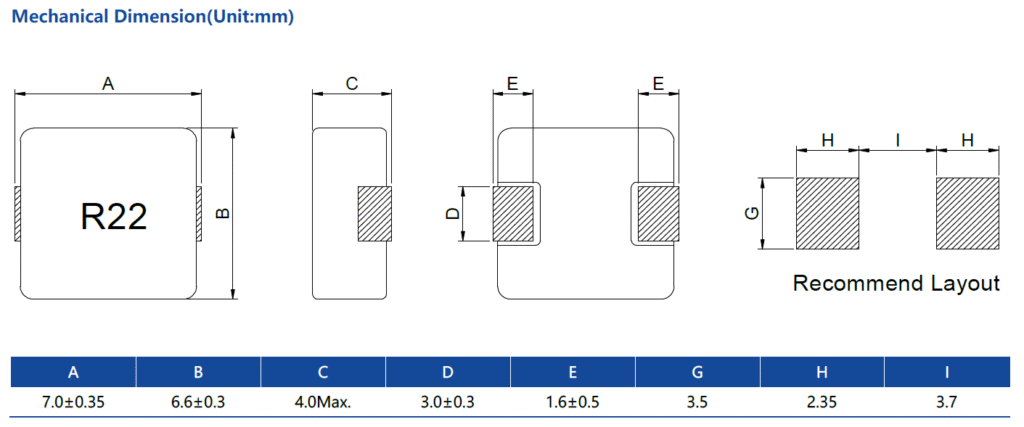

尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP14-070040R22M | 0.22±20% | 1.5 | 1.8 | 30 | 28 | 140 |  |
| SP14-070040R33M | 0.33±20% | 2.9 | 3.6 | 25 | 24 | 115 | |
| SP14-070040R47M | 0.47±20% | 4 | 4.5 | 21 | 20 | 90 | |
| SP14-070040R68M | 0.68±20% | 4.2 | 4.8 | 19 | 18 | 74 | |
| SP14-0700401R0M | 1.0±20% | 5 | 6.6 | 16 | 14 | 52 | |
| SP14-0700401R5M | 1.5±20% | 8 | 10 | 12.5 | 12.4 | 44 | |
| SP14-0700402R2M | 2.2±20% | 11 | 14 | 11 | 10 | 35 | |
| SP14-0700403R3M | 3.3±20% | 16 | 20 | 10 | 8.5 | 28 | |
| SP14-0700404R7M | 4.7±20% | 25 | 30 | 9 | 7 | 24 | |
| SP14-0700406R8M | 6.8±20% | 40 | 45 | 6.5 | 5.5 | 19 | |
| SP14-070040100M | 10±20% | 49 | 65 | 6 | 5 | 15 | |
| SP14-070040150M | 15±20% | 75 | 95 | 4.5 | 4 | 13 | |
| SP14-070040220M | 22±20% | 115 | 125 | 4 | 3.5 | 11 | |
| SP14-070040330M | 33±20% | 200 | 240 | 3 | 2.2 | 8.7 | |
