Russian SP15-047020 Type

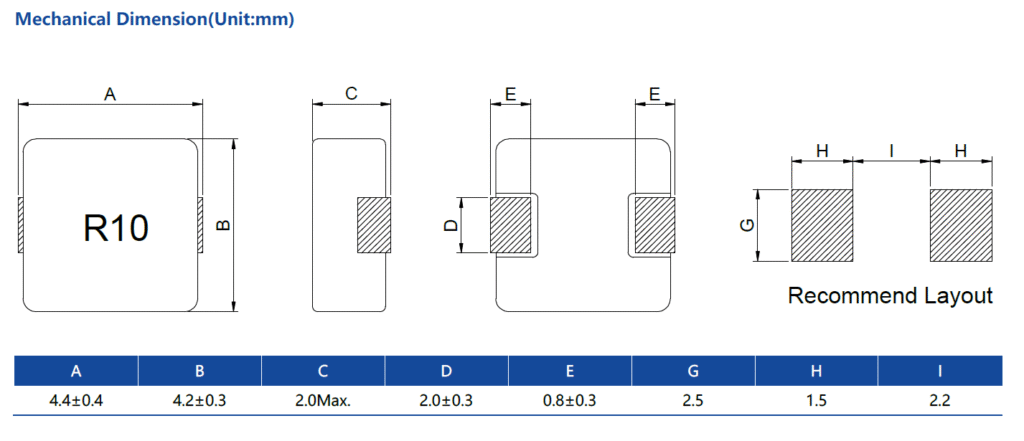

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-047020R10M | 0.10±20% | 3.2 | 4 | 35 | 14 | 300 |  |
| SP15-047020R22M | 0.22±20% | 6.5 | 7.5 | 24 | 13 | 190 | |
| SP15-047020R33M | 0.33±20% | 7.8 | 8.8 | 18 | 10 | 140 | |
| SP15-047020R47M | 0.47±20% | 11.5 | 14 | 12 | 8 | 120 | |
| SP15-047020R56M | 0.56±20% | 13.5 | 16 | 10.5 | 7.3 | 105 | |
| SP15-047020R68M | 0.68±20% | 16.5 | 19 | 10 | 7 | 90 | |
| SP15-0470201R0M | 1.0±20% | 22 | 27 | 8.5 | 5 | 85 | |
| SP15-0470201R5M | 1.5±20% | 35 | 42 | 7 | 4.5 | 64 | |
| SP15-0470202R2M | 2.2±20% | 51 | 61 | 6 | 4 | 49 | |
| SP15-0470203R3M | 3.3±20% | 70 | 76 | 4 | 3.5 | 40 | |
| SP15-0470204R7M | 4.7±20% | 95 | 105 | 3.5 | 2.6 | 33 | |
| SP15-0470205R6M | 5.6±20% | 112 | 125 | 3 | 2.2 | 30 | |
| SP15-0470206R8M | 6.8±20% | 150 | 172 | 2.8 | 2.1 | 26 | |
| SP15-0470208R2M | 8.2±20% | 160 | 180 | 2.5 | 2 | 22 | |
| SP15-047020100M | 10±20% | 215 | 243 | 2.3 | 1.8 | 20 | |
