Russian SP15-057020 Type

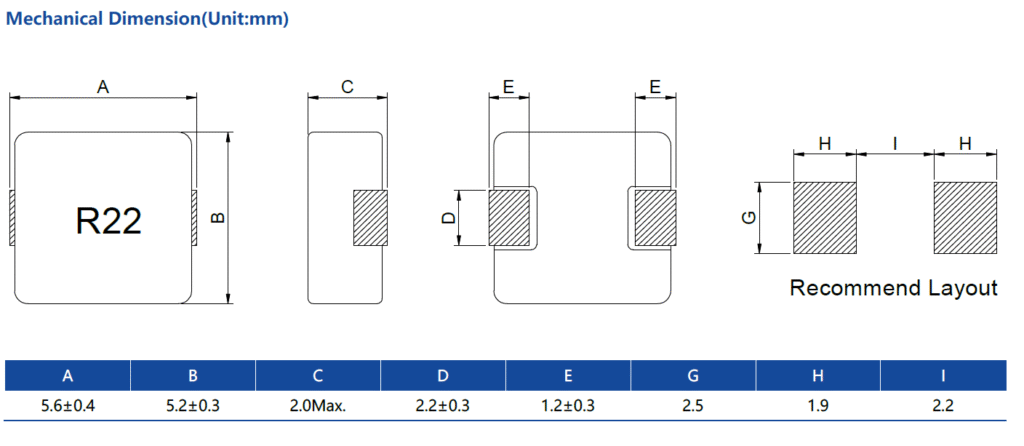

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-057020R22M | 0.22±20% | 4.00 | 5.50 | 25.0 | 15.0 | 120 |  |
| SP15-057020R33M | 0.33±20% | 6.30 | 7.50 | 21.3 | 12.4 | 100 | |
| SP15-057020R47M | 0.47±20% | 7.30 | 8.60 | 18.0 | 11.5 | 95 | |
| SP15-057020R68M | 0.68±20% | 11.0 | 12.5 | 17.8 | 10.0 | 87 | |
| SP15-0570201R0M | 1.0±20% | 17.5 | 20.0 | 13.7 | 7.40 | 68 | |
| SP15-0570201R5M | 1.5±20% | 26.5 | 30.5 | 9.80 | 6.00 | 53 | |
| SP15-0570202R2M | 2.2±20% | 42.0 | 50.0 | 9.00 | 4.75 | 47 | |
| SP15-0570203R3M | 3.3±20% | 66.0 | 75.0 | 7.30 | 3.50 | 35 | |
| SP15-0570204R7M | 4.7±20% | 103 | 116 | 5.00 | 3.00 | 27 | |
| SP15-0570205R6M | 5.6±20% | 112 | 125 | 4.00 | 2.65 | 22 | |
| SP15-0570206R8M | 6.8±20% | 130 | 150 | 3.80 | 2.50 | 20 | |
| SP15-0570208R2M | 8.2±20% | 150 | 175 | 3.50 | 2.40 | 19 | |
| SP15-057020100M | 10±20% | 180 | 199 | 3.40 | 2.30 | 16 | |
| SP15-057020150M | 15±20% | 240 | 270 | 2.80 | 1.90 | 12 | |
| SP15-057020220M | 22±20% | 350 | 390 | 1.80 | 1.50 | 9.5 | |
