Russian SP15-070024 Type

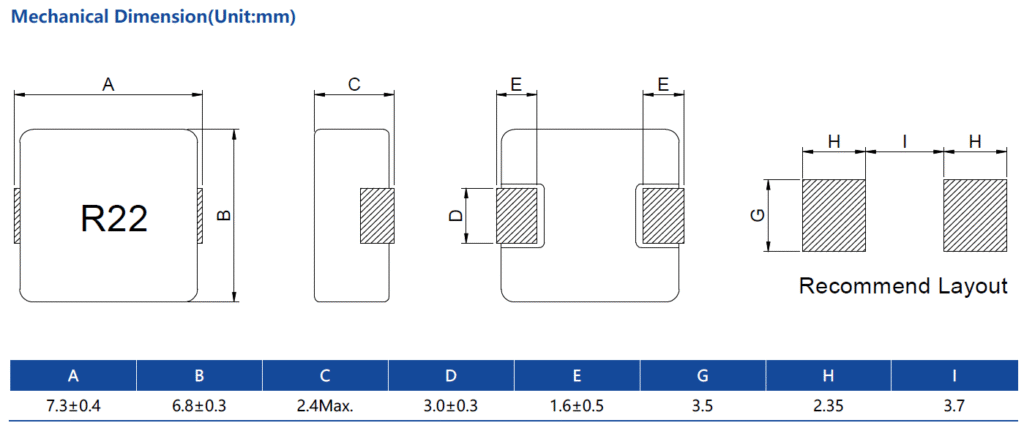

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-070024R22M | 0.22±20% | 2.00 | 3.20 | 34.0 | 21.0 | 125 |  |
| SP15-070024R33M | 0.33±20% | 3.60 | 4.50 | 30.0 | 18.0 | 113 | |
| SP15-070024R47M | 0.47±20% | 4.80 | 5.50 | 26.0 | 15.0 | 95 | |
| SP15-070024R56M | 0.56±20% | 5.50 | 6.50 | 24.0 | 13.0 | 87 | |
| SP15-070024R68M | 0.68±20% | 6.40 | 7.20 | 21.0 | 12.5 | 70 | |
| SP15-070024R82M | 0.82±20% | 8.00 | 9.50 | 17.0 | 11.5 | 60 | |
| SP15-0700241R0M | 1.0±20% | 10.5 | 13.5 | 16.0 | 11.0 | 51 | |
| SP15-0700241R5M | 1.5±20% | 17.0 | 20.0 | 15.0 | 9.00 | 42 | |
| SP15-0700242R2M | 2.2±20% | 23.0 | 28.0 | 14.0 | 7.00 | 30 | |
| SP15-0700243R3M | 3.3±20% | 34.0 | 39.0 | 10.0 | 6.00 | 26 | |
| SP15-0700244R7M | 4.7±20% | 41.0 | 50.0 | 9.00 | 5.50 | 21 | |
| SP15-0700245R6M | 5.6±20% | 56.0 | 63.0 | 8.00 | 5.00 | 19 | |
| SP15-0700246R8M | 6.8±20% | 65.0 | 72.0 | 7.00 | 4.00 | 17 | |
| SP15-0700248R2M | 8.2±20% | 81.0 | 95.0 | 6.00 | 3.60 | 15 | |
| SP15-070024100M | 10±20% | 92.0 | 101 | 5.00 | 3.20 | 13 | |
| SP15-070024150M | 15±20% | 150 | 180 | 3.50 | 2.50 | 11 | |
| SP15-070024220M | 22±20% | 185 | 215 | 3.00 | 1.80 | 8 | |
