Russian SP15-115040 Type

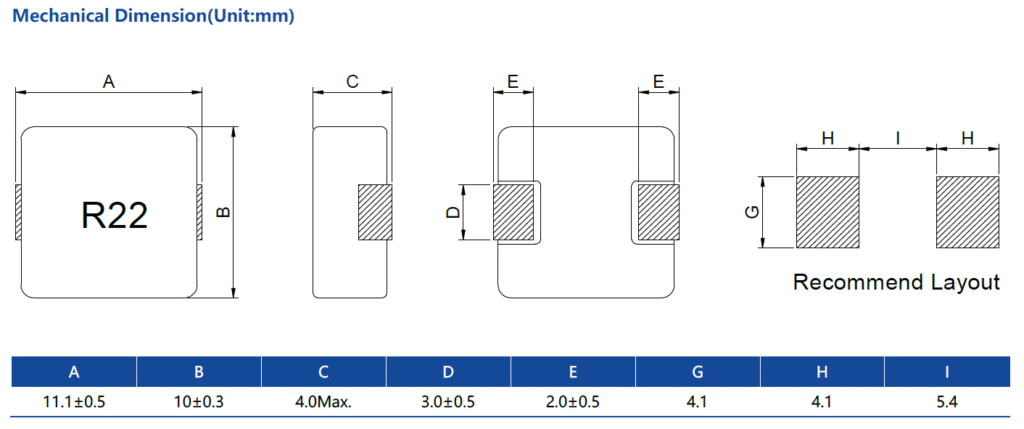

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-115040R22M | 0.22±20% | 0.80 | 1.00 | 65.0 | 35.0 | 150 |  |
| SP15-115040R33M | 0.33±20% | 1.00 | 1.20 | 62.0 | 32.0 | 105 | |
| SP15-115040R36M | 0.36±20% | 1.05 | 1.30 | 60.0 | 31.0 | 100 | |
| SP15-115040R47M | 0.47±20% | 1.30 | 1.50 | 43.0 | 28.0 | 90 | |
| SP15-115040R56M | 0.56±20% | 1.60 | 1.90 | 40.0 | 25.0 | 70 | |
| SP15-115040R68M | 0.68±20% | 2.40 | 2.80 | 39.0 | 22.0 | 55 | |
| SP15-1150401R0M | 1.0±20% | 3.00 | 3.40 | 36.0 | 18.0 | 46 | |
| SP15-1150401R5M | 1.5±20% | 4.00 | 4.60 | 33.0 | 16.0 | 37 | |
| SP15-1150402R2M | 2.2±20% | 6.50 | 7.20 | 27.0 | 12.0 | 30 | |
| SP15-1150403R3M | 3.3±20% | 10.8 | 11.8 | 20.0 | 11.0 | 25 | |
| SP15-1150404R7M | 4.7±20% | 15.0 | 16.0 | 17.0 | 10.0 | 18 | |
| SP15-1150405R6M | 5.6±20% | 17.0 | 19.3 | 14.0 | 9.00 | 16 | |
| SP15-1150406R8M | 6.8±20% | 18.5 | 23.3 | 13.5 | 8.50 | 15 | |
| SP15-1150408R2M | 8.2±20% | 20.0 | 24.5 | 12.5 | 8.00 | 14 | |
| SP15-115040100M | 10±20% | 27.0 | 32.0 | 12.0 | 7.50 | 13 | |
| SP15-115040150M | 15±20% | 40.0 | 45.0 | 10.0 | 6.25 | 10 | |
| SP15-115040220M | 22±20% | 64.0 | 74.0 | 7.00 | 5.00 | 8 | |
| SP15-115040330M | 33±20% | 92.0 | 112 | 5.00 | 3.50 | 7 | |
| SP15-115040470M | 47±20% | 145 | 167 | 4.50 | 3.00 | 6 | |
