Russian SP16-040020 Type

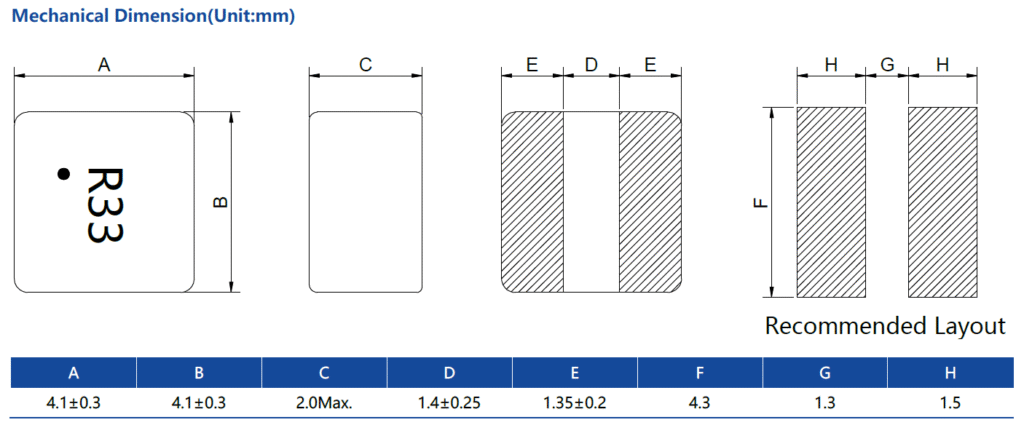

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-040020R33M | 0.33±20% | 5.0 | 6.0 | 18.0 | 17.0 | 12.0 | 11.0 |  |
| SP16-040020R47M | 0.47±20% | 7.0 | 8.5 | 16.0 | 15.0 | 10.2 | 9.5 | |
| SP16-0400201R0M | 1.0±20% | 12.0 | 14.5 | 12.5 | 11.5 | 8.5 | 8.0 | |
| SP16-0400201R5M | 1.5±20% | 18.0 | 22.0 | 10.5 | 9.5 | 7.0 | 6.5 | |
| SP16-0400202R2M | 2.2±20% | 30.0 | 36.0 | 9.5 | 8.5 | 6.5 | 6.0 | |
| SP16-0400203R3M | 3.3±20% | 35.0 | 40.0 | 8.0 | 7.0 | 6.3 | 5.8 | |
| SP16-0400204R7M | 4.7±20% | 47.0 | 58.0 | 6.3 | 5.5 | 5.0 | 4.0 | |
| SP16-0400206R8M | 6.8±20% | 90.0 | 105 | 5.4 | 4.5 | 3.7 | 3.2 | |
| SP16-040020100M | 10±20% | 113 | 135 | 4.9 | 4.0 | 3.4 | 3.0 | |
| SP16-040020150M | 15±20% | 210 | 250 | 3.5 | 3.0 | 2.3 | 1.7 | |
| SP16-040020220M | 22±20% | 275.0 | 330.0 | 2.9 | 2.3 | 1.8 | 1.3 | |
