Vietnamese SP16-050030A Type

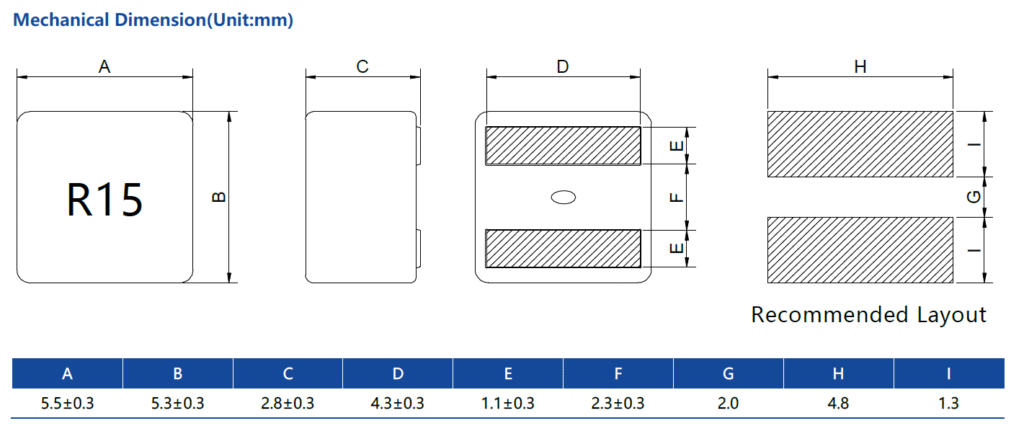

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||||
|---|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | ||||
| SP16-050020AR15M | 0.15±20% | 4.0 | 4.6 | 30.0 | 27.0 | 18.8 | 13.9 | 200 |  |
| SP16-050020AR16M | 0.16±20% | 4.0 | 4.6 | 30.0 | 27.0 | 18.8 | 13.9 | 190 | |
| SP16-050020AR33M | 0.33±20% | 6.1 | 7.0 | 26.0 | 24.0 | 14.4 | 10.5 | 105 | |
| SP16-050020AR47M | 0.47±20% | 7.1 | 8.1 | 22.0 | 20.0 | 14.1 | 10.1 | 97 | |
| SP16-050020AR56M | 0.56±20% | 8.4 | 9.6 | 19.0 | 16.0 | 13.9 | 9.9 | 90 | |
| SP16-050020AR68M | 0.68±20% | 9.0 | 10.2 | 16.0 | 14.0 | 13.4 | 9.6 | 75 | |
| SP16-050020AR80M | 0.80±20% | 10.4 | 11.8 | 15.5 | 13.5 | 13.0 | 9.4 | 65 | |
| SP16-050020AR82M | 0.82±20% | 11.2 | 12.7 | 15.0 | 13.0 | 12.0 | 8.5 | 62 | |
| SP16-050020A1R0M | 1.0±20% | 12.2 | 13.8 | 14.5 | 12.8 | 10.5 | 7.5 | 55 | |
| SP16-050020A1R2M | 1.2±20% | 14.4 | 16.3 | 14.0 | 12.2 | 9.4 | 6.8 | 50 | |
| SP16-050020A1R5M | 1.5±20% | 16.5 | 18.7 | 12 | 11 | 8.8 | 6.4 | 43 | |
