Russian SP16-060030A Type

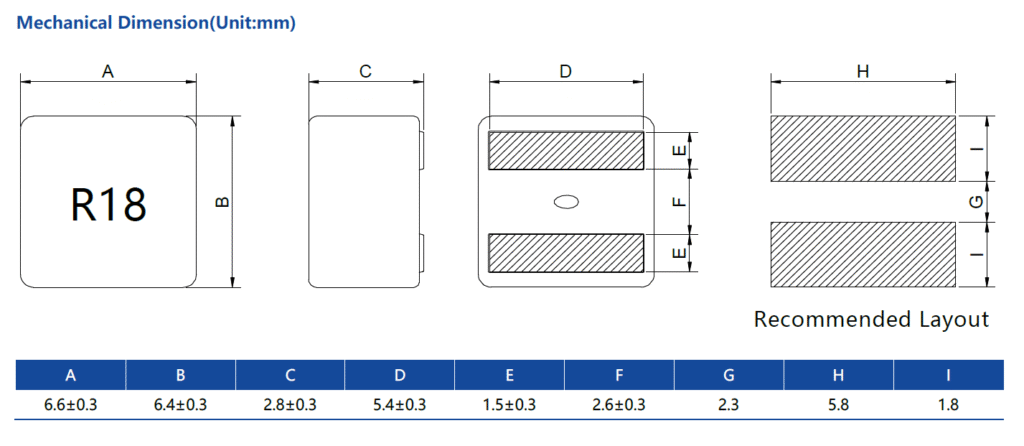

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||||
|---|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | ||||
| SP16-060030AR18M | 0.18±20% | 1.55 | 1.75 | 40 | 36 | 32 | 24 | 170 |  |
| SP16-060030AR33M | 0.33±20% | 2.2 | 2.5 | 32 | 28 | 25 | 20 | 112 | |
| SP16-060030AR56M | 0.56±20% | 2.95 | 3.31 | 29 | 25 | 22 | 17 | 78 | |
| SP16-060030AR68M | 0.68±20% | 4.58 | 5.17 | 25 | 21 | 20 | 15 | 65 | |
| SP16-060030A1R0M | 1.0±20% | 5.35 | 6.05 | 23 | 18 | 18 | 13 | 58 | |
| SP16-060030A1R2M | 1.2±20% | 6.55 | 7.4 | 22 | 16 | 16 | 12 | 52 | |
| SP16-060030A1R5M | 1.5±20% | 8 | 9.13 | 20 | 15.5 | 15 | 11 | 50 | |
| SP16-060030A1R8M | 1.8±20% | 9 | 10.2 | 18.2 | 13 | 14 | 10 | 37 | |
| SP16-060030A2R2M | 2.2±20% | 10.7 | 12.2 | 15.9 | 11 | 10 | 7 | 35 | |
| SP16-060030A3R3M | 3.3±20% | 18.5 | 20.8 | 12.2 | 9 | 8 | 6 | 30 | |
| SP16-060030A4R5M | 4.5±20% | 22.5 | 25.3 | 10 | 8 | 7 | 5 | 27 | |
