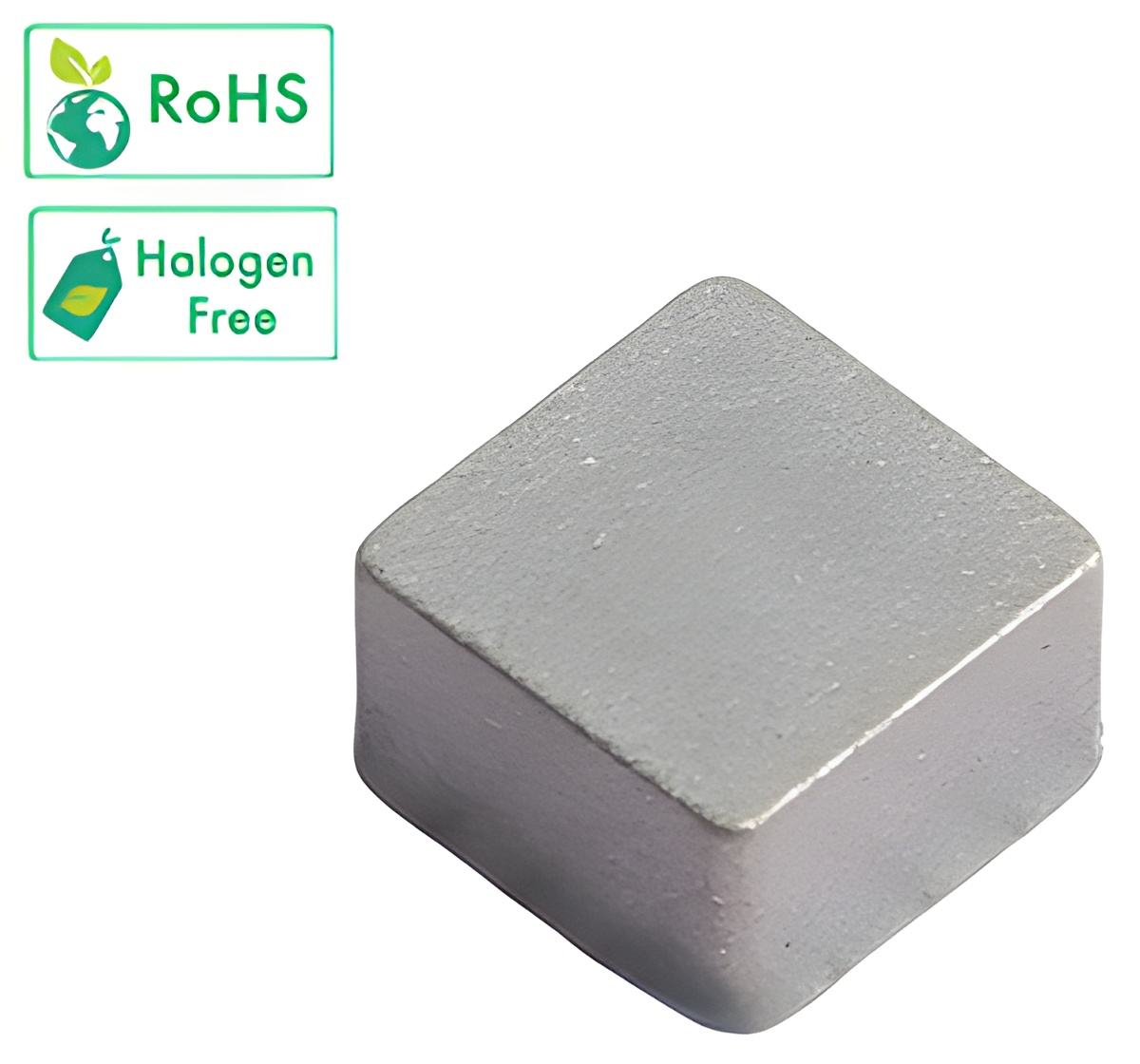

Russian SP16-060060A Type
产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||||
|---|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | ||||
| SP16-060060A1R0M | 1.0±20% | 3.9 | 4.4 | 24 | 19 | 21 | 16 | 60 |  |
| SP16-060060A1R5M | 1.5±20% | 5.4 | 6.1 | 20 | 15 | 17.5 | 13.5 | 45 | |
| SP16-060060A2R2M | 2.2±20% | 7.2 | 8.1 | 16.5 | 12.5 | 14 | 11 | 36 | |
| SP16-060060A3R3M | 3.3±20% | 10.9 | 12.3 | 13 | 11 | 12 | 9 | 30 | |
| SP16-060060A4R7M | 4.7±20% | 13.1 | 14.5 | 10.5 | 9.3 | 11 | 8.5 | 28 | |
| SP16-060060A5R6M | 5.6±20% | 14.5 | 15.9 | 9.9 | 8.7 | 10 | 7.6 | 25 | |
| SP16-060060A6R8M | 6.8±20% | 18.9 | 20.8 | 9.2 | 8.3 | 9 | 7 | 21 | |
| SP16-060060A8R2M | 8.2±20% | 23.5 | 26.4 | 8.4 | 8 | 8 | 6 | 19 | |
| SP16-060060A100M | 10±20% | 26.5 | 29.82 | 7.6 | 6.8 | 7 | 5 | 17 | |
| SP16-060060A150M | 15±20% | 38.7 | 43.75 | 5.8 | 5 | 6 | 4.5 | 14 | |
| SP16-060060A220M | 22±20% | 53.6 | 60.63 | 5.6 | 4.8 | 5 | 3.8 | 9 | |
