Russian SP16-201212 Type

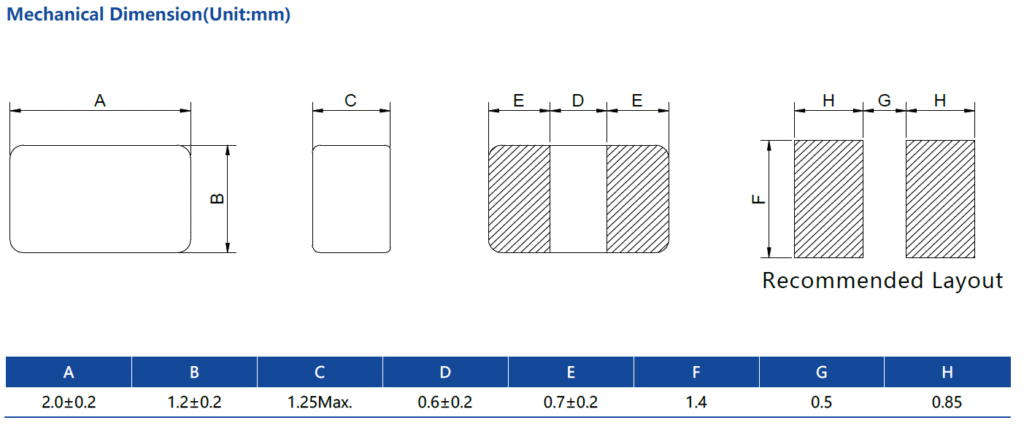

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-201212R11M | 0.11±20% | 5.5 | 6.2 | 12 | 11 | 12 | 11 |  |
| SP16-201212R24M | 0.24±20% | 13 | 16 | 9 | 8.5 | 7.5 | 7 | |
| SP16-201212R47M | 0.47±20% | 20 | 23.5 | 5.5 | 5 | 6 | 5.5 | |
| SP16-2012123R3M | 3.3±20% | 180 | 210 | 2 | 1.8 | 1.8 | 1.6 | |
