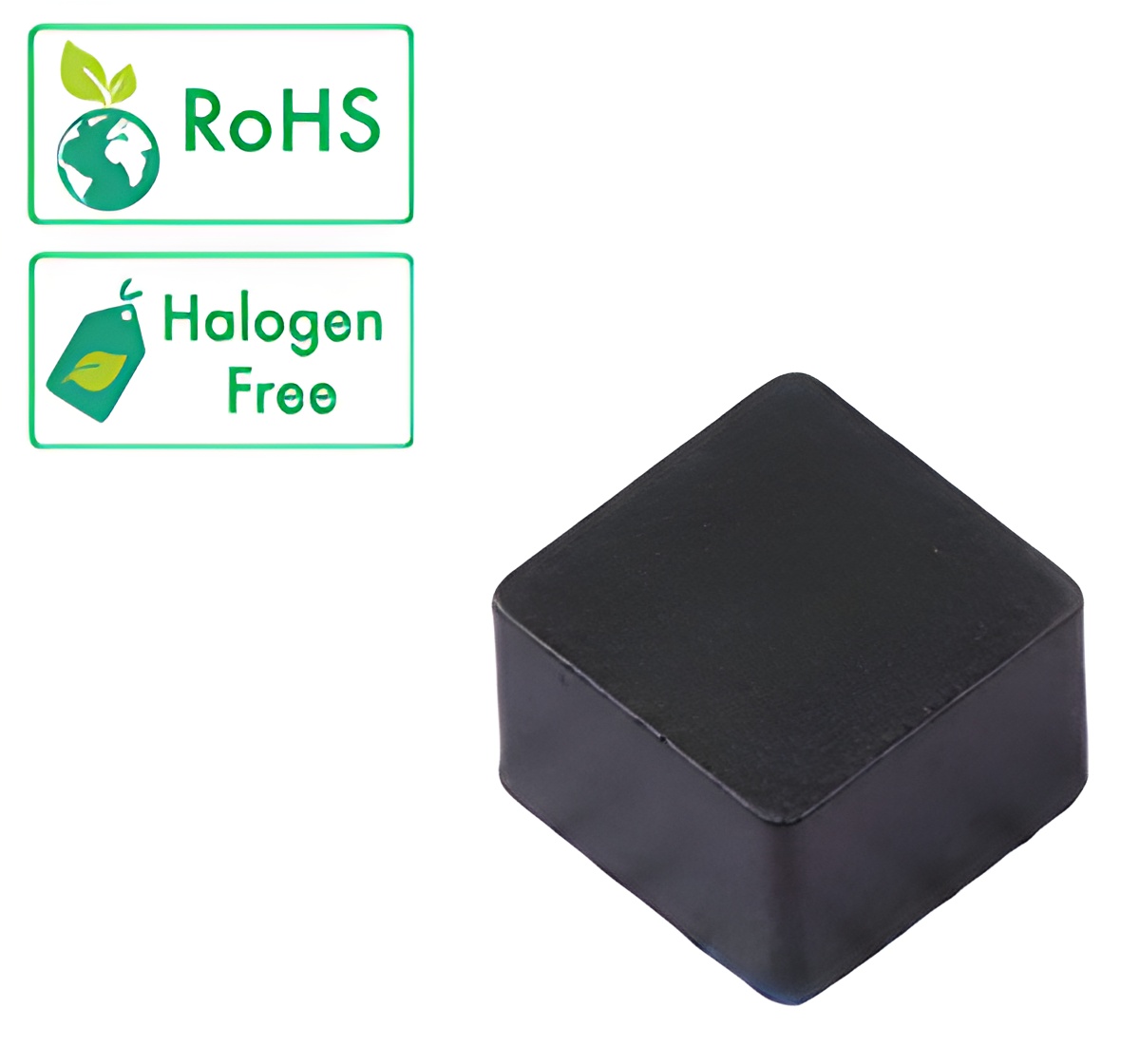

Russian SP16-303015 Type

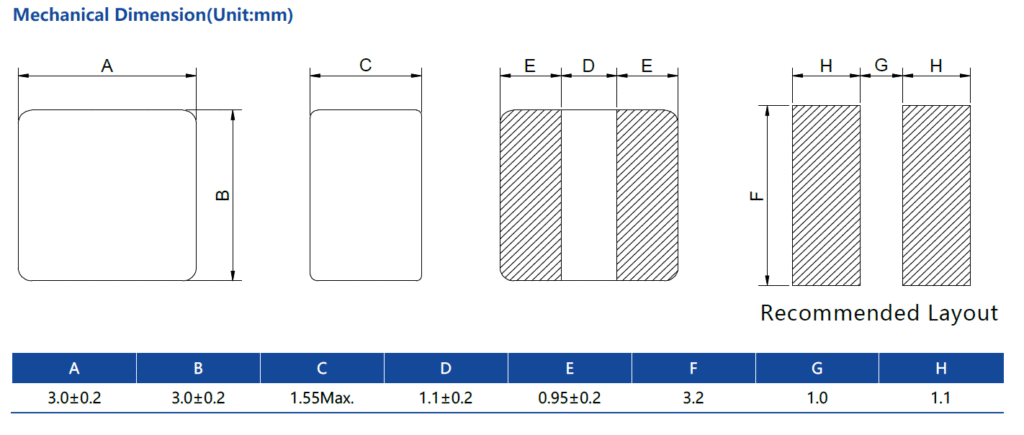

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-303015R15M | 0.15±20% | 5 | 6 | 16 | 15 | 12 | 11 |  |
| SP16-303015R47M | 0.47±20% | 9 | 11 | 10 | 9 | 9 | 8 | |
| SP16-3030151R0M | 1.0±20% | 18 | 22 | 7 | 6.5 | 6 | 5.5 | |
| SP16-3030151R5M | 1.5±20% | 22 | 26 | 6 | 5.5 | 8 | 7.5 | |
| SP16-3030152R2M | 2.2±20% | 42 | 50 | 5 | 4.5 | 4.5 | 4 | |
| SP16-3030154R7M | 4.7±20% | 87 | 104 | 4 | 3.5 | 3.5 | 3 | |
| SP16-3030156R8M | 6.8±20% | 160 | 180 | 3.5 | 3 | 2.5 | 2 | |
| SP16-303015100M | 10±20% | 185 | 215 | 2.8 | 2.5 | 2 | 1.5 | |
| SP16-303015220M | 22±20% | 580 | 700 | 1.6 | 1.2 | 1.2 | 1 | |
