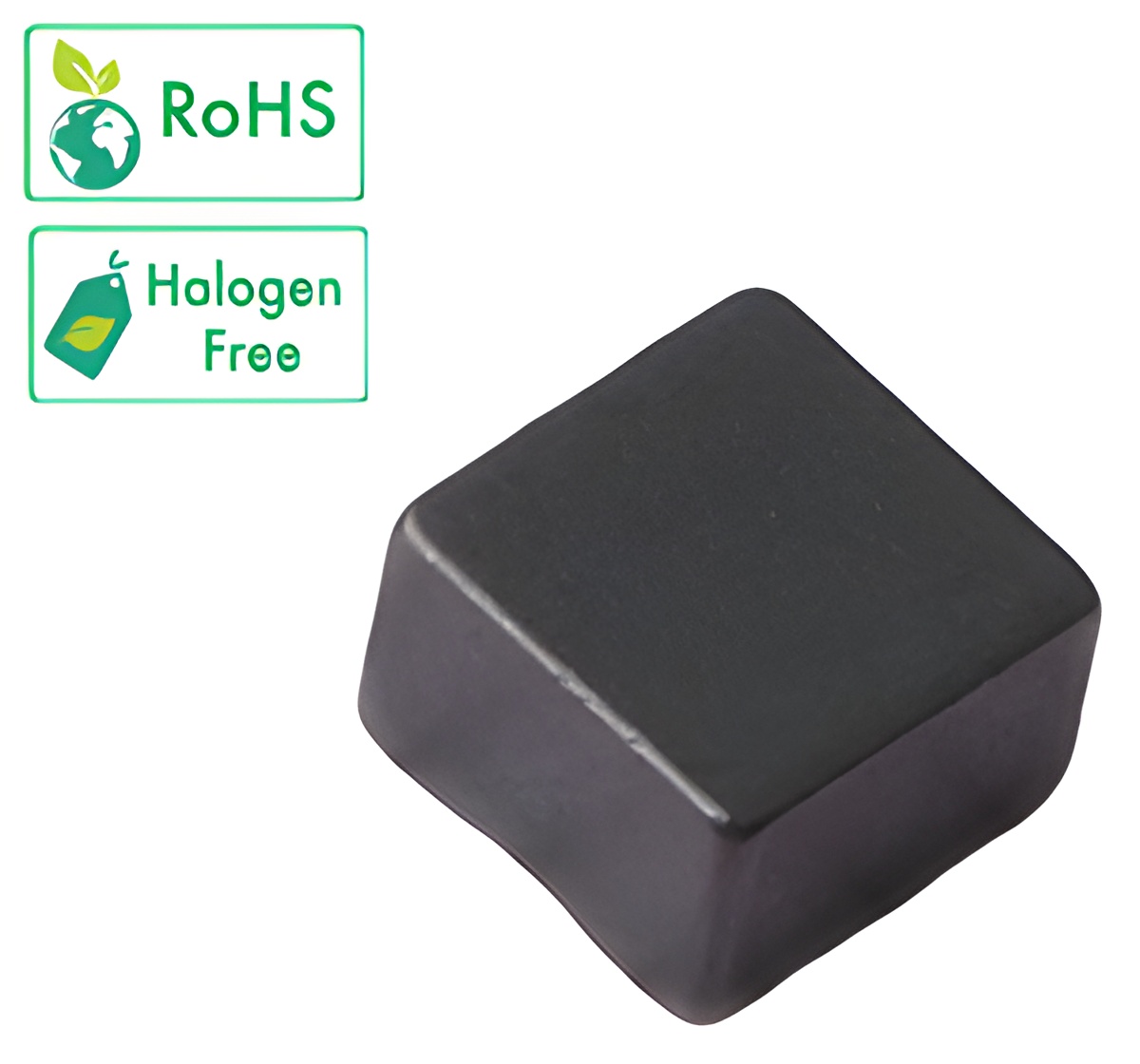

Russian SP16-303020 Type

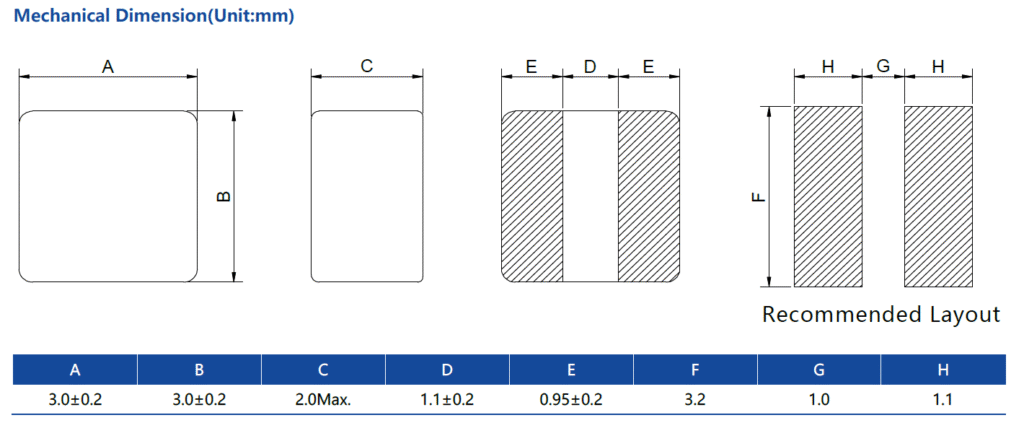

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-303020R15M | 0.15±20% | 4 | 5 | 18 | 17 | 13 | 12 |  |
| SP16-303020R33M | 0.33±20% | 7.5 | 9 | 16 | 15 | 10 | 9 | |
| SP16-303020R47M | 0.47±20% | 8 | 11 | 15 | 13.5 | 9 | 8 | |
| SP16-303020R50M | 0.50±20% | 9 | 12 | 14.5 | 13 | 9 | 8 | |
| SP16-303020R68M | 0.68±20% | 13 | 16 | 13 | 11 | 8.5 | 7.8 | |
| SP16-3030201R0M | 1.0±20% | 15 | 20 | 8 | 7.3 | 6.5 | 6 | |
| SP16-3030201R5M | 1.5±20% | 19 | 25 | 7 | 6.5 | 6.3 | 5.8 | |
| SP16-3030202R2M | 2.2±20% | 37 | 45 | 6 | 5.5 | 4.7 | 4.3 | |
| SP16-3030203R3M | 3.3±20% | 52 | 63 | 5.9 | 5.4 | 4.5 | 4 | |
| SP16-3030204R7M | 4.7±20% | 60 | 73 | 4.8 | 4 | 4.2 | 3.8 | |
| SP16-3030206R8M | 6.8±20% | 108 | 135 | 4.5 | 3.8 | 3.3 | 3 | |
| SP16-303020100M | 10±20% | 135 | 160 | 3.7 | 3.3 | 2.5 | 2.2 | |
| SP16-303020150M | 15±20% | 235 | 260 | 2.6 | 2.2 | 1.8 | 1.5 | |
