Russian STF1910H804M

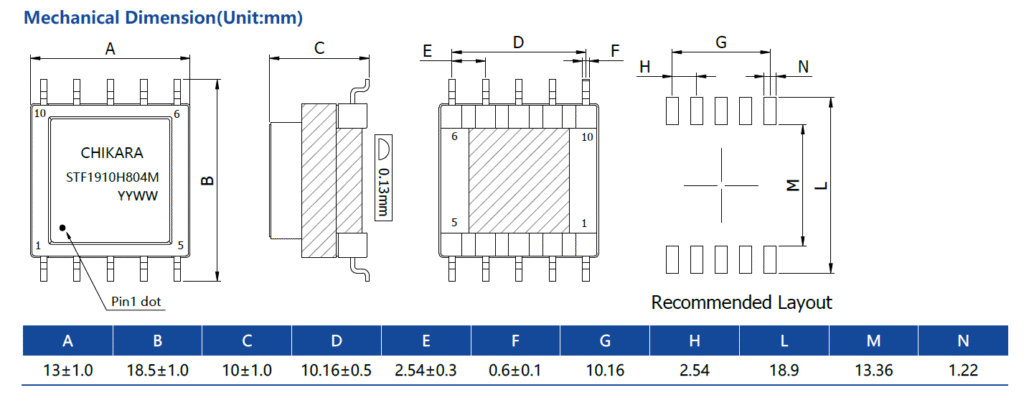

产品尺寸
产品参数
| Part Number | Item | Terminal | Specification | Test condition | Test instrument | ||
|---|---|---|---|---|---|---|---|
| (Start – Finish) | |||||||
| STF1910H804M | Inductance | (1-5)=(10-6) | 800mH±20% | 1KHz,0.3V | HP4284A |  | |
| STF1910H804M | Leakage Inductance | (1-5) at (10-6 shorted) | 1.2mH±10% | 1KHz,0.3V | HP4284A | | |
| STF1910H804M | Turns Ration | (1-3):(3-5):(10-8):(8-6) | 1:1:1:1 | 20KHz,0.1V | Chroma3302 | | |
| STF1910H804M | DC Resistance1 | (1-5) | 50Ω±10% | at 25℃ | Chroma16502 | | |
| STF1910H804M | DC Resistance2 | (10-6) | 62Ω±10% | at 25℃ | Chroma16502 | | |
| STF1910H804M | Insulation Test Voltage | (1-5) to (10-6) to Core | 500VAC | at 25℃ | Extech7142 | | |
