English SP06-060055 Type

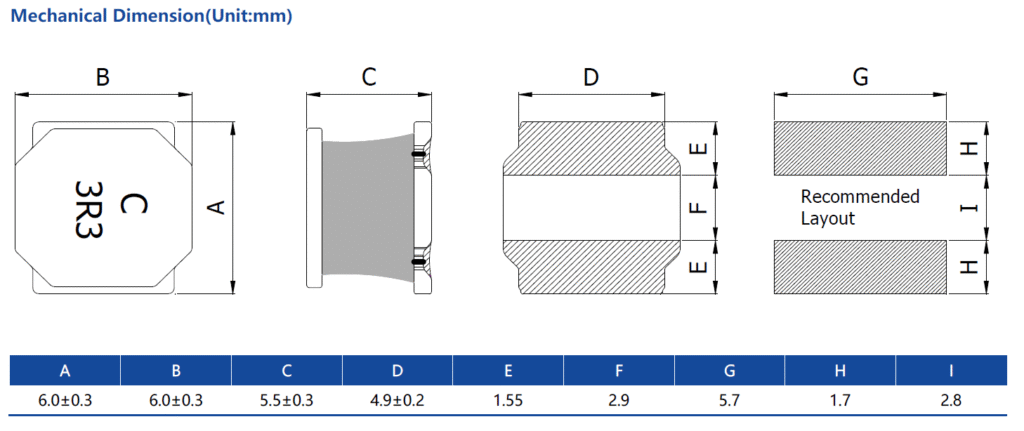

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | |
|---|---|---|---|---|---|---|
| (mΩ)Max. | （A）Typ. | (A)Max. | ||||
| SP06-0600553R3M | 3.3±20% | 26 | 6 | 4.6 | 32 |  |
| SP06-0600554R7M | 4.7±20% | 31 | 5 | 4.25 | 24 | |
| SP06-0600556R8M | 6.8±20% | 34 | 4.5 | 4.1 | 20 | |
| SP06-0600558R2M | 8.2±20% | 49 | 4.3 | 3.5 | 21 | |
| SP06-060055100M | 10±20% | 54 | 3.7 | 3.2 | 15 | |
| SP06-060055150M | 15±20% | 74 | 3.3 | 2.75 | 12 | |
| SP06-060055220M | 22±20% | 100 | 2.6 | 2.35 | 10 | |
| SP06-060055330M | 33±20% | 170 | 2 | 1.8 | 7.8 | |
| SP06-060055470M | 47±20% | 252 | 1.7 | 1.5 | 6.8 | |
| SP06-060055680M | 68±20% | 353 | 1.4 | 1.25 | 6.4 | |
| SP06-060055101M | 100±20% | 434 | 1.1 | 1.1 | 4.5 | |
| SP06-060055151M | 150±20% | 686 | 0.9 | 0.9 | 4.2 | |
| SP06-060055221M | 220±20% | 1036 | 0.74 | 0.72 | 3.5 | |
| SP06-060055331M | 330±20% | 1603 | 0.65 | 0.6 | 2.8 | |
