SP14-070024 Type
特点
■ 高储能，超低电阻
■ 储存温度范围:-55℃ to + 125℃
■ 工作温度范围:-55℃ to + 125℃
（含线圈自身温度上升）
■ 湿度敏感等级: 1
■ 符合RoHs和无卤素标准
Facebook
LinkedIn
相关文章
产品目录
搜索更多>>

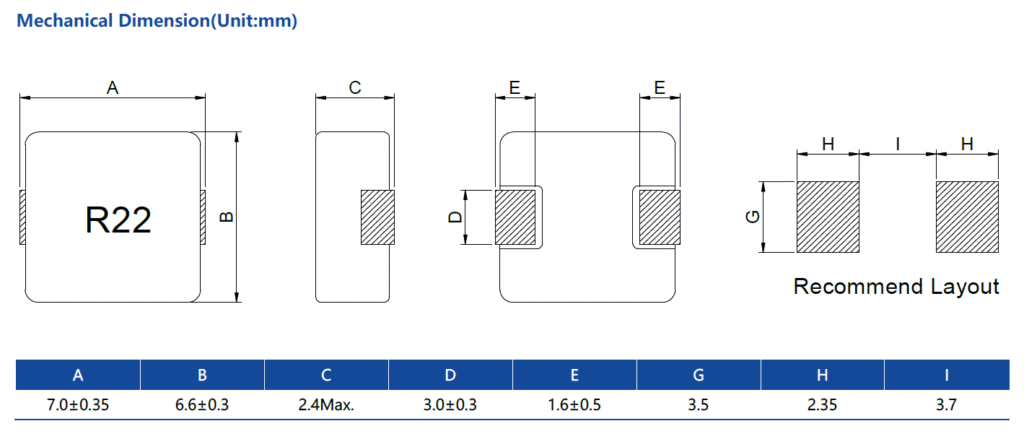

尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | |||||||
| SP14-070024R22M | 0.22±20% | 2.5 | 3 | 34 | 21 | 125 |  | |||
| SP14-070024R33M | 0.33±20% | 3.5 | 4.1 | 24.5 | 18 | 110 | | |||
| SP14-070024R47M | 0.47±20% | 4.5 | 5.1 | 22 | 15 | 88 | | |||
| SP14-070024R56M | 0.56±20% | 5.5 | 6.5 | 17 | 13 | 80 | | |||
| SP14-070024R68M | 0.68±20% | 6.2 | 7 | 16 | 12 | 72 | | |||
| SP14-0700241R0M | 1.0±20% | 11 | 13.5 | 15 | 9 | 65 | | |||
| SP14-0700241R5M | 1.5±20% | 17 | 20 | 13.5 | 8.5 | 59 | | |||
| SP14-0700242R2M | 2.2±20% | 23 | 28 | 11 | 7 | 48 | | |||
| SP14-0700243R3M | 3.3±20% | 31 | 39 | 8.5 | 5.5 | 34 | | |||
| SP14-0700244R7M | 4.7±20% | 41 | 50 | 7.5 | 5 | 30 | | |||
| SP14-0700246R8M | 6.8±20% | 57 | 70 | 6 | 4 | 27 | | |||
| SP14-070024100M | 10±20% | 92 | 101 | 4 | 3.1 | 21 | | |||
| SP14-070024150M | 15±20% | 145 | 160 | 3.3 | 2.5 | 16 | | |||
| SP14-070024220M | 22±20% | 220 | 240 | 2.5 | 2 | 12 | | |||
