English SP18-0703 Type

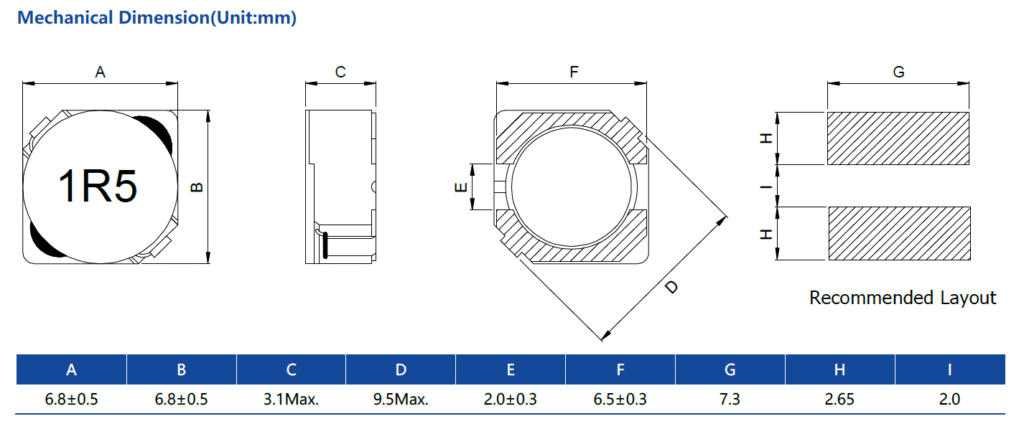

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|
| (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP18-07031R5N | 1.5±30% | 12 | 5.1 | 6.9 | 80 |  |
| SP18-07033R0N | 3.0±30% | 20 | 3.5 | 6 | 55 | |
| SP18-07033R9N | 3.9±30% | 23 | 3.2 | 5.7 | 45 | |
| SP18-07035R0M | 5.0±20% | 30 | 2.8 | 4.5 | 40 | |
| SP18-07036R0M | 6.0±20% | 33 | 2.6 | 4.6 | 38 | |
| SP18-07037R3M | 7.3±20% | 45 | 2.5 | 3.8 | 35 | |
| SP18-07038R6M | 8.6±20% | 48 | 2.2 | 3.4 | 33.5 | |
| SP18-0703100M | 10±20% | 52 | 1.9 | 3.2 | 30 | |
| SP18-0703120M | 12±20% | 66 | 1.7 | 2.8 | 26 | |
| SP18-0703150M | 15±20% | 75 | 1.6 | 2.7 | 24 | |
| SP18-0703180M | 18±20% | 88 | 1.4 | 2.6 | 22 | |
| SP18-0703220M | 22±20% | 113 | 1.3 | 2.2 | 21 | |
| SP18-0703270M | 27±20% | 132 | 1.2 | 2 | 17 | |
| SP18-0703330M | 33±20% | 150 | 1.1 | 1.9 | 16 | |
| SP18-0703390M | 39±20% | 180 | 0.96 | 1.6 | 14.5 | |
| SP18-0703470M | 47±20% | 215 | 0.89 | 1.6 | 12.5 | |
| SP18-0703560M | 56±20% | 270 | 0.8 | 1.4 | 11.5 | |
| SP18-0703680M | 68±20% | 300 | 0.74 | 1.2 | 10.5 | |
| SP18-0703820M | 82±20% | 370 | 0.67 | 1.2 | 9.5 | |
| SP18-0703101M | 100±20% | 495 | 0.61 | 1.1 | 8.5 | |
