English SP21-1003 Type

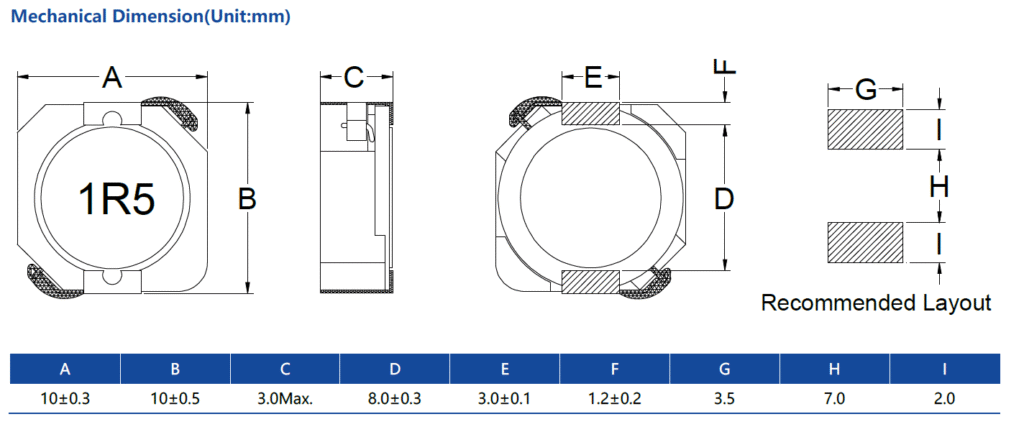

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP21-10031R5N | 1.5±30% | 13.7 | 16 | 9.5 | 6.2 | 75 |  |
| SP21-10032R2N | 2.2±30% | 16.8 | 20 | 8.5 | 5.1 | 71 | |
| SP21-10033R3N | 3.3±30% | 20.4 | 24 | 7.2 | 4.6 | 50 | |
| SP21-10034R7N | 4.7±30% | 26 | 31 | 6 | 4 | 42 | |
| SP21-10038R2N | 8.2±30% | 41 | 49 | 4.7 | 3 | 30 | |
| SP21-1003100M | 10±20% | 52 | 62 | 4.1 | 2.6 | 25 | |
| SP21-1003150M | 15±20% | 74 | 89 | 3.4 | 2.2 | 20 | |
| SP21-1003220M | 22±20% | 110 | 133 | 2.7 | 1.7 | 18 | |
| SP21-1003330M | 33±20% | 170 | 204 | 2.2 | 1.4 | 13 | |
| SP21-1003470M | 47±20% | 205 | 248 | 1.9 | 1.2 | 11.5 | |
| SP21-1003680M | 68±20% | 275 | 330 | 1.6 | 1.1 | 9.4 | |
| SP21-1003820M | 82±20% | 349 | 419 | 1.5 | 1 | 8.8 | |
| SP21-1003101M | 100±20% | 398 | 478 | 1.4 | 0.9 | 7.7 | |
| SP21-1003121M | 120±20% | 498 | 598 | 1.25 | 0.85 | 7 | |
| SP21-1003151M | 150±20% | 570 | 684 | 1.1 | 0.7 | 6.1 | |
| SP21-1003331K | 330±10% | 1230 | 1500 | 0.73 | 0.48 | 4.3 | |
| SP21-1003471K | 470±10% | 1850 | 2200 | 0.65 | 0.42 | 3.4 | |
| SP21-1003102K | 1000±10% | 4000 | 4600 | 0.45 | 0.3 | 2.3 | |
