SP03-0503 Type
Features
■ High energy storage and very low resistance
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

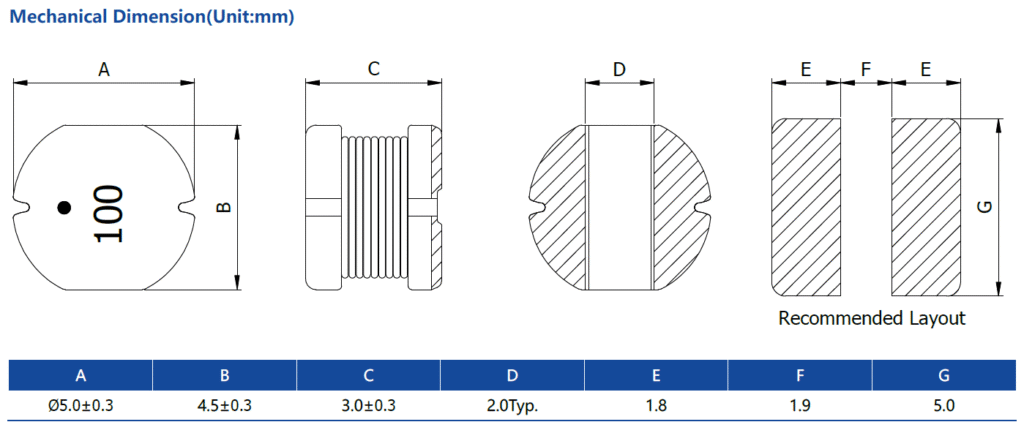

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | Q | Q | DCR | Isat | Irms | SRF (MHz)Typ. | |
|---|---|---|---|---|---|---|---|---|
| Typ. | Freq.(MHz) | (Ω)Max. | （A）Typ. | (A)Max. | ||||
| SP03-0503100M | 10±20% | 10 | 2.52 | 0.13 | 1.6 | 1.3 | 30 |  |
| SP03-0503120M | 12±20% | 20 | 2.52 | 0.16 | 1.45 | 1.2 | 29 | |
| SP03-0503150M | 15±20% | 20 | 2.52 | 0.19 | 1.26 | 1.05 | 27 | |
| SP03-0503180M | 18±20% | 20 | 2.52 | 0.21 | 1.3 | 0.95 | 24 | |
| SP03-0503220M | 22±20% | 20 | 2.52 | 0.28 | 1.06 | 0.9 | 22 | |
| SP03-0503330K | 33±10% | 15 | 2.52 | 0.38 | 0.85 | 0.7 | 18 | |
| SP03-050390K | 39±10% | 15 | 2.52 | 0.42 | 0.8 | 0.65 | 17 | |
| SP03-0503470K | 47±10% | 20 | 2.52 | 0.6 | 0.75 | 0.6 | 14 | |
| SP03-0503560K | 56±10% | 20 | 2.52 | 0.71 | 0.7 | 0.5 | 13 | |
| SP03-0503680K | 68±10% | 20 | 2.52 | 0.76 | 0.6 | 0.45 | 12 | |
| SP03-0503820K | 82±10% | 15 | 2.52 | 0.88 | 0.52 | 0.42 | 10 | |
| SP03-0503101K | 100±10% | 40 | 0.796 | 1.6 | 0.48 | 0.4 | 9 | |
| SP03-0503121K | 120±10% | 40 | 0.796 | 1.7 | 0.45 | 0.37 | 8 | |
| SP03-0503151K | 150±10% | 40 | 0.796 | 2 | 0.4 | 0.33 | 7 | |
| SP03-0503181K | 180±10% | 40 | 0.796 | 2.3 | 0.35 | 0.3 | 7 | |
| SP03-0503221K | 220±10% | 35 | 0.796 | 2.5 | 0.34 | 0.25 | 6 | |
| SP03-0503271K | 270±10% | 35 | 0.796 | 2.9 | 0.28 | 0.23 | 6 | |
| SP03-0503331K | 330±10% | 30 | 0.796 | 3.3 | 0.28 | 0.21 | 5 | |
| SP03-0503391K | 390±10% | 30 | 0.796 | 3.7 | 0.24 | 0.19 | 5 | |
| SP03-0503471K | 470±10% | 30 | 0.796 | 4.9 | 0.22 | 0.18 | 5 | |
| SP03-0503561K | 560±10% | 30 | 0.796 | 5.7 | 0.19 | 0.16 | 4 | |
| SP03-0503681K | 680±10% | 30 | 0.796 | 7.5 | 0.16 | 0.14 | 4 | |
| SP03-0503821K | 820±10% | 40 | 0.796 | 10 | 0.155 | 0.12 | 3 | |
| SP03-0503102K | 1000±10% | 40 | 0.252 | 11.5 | 0.135 | 0.11 | 3 | |
| SP03-0503122J | 1200±5% | 40 | 0.252 | 12 | 0.09 | 0.063 | 3 | |
| SP03-0503152J | 1500±5% | 40 | 0.252 | 13 | 0.072 | 0.059 | 2 | |
| SP03-0503182J | 1800±5% | 40 | 0.252 | 15 | 0.07 | 0.055 | 2 | |
| SP03-0503222J | 2200±5% | 40 | 0.252 | 22 | 0.07 | 0.053 | 2 | |
| SP03-0503272J | 2700±5% | 40 | 0.252 | 26 | 0.07 | 0.05 | 2 | |
| SP03-0503332J | 3300±5% | 40 | 0.252 | 38 | 0.062 | 0.045 | 2 | |
| SP03-0503392J | 3900±5% | 40 | 0.252 | 40 | 0.06 | 0.042 | 2 | |
| SP03-0503472J | 4700±5% | 40 | 0.252 | 48 | 0.05 | 0.04 | 1 | |
| SP03-0503502J | 5000±5% | 40 | 0.252 | 60 | 0.05 | 0.039 | 1 | |
| SP03-0503562J | 5600±5% | 40 | 0.252 | 72 | 0.05 | 0.038 | 1 | |
| SP03-0503682J | 6800±5% | 40 | 0.252 | 80 | 0.045 | 0.034 | 1 | |
| SP03-0503822J | 8200±5% | 40 | 0.252 | 92 | 0.045 | 0.03 | 1 | |
| SP03-0503103J | 10000±5% | 30 | 0.252 | 110 | 0.04 | 0.027 | 1 | |
| SP03-0503123J | 12000±5% | 30 | 0.252 | 148 | 0.038 | 0.025 | 1 | |
| SP03-0503153J | 15000±5% | 30 | 0.252 | 168 | 0.032 | 0.02 | 1 | |
