Russian SP03-0805 Type
SP03-0805 Type
Features
■ High energy storage and very low resistance
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

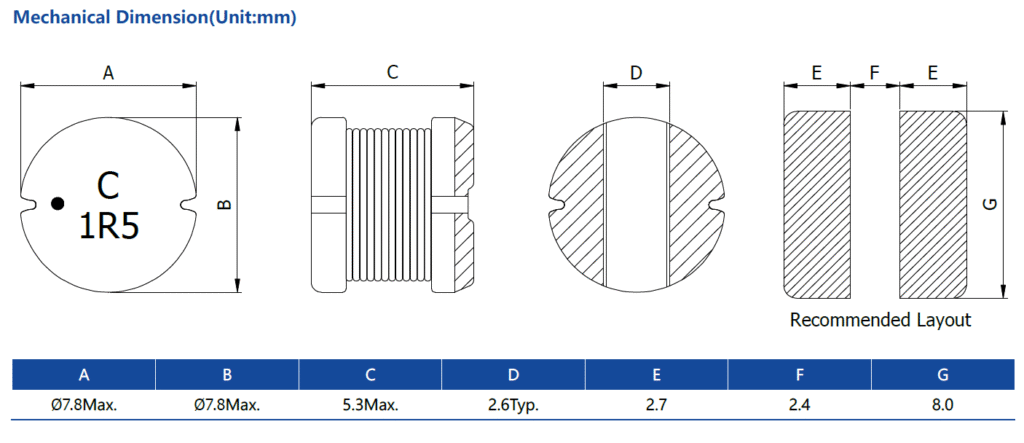

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | Q | Q | DCR | Isat | Irms | SRF (MHz)Typ. | |
|---|---|---|---|---|---|---|---|---|
| Typ. | Freq.(MHz) | (Ω)Max. | （A）Typ. | (A)Max. | ||||
| SP03-08051R5M | 1.5±20% | 32 | 7.96 | 0.02 | 9.1 | 6 | 120 |  |
| SP03-08052R5M | 2.5±20% | 32 | 7.96 | 0.02 | 7.2 | 5 | 70 | |
| SP03-08053R3M | 3.3±20% | 32 | 7.96 | 0.02 | 6.3 | 4.5 | 55 | |
| SP03-08053R9M | 3.9±20% | 32 | 7.96 | 0.02 | 5.7 | 4.4 | 45 | |
| SP03-08054R7M | 4.7±20% | 31 | 7.96 | 0.03 | 5 | 3.7 | 38 | |
| SP03-08055R6M | 5.6±20% | 31 | 7.96 | 0.04 | 4.6 | 3.5 | 34 | |
| SP03-08056R8M | 6.8±20% | 30 | 7.96 | 0.04 | 4.1 | 3.2 | 33 | |
| SP03-08057R5M | 7.5±20% | 29 | 7.96 | 0.05 | 3.7 | 2.8 | 30 | |
| SP03-08058R2M | 8.2±20% | 29 | 7.96 | 0.05 | 3.7 | 2.8 | 30 | |
| SP03-0805100M | 10±20% | 25 | 2.52 | 0.07 | 3.2 | 2.3 | 22 | |
| SP03-0805120M | 12±20% | 25 | 2.52 | 0.08 | 3 | 2 | 20 | |
| SP03-0805150M | 15±20% | 25 | 2.52 | 0.09 | 2.7 | 1.8 | 16 | |
| SP03-0805180M | 18±20% | 20 | 2.52 | 0.1 | 2.6 | 1.6 | 15 | |
| SP03-0805220M | 22±20% | 20 | 2.52 | 0.11 | 2.3 | 1.5 | 13 | |
| SP03-0805270M | 27±20% | 20 | 2.52 | 0.12 | 2.1 | 1.3 | 12 | |
| SP03-0805330K | 33±10% | 15 | 2.52 | 0.14 | 1.9 | 1.2 | 10 | |
| SP03-0805390K | 39±10% | 15 | 2.52 | 0.16 | 1.7 | 1.1 | 10 | |
| SP03-0805470K | 47±10% | 15 | 2.52 | 0.2 | 1.6 | 1 | 9 | |
| SP03-0805560K | 56±10% | 15 | 2.52 | 0.24 | 1.5 | 0.94 | 9 | |
| SP03-0805680K | 68±10% | 15 | 2.52 | 0.3 | 1.3 | 0.85 | 8 | |
| SP03-0805820K | 82±10% | 12 | 2.52 | 0.37 | 1.2 | 0.78 | 7 | |
| SP03-0805101K | 100±10% | 12 | 0.796 | 0.45 | 1.1 | 0.72 | 7 | |
| SP03-0805121K | 120±10% | 12 | 0.796 | 0.48 | 1 | 0.66 | 6 | |
| SP03-0805151K | 150±10% | 12 | 0.796 | 0.68 | 0.85 | 0.58 | 6 | |
| SP03-0805181K | 180±10% | 12 | 0.796 | 0.77 | 0.8 | 0.51 | 5 | |
| SP03-0805221K | 220±10% | 12 | 0.796 | 0.96 | 0.8 | 0.49 | 5 | |
| SP03-0805271K | 270±10% | 12 | 0.796 | 1.11 | 0.66 | 0.42 | 5 | |
| SP03-0805331K | 330±10% | 12 | 0.796 | 1.26 | 0.58 | 0.4 | 4 | |
| SP03-0805391K | 390±10% | 12 | 0.796 | 1.77 | 0.55 | 0.36 | 4 | |
| SP03-0805471K | 470±10% | 12 | 0.796 | 1.96 | 0.5 | 0.34 | 4 | |
| SP03-0805561K | 560±10% | 30 | 0.796 | 2.5 | 0.46 | 0.3 | 4 | |
| SP03-0805681K | 680±10% | 29 | 0.796 | 2.8 | 0.42 | 0.28 | 3 | |
| SP03-0805821K | 820±10% | 28 | 0.796 | 4 | 0.35 | 0.23 | 3 | |
| SP03-0805102K | 1000±10% | 27 | 0.252 | 4.5 | 0.34 | 0.21 | 3 | |
| SP03-0805122K | 1200±10% | 28 | 0.252 | 6.8 | 0.28 | 0.17 | 2 | |
| SP03-0805152K | 1500±10% | 27 | 0.252 | 8 | 0.26 | 0.15 | 2 | |
| SP03-0805222K | 2200±10% | 29 | 0.252 | 10 | 0.2 | 0.13 | 2 | |
| SP03-0805332K | 3300±10% | 28 | 0.252 | 16.5 | 0.17 | 0.1 | 1 | |
| SP03-0805472K | 4700±10% | 30 | 0.252 | 21 | 0.15 | 0.08 | 1 | |
