Russian SP03-1006 Type
SP03-1006 Type
Features
■ High energy storage and very low resistance
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

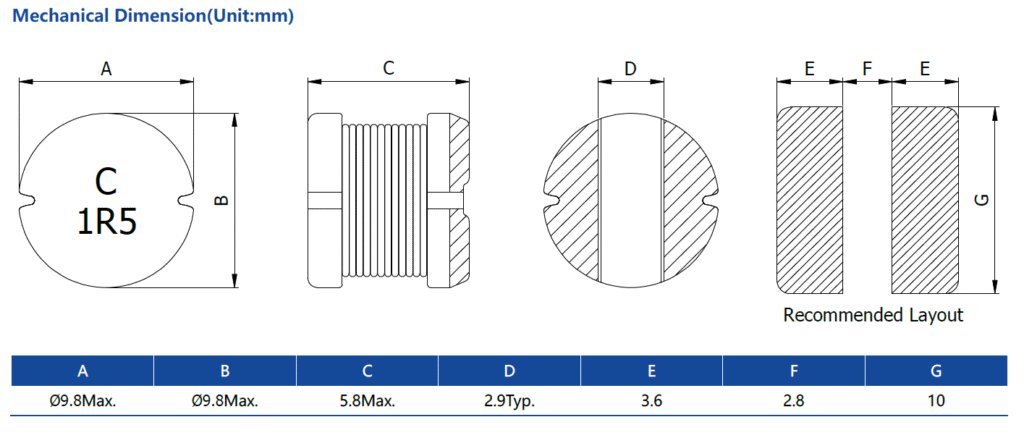

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | Q | Q | DCR | Isat | Irms | SRF (MHz)Typ. | |
|---|---|---|---|---|---|---|---|---|
| Typ. | Freq.(MHz) | (Ω)Max. | （A）Typ. | (A)Max. | ||||
| SP03-10061R5M | 1.5±20% | 35 | 7.96 | 0.018 | 13 | 6.4 | 105 |  |
| SP03-10062R2M | 2.2±20% | 35 | 7.96 | 0.021 | 11 | 6 | 68 | |
| SP03-10063R3M | 3.3±20% | 34 | 7.96 | 0.024 | 9.8 | 5.5 | 55 | |
| SP03-10063R9M | 3.9±20% | 34 | 7.96 | 0.027 | 8.6 | 4.9 | 48 | |
| SP03-10064R7M | 4.7±20% | 33 | 7.96 | 0.036 | 7.8 | 4.2 | 40 | |
| SP03-10065R6M | 5.6±20% | 33 | 7.96 | 0.04 | 7 | 4 | 35 | |
| SP03-10066R8M | 6.8±20% | 33 | 7.96 | 0.044 | 6.2 | 3.7 | 32 | |
| SP03-10068R2M | 8.2±20% | 31 | 7.96 | 0.048 | 6 | 3.5 | 24 | |
| SP03-1006100M | 10±20% | 30 | 2.52 | 0.06 | 5.4 | 3.2 | 21 | |
| SP03-1006120M | 12±20% | 30 | 2.52 | 0.07 | 4.7 | 3 | 20 | |
| SP03-1006150M | 15±20% | 30 | 2.52 | 0.08 | 4.4 | 2.7 | 16 | |
| SP03-1006180M | 18±20% | 30 | 2.52 | 0.09 | 4.1 | 2.6 | 15 | |
| SP03-1006220M | 22±20% | 25 | 2.52 | 0.1 | 3.6 | 2.5 | 13 | |
| SP03-1006270K | 27±10% | 25 | 2.52 | 0.11 | 3.3 | 2.44 | 11 | |
| SP03-1006330K | 33±10% | 25 | 2.52 | 0.12 | 3 | 2.3 | 10 | |
| SP03-1006390K | 39±10% | 20 | 2.52 | 0.14 | 2.7 | 2.2 | 9 | |
| SP03-1006470K | 47±10% | 20 | 2.52 | 0.17 | 2.5 | 2 | 8 | |
| SP03-1006560K | 56±10% | 20 | 2.52 | 0.19 | 2.3 | 1.9 | 7.5 | |
| SP03-1006680K | 68±10% | 15 | 2.52 | 0.22 | 2.1 | 1.8 | 7 | |
| SP03-1006820K | 82±10% | 15 | 2.52 | 0.25 | 2 | 1.7 | 6 | |
| SP03-1006101K | 100±10% | 15 | 0.796 | 0.35 | 1.7 | 1.4 | 5.2 | |
| SP03-1006121K | 120±10% | 15 | 0.796 | 0.4 | 1.6 | 1.3 | 5 | |
| SP03-1006151K | 150±10% | 15 | 0.796 | 0.47 | 1.4 | 1.2 | 4.5 | |
| SP03-1006181K | 180±10% | 12 | 0.796 | 0.63 | 1.3 | 1.1 | 4 | |
| SP03-1006221K | 220±10% | 12 | 0.796 | 0.73 | 1.2 | 1 | 3.8 | |
| SP03-1006271K | 270±10% | 12 | 0.796 | 0.97 | 1.1 | 0.9 | 3.5 | |
| SP03-1006331K | 330±10% | 12 | 0.796 | 1.15 | 0.95 | 0.8 | 3.2 | |
| SP03-1006391K | 390±10% | 12 | 0.796 | 1.3 | 0.85 | 0.75 | 3 | |
| SP03-1006471K | 470±10% | 12 | 0.796 | 1.48 | 0.8 | 0.7 | 2.5 | |
| SP03-1006561K | 560±10% | 12 | 0.796 | 1.9 | 0.75 | 0.65 | 2.3 | |
| SP03-1006681K | 680±10% | 12 | 0.796 | 2.25 | 0.7 | 0.6 | 2.1 | |
| SP03-1006821K | 820±10% | 10 | 0.796 | 2.55 | 0.62 | 0.5 | 2 | |
| SP03-1006102K | 1000±10% | 30 | 0.252 | 3.1 | 0.6 | 0.4 | 1.9 | |
| SP03-1006122K | 1200±10% | 31 | 0.252 | 4.2 | 0.54 | 0.35 | 1.8 | |
| SP03-1006152K | 1500±10% | 31 | 0.252 | 5 | 0.46 | 0.32 | 1.7 | |
| SP03-1006182K | 1800±10% | 31 | 0.252 | 6.8 | 0.4 | 0.28 | 1.6 | |
| SP03-1006222K | 2200±10% | 31 | 0.252 | 7.6 | 0.38 | 0.25 | 1.5 | |
| SP03-1006332K | 3300±10% | 32 | 0.252 | 13.5 | 0.3 | 0.2 | 1.3 | |
| SP03-1006472K | 4700±10% | 32 | 0.252 | 18 | 0.26 | 0.16 | 0.8 | |
