SP06-080050 Type
Features
■ Magnetic-resin shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

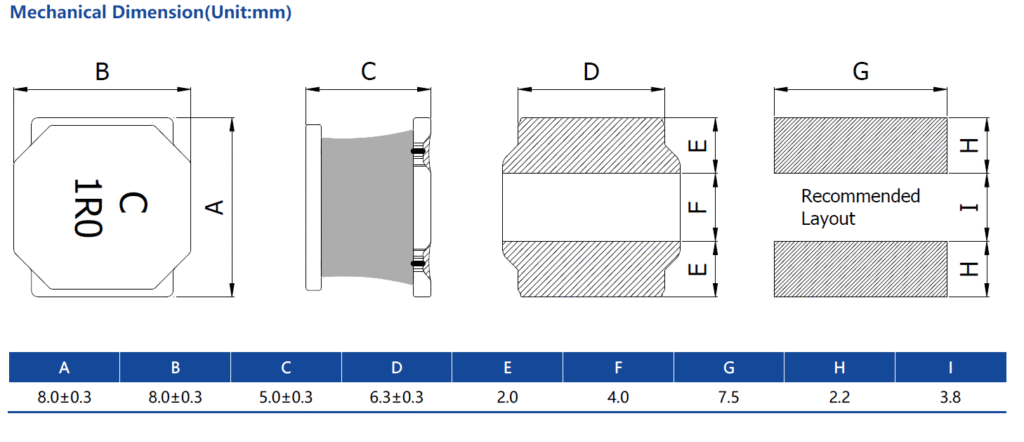

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | |
|---|---|---|---|---|---|---|
| (mΩ)Max. | （A）Typ. | (A)Typ. | ||||
| SP06-0800501R0M | 1.0±20% | 10 | 16 | 7.2 | 99 |  |
| SP06-0800501R5M | 1.5±20% | 12 | 13 | 6.5 | 79 | |
| SP06-0800502R2M | 2.2±20% | 14 | 11 | 5.8 | 59 | |
| SP06-0800503R3M | 3.3±20% | 20 | 9 | 4.9 | 24 | |
| SP06-0800504R7M | 4.7±20% | 23 | 7.5 | 4.6 | 23 | |
| SP06-0800506R8M | 6.8±20% | 29 | 6.1 | 4.2 | 19 | |
| SP06-0800508R2M | 8.2±20% | 35 | 5.6 | 3.8 | 18 | |
| SP06-080050100M | 10±20% | 38 | 5.2 | 3.6 | 14 | |
| SP06-080050150M | 15±20% | 61 | 4.5 | 2.7 | 13 | |
| SP06-080050220M | 22±20% | 88 | 3.5 | 2.2 | 9 | |
| SP06-080050330M | 33±20% | 122 | 3 | 2 | 7.6 | |
| SP06-080050470M | 47±20% | 173 | 2.4 | 1.7 | 6.6 | |
| SP06-080050680M | 68±20% | 252 | 2 | 1.45 | 5.4 | |
| SP06-080050101M | 100±20% | 326 | 1.6 | 1.25 | 4.4 | |
| SP06-080050151M | 150±20% | 480 | 1.4 | 1 | 3.2 | |
| SP06-080050221M | 220±20% | 708 | 1.1 | 0.75 | 2.9 | |
| SP06-080050331M | 330±20% | 1044 | 0.9 | 0.65 | 2.3 | |
| SP06-080050471M | 470±20% | 1540 | 0.8 | 0.55 | 1.9 | |
