Russian SP07-030020 Type

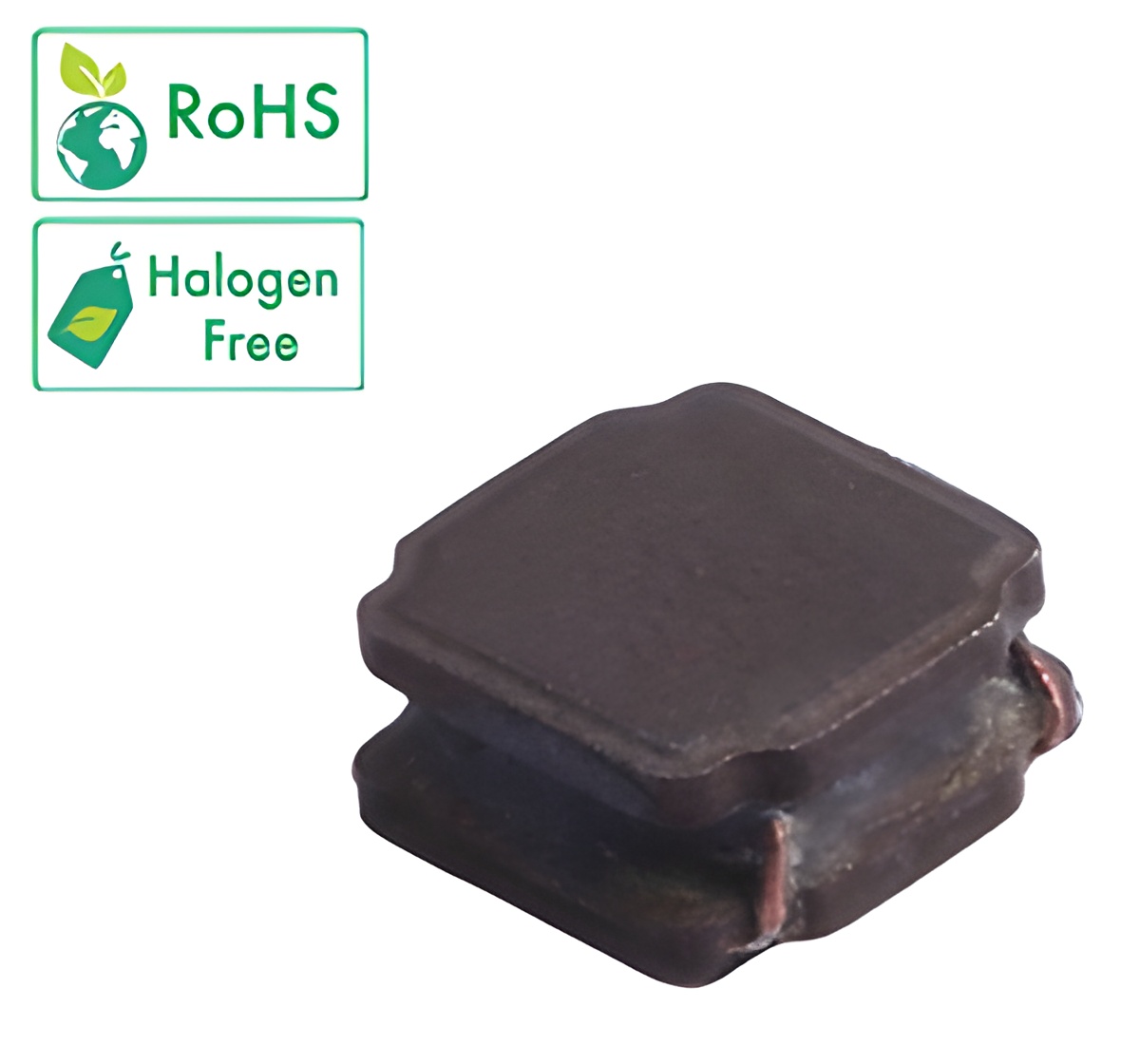

SP07-030020 Type
Features
■ Magnetic-resin shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

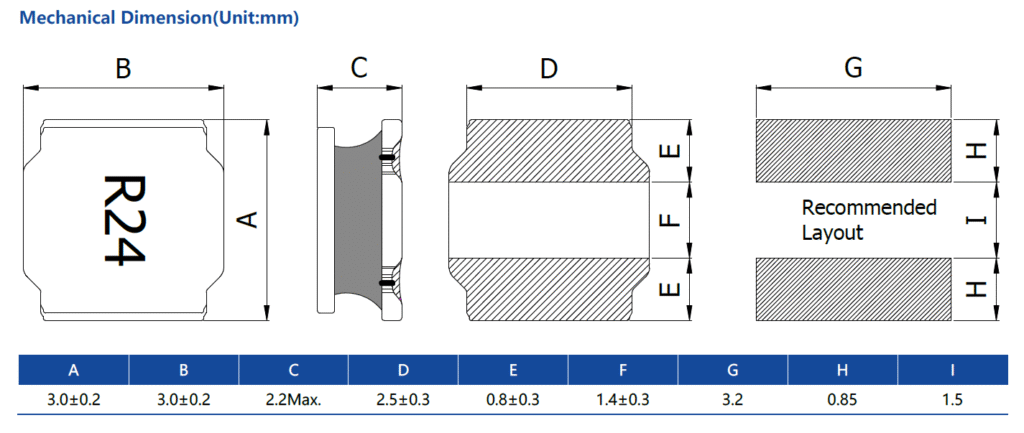

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Max. | (mΩ)Typ. | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | |||
| 0.24±20% | 20 | 16 | 12.5 | 14.5 | 6 | 7.1 |  | |
| SP07-030020R33M | 0.33±20% | 25 | 19 | 12 | 13.5 | 5.5 | 6.8 | |
| SP07-030020R47M | 0.47±20% | 25 | 19 | 11 | 12.5 | 5.8 | 6.5 | |
| SP07-030020R68M | 0.68±20% | 42 | 32 | 10 | 11 | 5 | 5.8 | |
| SP07-0300201R0M | 1.0±20% | 45 | 36 | 8 | 10 | 4.5 | 5.2 | |
| SP07-0300201R2M | 1.2±20% | 53 | 41 | 7.5 | 9.5 | 3.8 | 4.5 | |
| SP07-0300202R2M | 2.2±20% | 88.5 | 68 | 5.3 | 6 | 2.5 | 3 | |
| SP07-0300203R3M | 3.3±20% | 128 | 99 | 4.6 | 5.5 | 2.3 | 2.8 | |
| SP07-0300204R7M | 4.7±20% | 152 | 118 | 4 | 5 | 2.2 | 2.6 | |
| SP07-030020100M | 10±20% | 403 | 310 | 2.3 | 3 | 1.5 | 1.9 | |
