Russian SP07-040020 Type
SP07-040020 Type
Features
■ Magnetic-resin shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

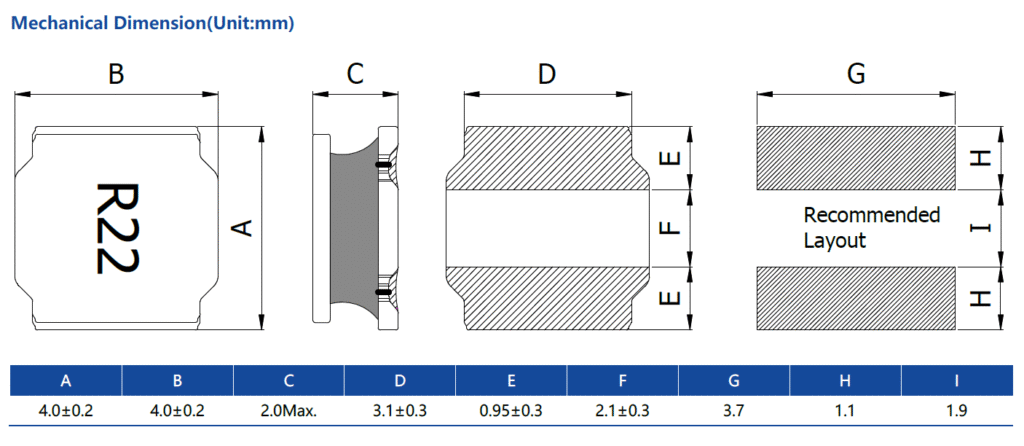

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |||
|---|---|---|---|---|---|---|---|---|
| (Ω)±30% | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | ||||
| SP07-040020R22M | 0.22±20% | 0.011 | 18.7 | 22 | 8.2 | 9.5 | 108 |  |
| SP07-040020R47M | 0.47±20% | 0.018 | 13.4 | 15.5 | 6.4 | 7.4 | 72 | |
| SP07-040020R68M | 0.68±20% | 0.018 | 8.7 | 11.1 | 6.4 | 7.4 | 57 | |
| SP07-0400201R0M | 1.0±20% | 0.022 | 8.7 | 11.1 | 5.8 | 6.7 | 37 | |
| SP07-0400201R5M | 1.5±20% | 0.03 | 7.7 | 9.6 | 5.2 | 6 | 30 | |
| SP07-0400202R2M | 2.2±20% | 0.04 | 6.1 | 7.6 | 4.3 | 5 | 25 | |
| SP07-0400203R3M | 3.3±20% | 0.06 | 4.7 | 5.9 | 3.45 | 4 | 19 | |
| SP07-0400204R7M | 4.7±20% | 0.09 | 4 | 4.9 | 2.85 | 3.3 | 17 | |
| SP07-0400206R8M | 6.8±20% | 0.13 | 3 | 4.2 | 2.4 | 2.8 | 13 | |
| SP07-040020100M | 10±20% | 0.18 | 2.8 | 3.5 | 2 | 2.35 | 11 | |
| SP07-040020120M | 12±20% | 0.22 | 2.3 | 3.2 | 1.5 | 1.9 | 10 | |
| SP07-040020150M | 15±20% | 0.305 | 2.1 | 2.8 | 1 | 1.2 | 9 | |
| SP07-040020220M | 22±20% | 0.415 | 1.3 | 1.5 | 0.95 | 1.1 | 8 | |
| SP07-040020330M | 33±20% | 0.65 | 1.2 | 1.4 | 0.7 | 0.86 | 7 | |
| SP07-040020470M | 47±20% | 0.95 | 1.1 | 1.3 | 0.56 | 0.66 | 5.5 | |
