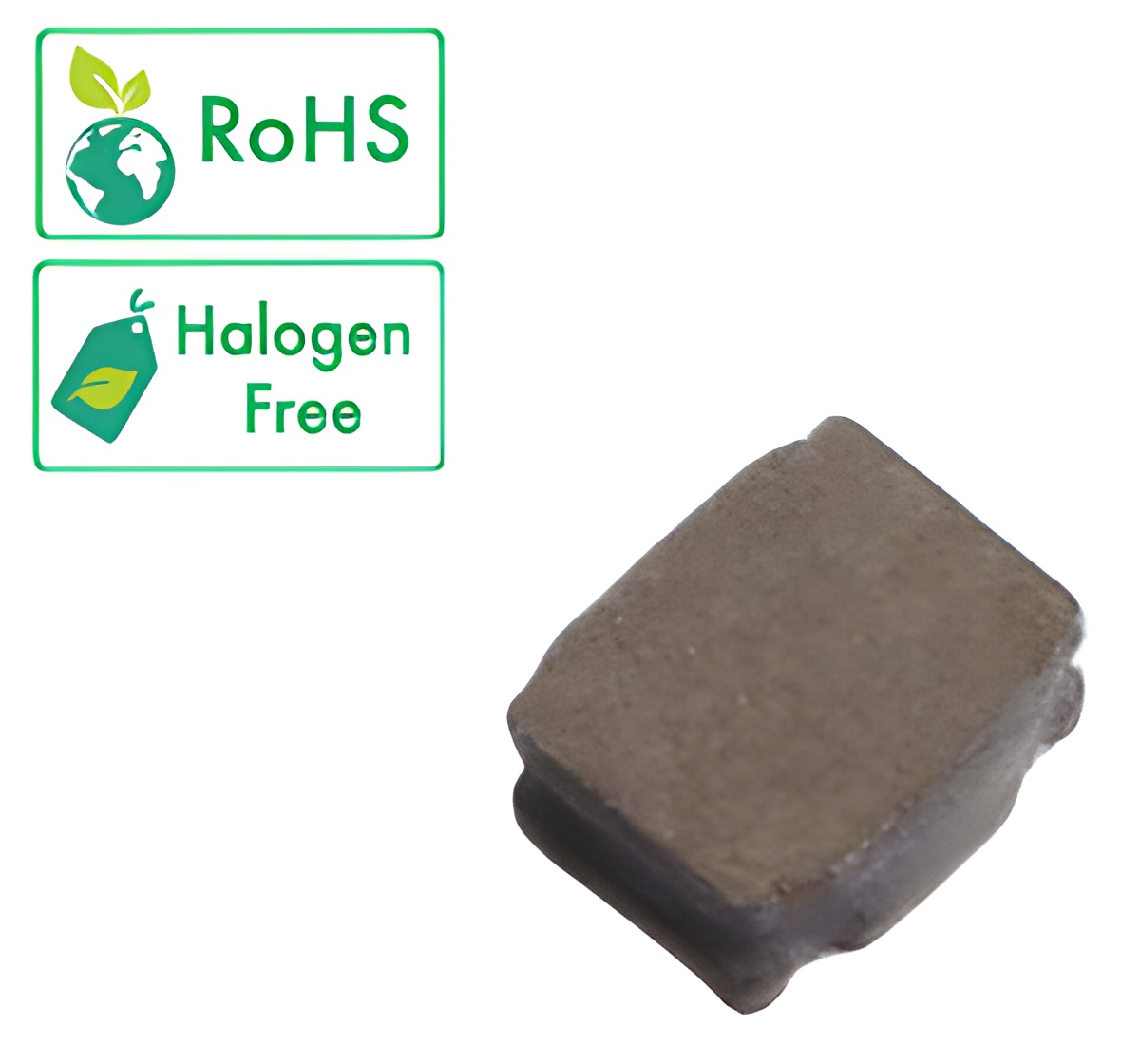

SP07-201610 Type
Features
■ Magnetic-resin shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

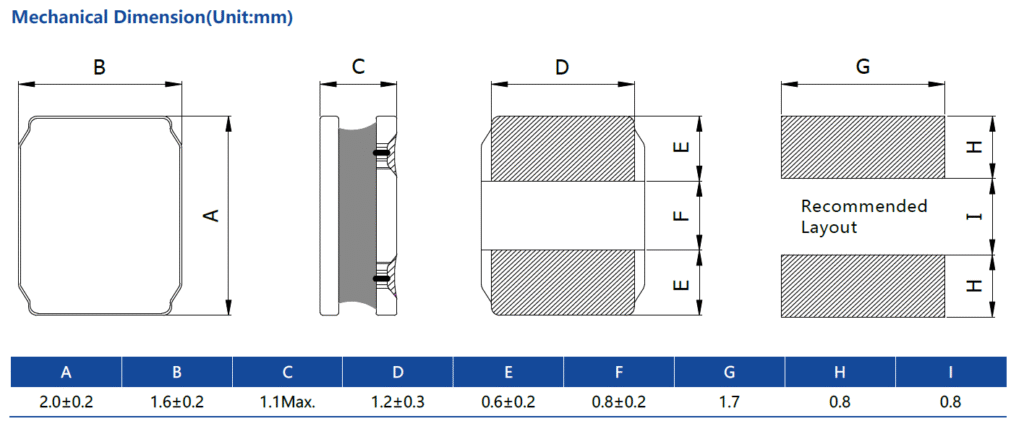

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Max. | (mΩ)Typ. | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | |||
| SP07-201610R24M | 0.24±20% | 40 | 33 | 4.5 | 5.5 | 3 | 3.45 |  |
| SP07-201610R33M | 0.33±20% | 49 | 41 | 4.4 | 5.2 | 2.7 | 3.1 | |
| SP07-201610R47M | 0.47±20% | 49 | 41 | 4.06 | 4.7 | 2.7 | 3.1 | |
| SP07-201610R56M | 0.56±20% | 53 | 43 | 3.8 | 4.5 | 2.6 | 2.8 | |
| SP07-201610R68M | 0.68±20% | 65 | 57 | 3.5 | 4 | 2.5 | 2.7 | |
| SP07-2016101R0M | 1.0±20% | 95 | 78 | 3.3 | 3.85 | 2 | 2.3 | |
| SP07-2016101R5M | 1.5±20% | 130 | 110 | 1.95 | 2.3 | 1.7 | 2 | |
| SP07-2016102R2M | 2.2±20% | 180 | 160 | 1.9 | 2.15 | 1.4 | 1.6 | |
| SP07-2016103R3M | 3.3±20% | 307 | 245 | 1.4 | 1.6 | 1.1 | 1.3 | |
| SP07-2016104R7M | 4.7±20% | 425 | 370 | 1.1 | 1.4 | 0.9 | 1 | |
| SP07-2016106R8M | 6.8±20% | 620 | 500 | 0.95 | 1.15 | 0.7 | 0.82 | |
| SP07-2016108R2M | 8.2±20% | 870 | 670 | 0.86 | 1 | 0.66 | 0.76 | |
| SP07-201610100M | 10±20% | 875 | 700 | 0.8 | 0.95 | 0.6 | 0.7 | |
| SP07-201610150M | 15±20% | 1700 | 1300 | 0.69 | 0.76 | 0.36 | 0.42 | |
