Russian SP07-252012 Type

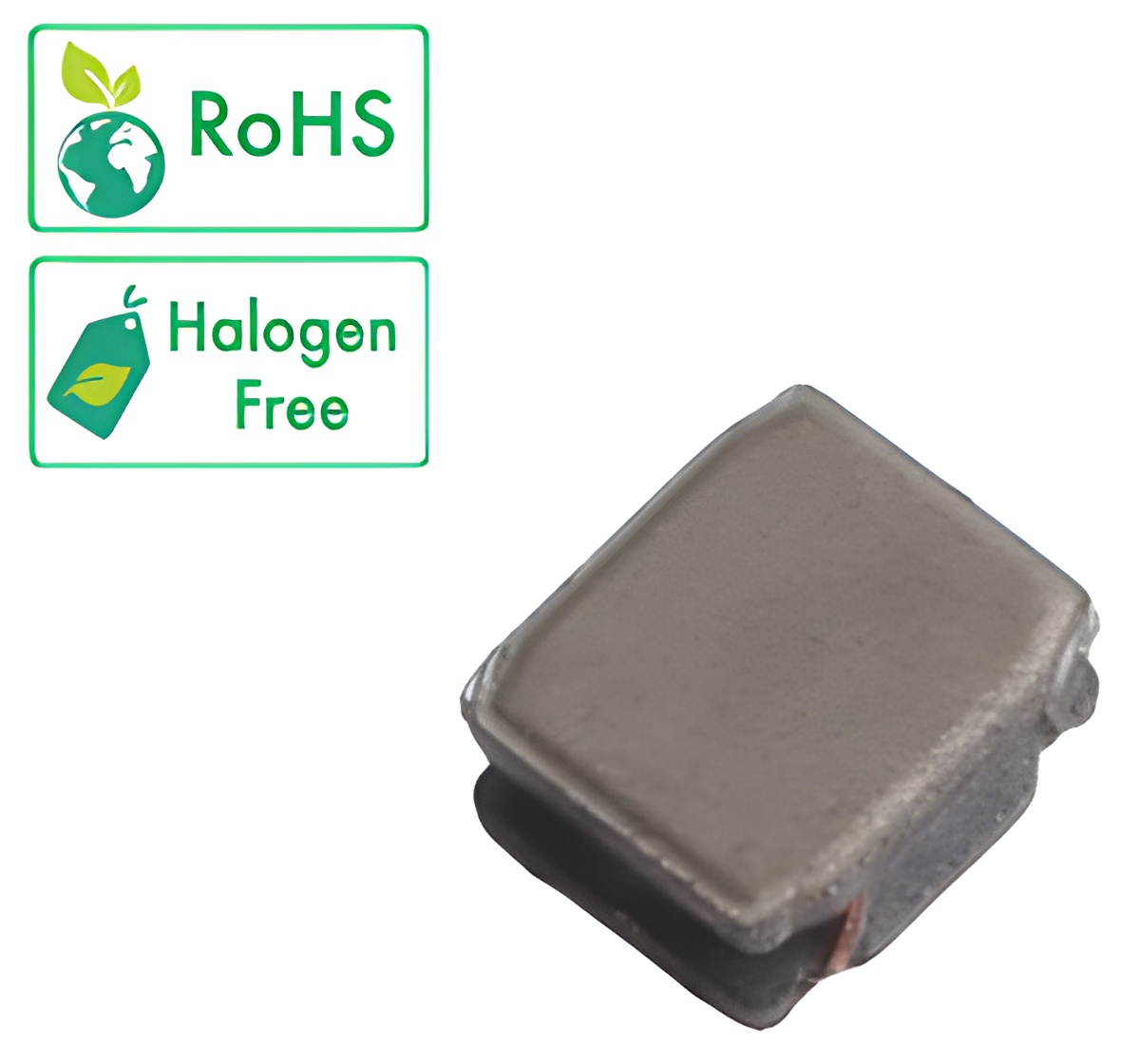

SP07-252012 Type
Features
■ Magnetic-resin shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

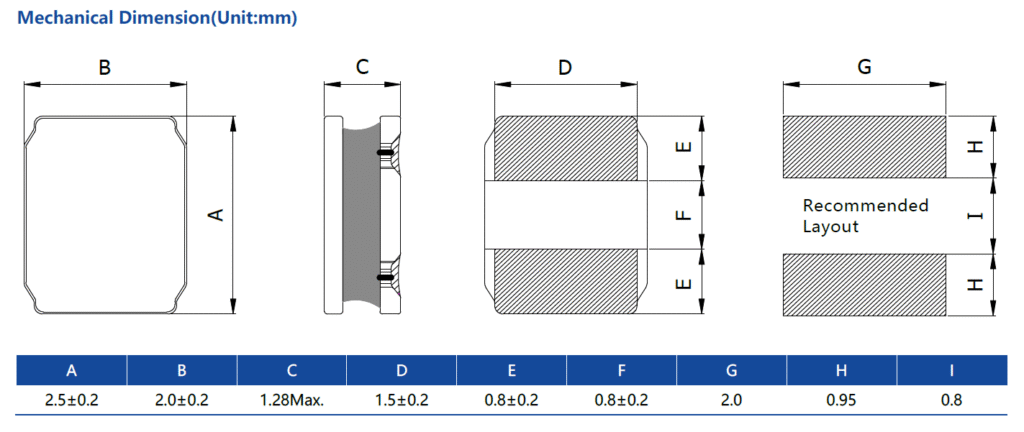

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Max. | (mΩ)Typ. | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | |||
| SP07-252012R24M | 0.24±20% | 24 | 19 | 6.5 | 7.8 | 4.1 | 4.7 |  |
| SP07-252012R33M | 0.33±20% | 28 | 23 | 5.4 | 6.3 | 3.7 | 4.3 | |
| SP07-252012R47M | 0.47±20% | 35 | 29 | 4.9 | 5.6 | 3.45 | 4 | |
| SP07-252012R68M | 0.68±20% | 46 | 39 | 3.8 | 4.5 | 3.2 | 3.6 | |
| SP07-2520121R0M | 1.0±20% | 54 | 48 | 3.6 | 4.2 | 3 | 3.4 | |
| SP07-2520121R5M | 1.5±20% | 78 | 60 | 2.9 | 3.5 | 2.4 | 2.8 | |
| SP07-2520122R2M | 2.2±20% | 120 | 100 | 2.6 | 3 | 1.9 | 2.15 | |
| SP07-2520123R3M | 3.3±20% | 215 | 175 | 1.7 | 2.1 | 1.5 | 1.8 | |
| SP07-2520124R7M | 4.7±20% | 260 | 225 | 1.6 | 1.9 | 1.25 | 1.4 | |
| SP07-2520126R8M | 6.8±20% | 368 | 305 | 1.2 | 1.4 | 0.97 | 1.1 | |
| SP07-252012100M | 10±20% | 480 | 435 | 1.1 | 1.3 | 0.85 | 1 | |
