Vietnamese SP12-1508 Type

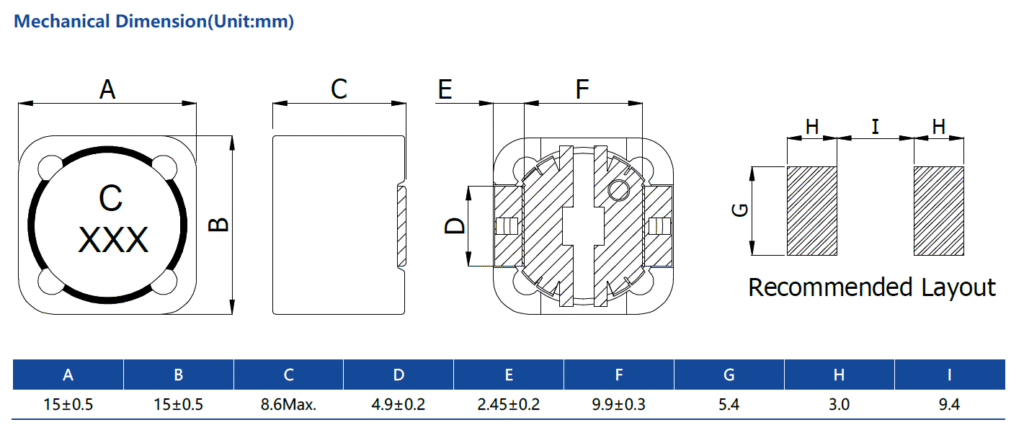

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Typ. | ||||
| SP12-1508100M | 10±20% | 0.012 | 0.015 | 14.7 | 7.4 | 17 |  |
| SP12-1508120M | 12±20% | 0.014 | 0.017 | 14.2 | 6.3 | 14.5 | |
| SP12-1508150M | 15±20% | 0.018 | 0.021 | 12.4 | 6.1 | 13.5 | |
| SP12-1508180M | 18±20% | 0.02 | 0.023 | 11.2 | 5.5 | 12 | |
| SP12-1508220M | 22±20% | 0.023 | 0.026 | 10.4 | 5.3 | 10.5 | |
| SP12-1508330M | 33±20% | 0.033 | 0.038 | 8.6 | 4.8 | 8.5 | |
| SP12-1508470M | 47±20% | 0.048 | 0.055 | 7.3 | 3.7 | 7.3 | |
| SP12-1508680M | 68±20% | 0.061 | 0.07 | 6 | 3.4 | 6 | |
| SP12-1508101K | 100±10% | 0.09 | 0.103 | 4.8 | 2.8 | 4.8 | |
| SP12-1508151K | 150±10% | 0.138 | 0.159 | 3.9 | 2.2 | 3.7 | |
| SP12-1508221K | 220±10% | 0.205 | 0.235 | 3.3 | 1.8 | 3 | |
| SP12-1508331K | 330±10% | 0.3 | 0.345 | 2.5 | 1.45 | 2.7 | |
| SP12-1508471K | 470±10% | 0.386 | 0.445 | 2.2 | 1.35 | 2.2 | |
| SP12-1508681K | 680±10% | 0.57 | 0.655 | 1.8 | 1.1 | 1.8 | |
| SP12-1508821K | 820±10% | 0.64 | 0.736 | 1.6 | 1 | 1.6 | |
| SP12-1508102K | 1000±10% | 0.86 | 0.99 | 1.4 | 0.86 | 1.5 | |
