Russian SP12-1514 Type

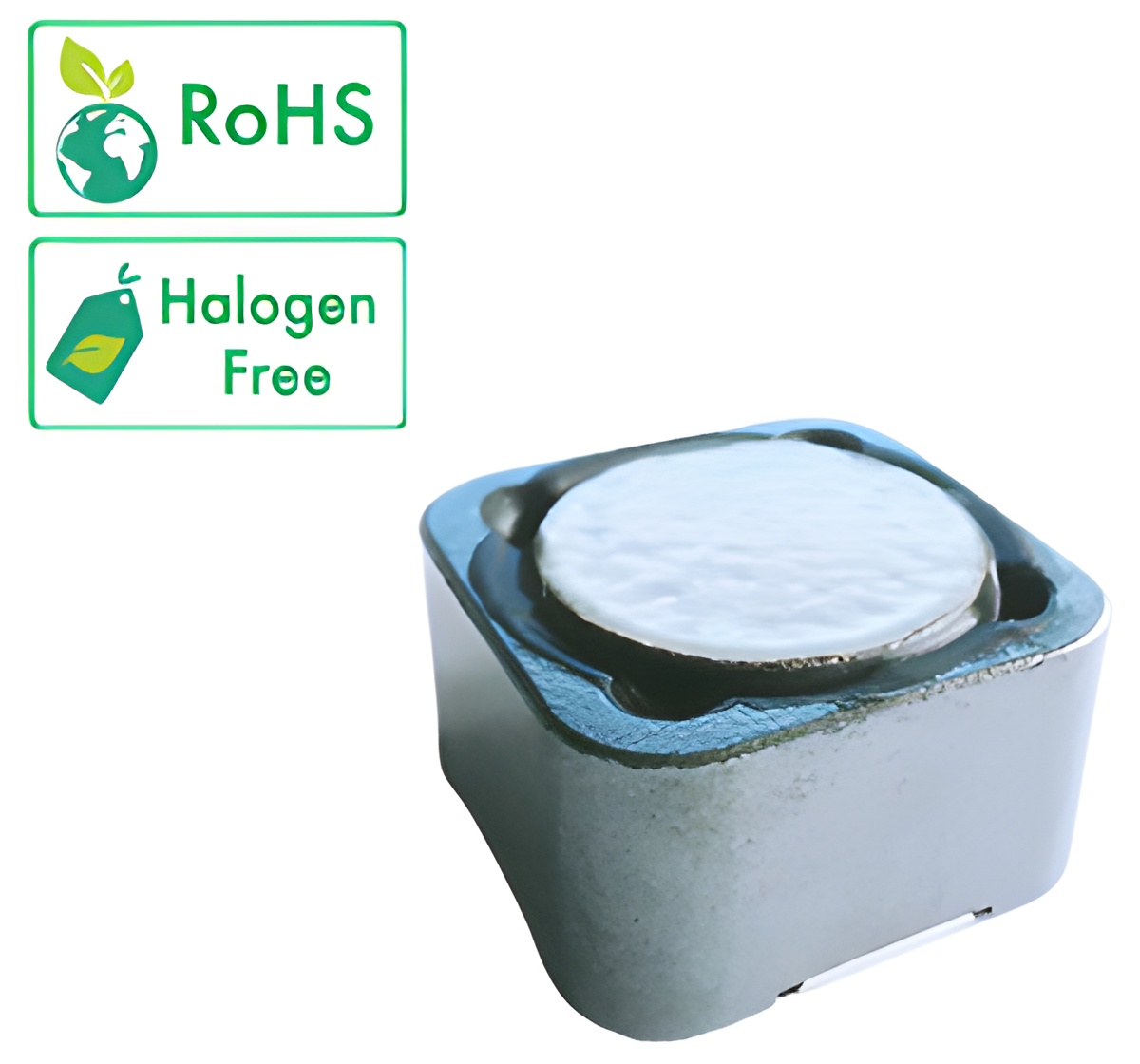

SP12-1514 Type
Features
■ Magnetically shielded construction
■ Storage temperature range:-40℃ to +125℃
■ Operating temperature range:-40℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

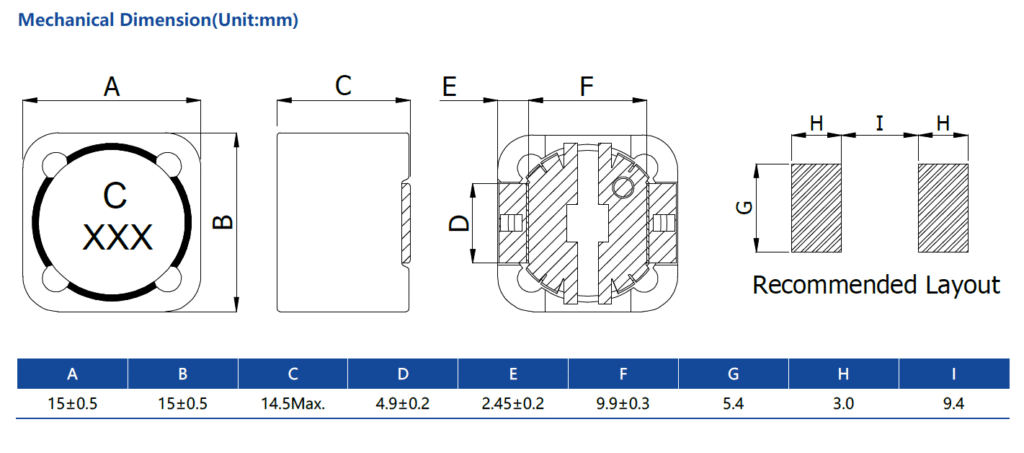

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Typ. | ||||
| SP12-15142R5M | 2.5±20% | 0.005 | 0.007 | 30.5 | 9.4 | 34 |  |
| SP12-15144R7M | 4.7±20% | 0.006 | 0.008 | 23.7 | 8.8 | 25 | |
| SP12-1514100M | 10±20% | 0.007 | 0.009 | 16.2 | 8.3 | 16.5 | |
| SP12-1514120M | 12±20% | 0.009 | 0.12 | 14.8 | 7.2 | 14.5 | |
| SP12-1514150M | 15±20% | 0.012 | 0.015 | 13.3 | 6.5 | 11 | |
| SP12-1514220M | 22±20% | 0.015 | 0.018 | 11 | 5.9 | 10 | |
| SP12-1514270M | 27±20% | 0.017 | 0.022 | 9.9 | 5.3 | 8.5 | |
| SP12-1514330M | 33±20% | 0.022 | 0.026 | 9 | 4.9 | 7.2 | |
| SP12-1514470M | 47±20% | 0.032 | 0.038 | 7.5 | 3.9 | 5.6 | |
| SP12-1514680M | 68±20% | 0.039 | 0.045 | 6.2 | 3.7 | 5.2 | |
| SP12-1514101K | 100±10% | 0.058 | 0.064 | 5.15 | 3.1 | 3.8 | |
| SP12-1514221K | 220±10% | 0.13 | 0.152 | 3.5 | 2.2 | 2.3 | |
| SP12-1514331K | 330±10% | 0.67 | 0.185 | 2.83 | 1.85 | 2.1 | |
| SP12-1514471K | 470±10% | 0.25 | 0.275 | 2.4 | 1.7 | 1.65 | |
| SP12-1514102K | 1000±10% | 0.56 | 0.655 | 1.63 | 0.8 | 1.1 | |
