Russian SP14-070018 Type
SP14-070018 Type
Features
■ High energy storage and very low resistance
■ Storage temperature range:-55℃ to +125℃
■ Operating temperature range:-55℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

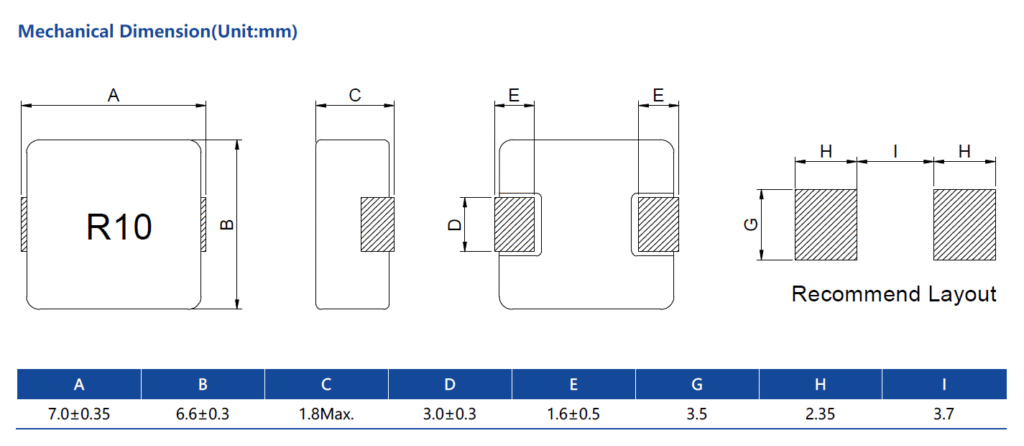

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP14-070018R10M | 0.10±20% | 2.5 | 3.5 | 30 | 18 | 130 |  |
| SP14-070018R22M | 0.22±20% | 4.5 | 5.7 | 25 | 14 | 110 | |
| SP14-070018R33M | 0.33±20% | 5.8 | 7 | 20 | 12 | 98 | |
| SP14-070018R47M | 0.47±20% | 7.5 | 8.4 | 18 | 11.5 | 85 | |
| SP14-070018R68M | 0.68±20% | 9 | 12 | 16.5 | 9.5 | 80 | |
| SP14-0700181R0M | 1.0±20% | 14 | 16 | 12 | 8.5 | 70 | |
| SP14-0700181R5M | 1.5±20% | 22 | 26 | 9.2 | 8 | 52 | |
| SP14-0700182R2M | 2.2±20% | 30 | 35 | 8 | 7 | 47 | |
| SP14-0700183R3M | 3.3±20% | 45 | 50 | 7 | 5.5 | 40 | |
| SP14-0700184R7M | 4.7±20% | 55 | 62 | 5 | 4 | 30 | |
| SP14-0700186R8M | 6.8±20% | 86 | 110 | 4 | 3 | 22 | |
| SP14-070018100M | 10±20% | 140 | 155 | 2.5 | 2.3 | 15 | |
